OPERATING PROCEDURES
Model 736
Operating Procedures
6

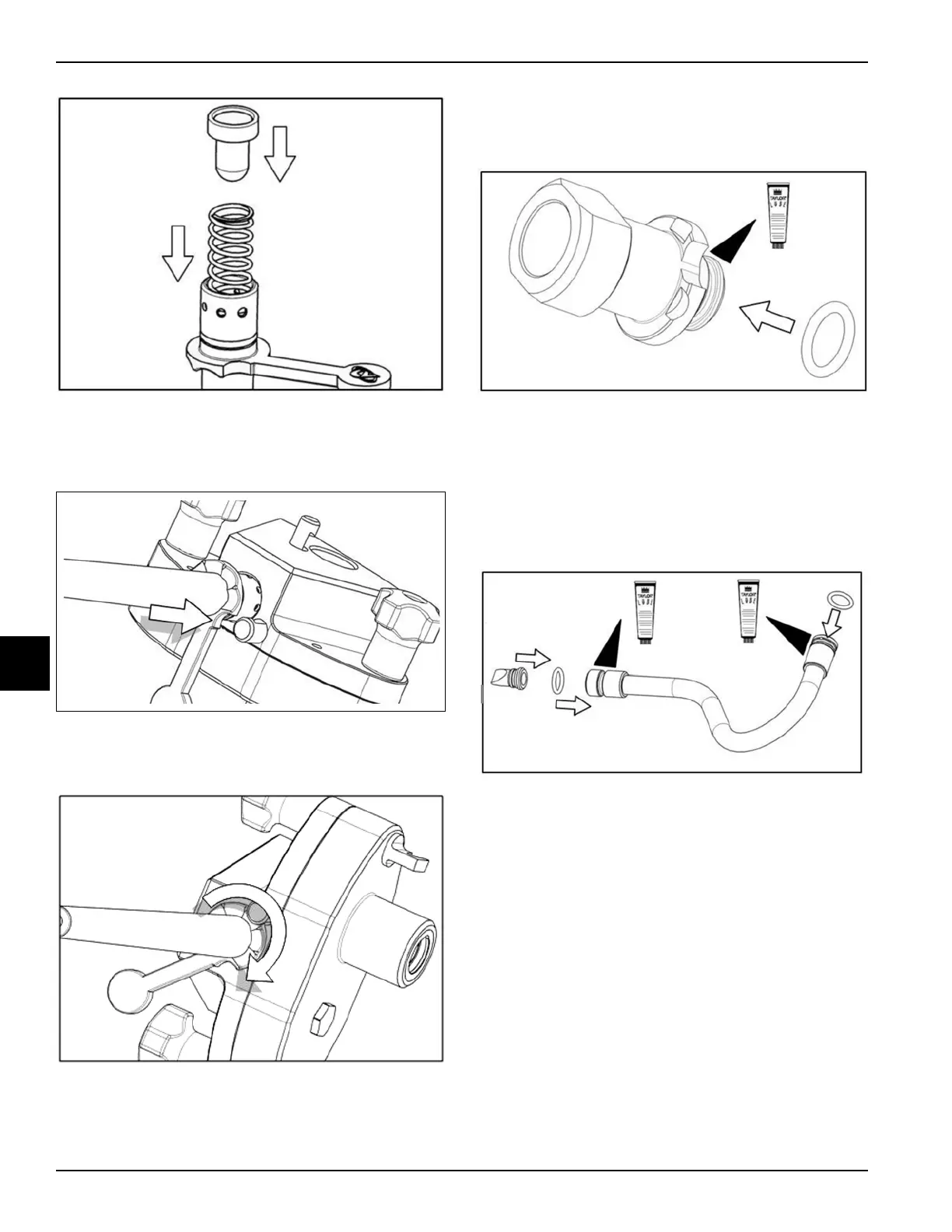

Figure 6-24
10. Insert the liquid regulator into the hole located on the
bottom of the pump cover, aligning the notch with the
retaining pin. Rotate to lock in place.
Figure 6-25
11. The regulator can be adjusted to six available
positions to achieve the desired overrun.
Figure 6-26
Feed Tube Assembly
1. Slide one feed tube O-ring into the groove on the
bushing and lubricate.
Figure 6-27
Note: Make sure the valve is properly seated in the
tube. Do not lubricate the duck-bill valve.
2. Slide the additional feed tube O-rings into the
grooves on the feed-tube and lubricate them.
Insert the duck bill valve into the feed tube until it
slides in place in the groove.
Figure 6-28
