Taylor 340 Service Manual

37
Models 340/341/342
Parts

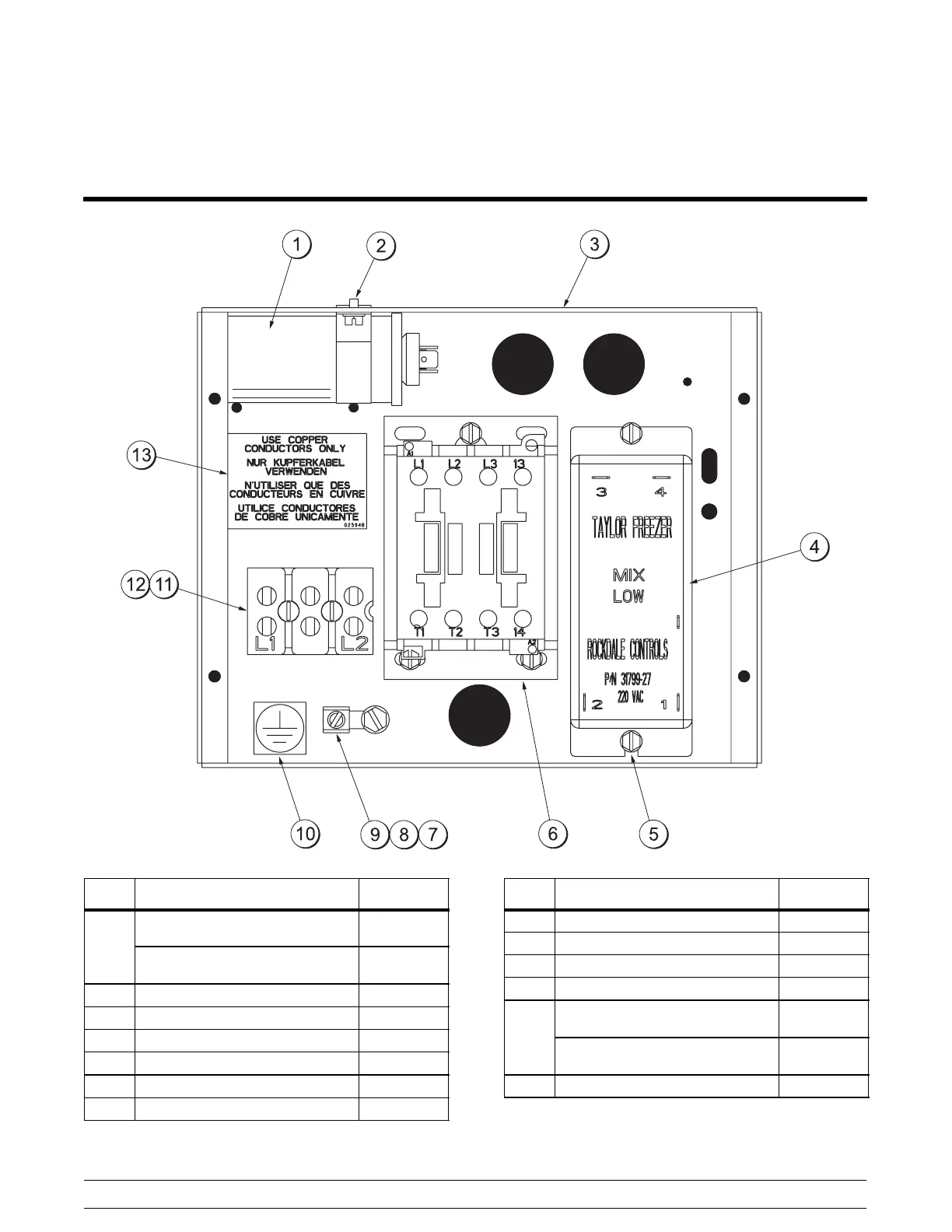

Control A. X52469--27 -- Mo d el 340 (208--230/60/1 Bristol)
Control A. X52469--12 -- Mod el 340 (115/60/1 Tecumseh)
ITEM DESCRIPTION PART NO.
1
CAPACITOR-RUN- 4UF-440V
(230 VOLT) FAN
051785
CAPACITOR-RUN- 7.5UF-370V
(115 VOLT) FAN
034749
2 STRAP-CAPACITOR 041350
3 BOX-CONTROL 049041
4 CONTROL-MIX LEVEL 031799-
5 SCREW-8X1/4 SL HEX HD B 009894
6 RELAY-3 POLE-20A-208/240 012725-
7 LUG-GROUND. 260 W/ SCREW 020928
ITEM DESCRIPTION PART NO.
8 SCREW-10-32X1/2 MF HEX 020982
9 NUT-10-32 MF LOCK 020983
10 LABEL-GROUNDING SYMBOL 017669
11 SCREW-8 X 1-1/4 RD HD TYP B 039420
12
BLOCK-TERMINAL 2P-L1,L2
(230 VOLT)
039422
BLOCK-TERMINAL 2P-L1
(115 VOLT)
039421
13 LABEL-COPPER COND ONLY 025948
