OPERATOR PARTS IDENTIFICATION
Model 490
Operator Parts Identification
4

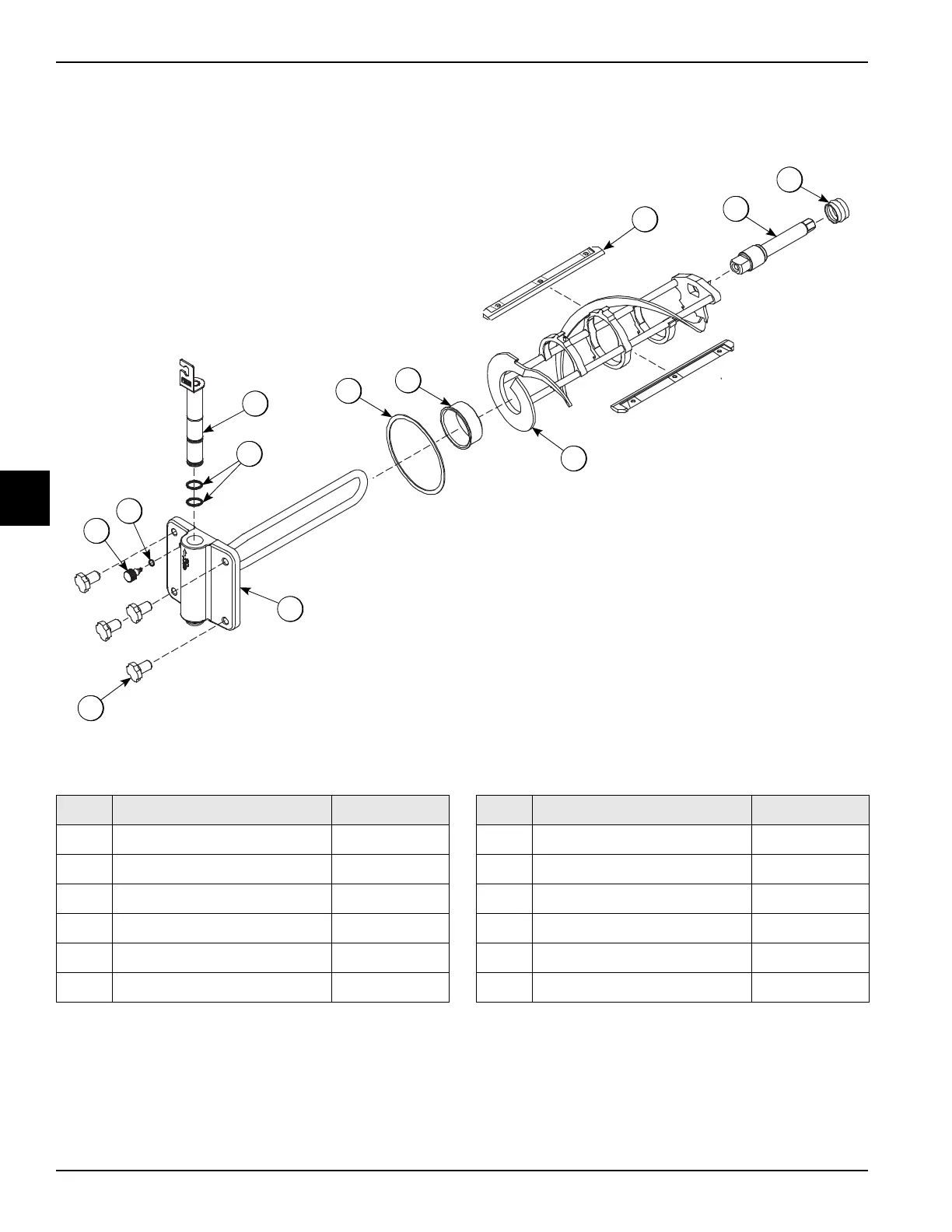

Beater Door Assembly
Figure 4-2
6
2
3
5
4
7
8
10
11
12
9
1
Item Description Part No.
1 Nut-Stud 021508
2 Plug-Prime 067779
3 O-ring-1/4 OD X .070W 50 015872
4 Valve A.-Draw X48364
5 O-ring-1-1/16 OD X.139W 020571
6 Door A.-1 Spout-7 qt. X67777-SER
Item Description Part No.
7 Gasket-Door 5.177ID X 5.938OD 016672
8 Bearing-Front 013116
9 Beater A.-7 qt.-1 Pin X46233
10 Blade-Scraper-Plastic 9-13/16L 084950
11 Shaft-Beater 033498
12 Seal-Drive Shaft 032560
