Taylor 490 Operator's Manual

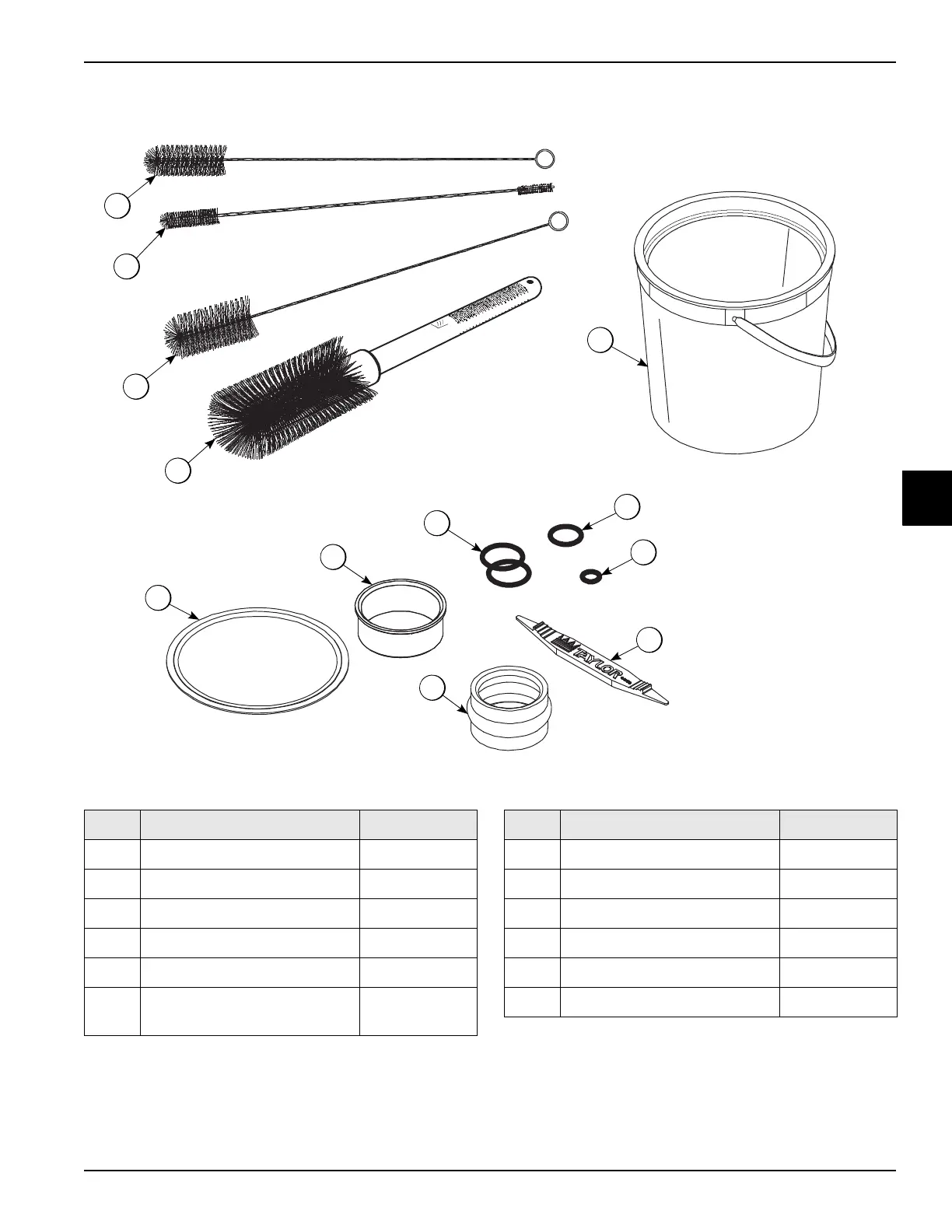

OPERATOR PARTS IDENTIFICATION
4-3
Model 490
Operator Parts Identification
4
Accessories
Figure 4-3
*Included in X67932 Tune-up kit
2
3
4
5
6
7
12
8
9
10
11
1
Item Description Part No.
1 Pail-6 qt. 023348
2 Brush-Rear BRG 1IN.DX2IN 013071
3 Brush-Double Ended 013072
4 Brush-Draw Valve 1-1/2X3 014753
5 Brush-Mix Pump Body-3"X7
" 023316
*6
Gasket-Door 5.177 ID X 5.938
OD
016672
Item Description Part No.
*7 Bearing-Front 013116
*8 O-ring-1-1/16 OD X.139 W 020571
*9 O-ring-7/8 OD X .139 W 025307
*10 O-ring-1/4 OD X .070 W 015872
*11 Tool-O-ring Removal 048260-WHT
*12 Seal-Drive Shaft 032560
