Models 750, 751, 754, 774, 791, 794 Operator Parts Identification
151217

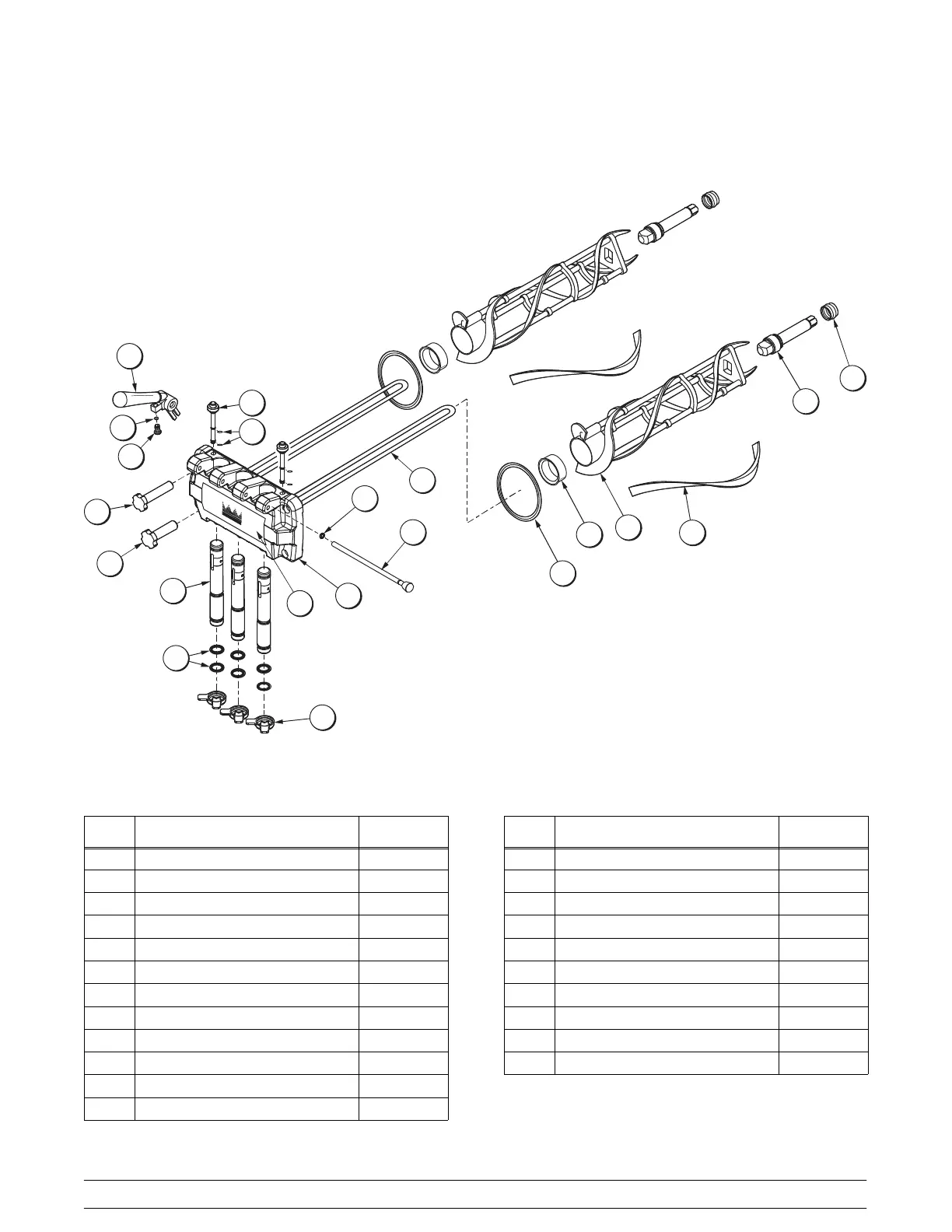

Models 754, 774 & 794 Three Spout Door and Beater Assembly
8a
8c
9
6
8b
10
3
4
5
1
11
12
17
18
13
14
15
16
1a
2
7
Figure 1
ITEM DESCRIPTION PART NO.
1 DOOR A.−3 SPOUT X51532−12
1a BAFFLE A.−LONG 4 IN X50882
2 DECAL−DOOR−3 SPOUT 021521
3 VALVE A.−DRAW X69539
4 O−RING−7/8 OD X .103W−SIL 083693
5 CAP−DESIGN 1.010”ID−6 POINT 014218
6 PLUG−PRIME 028805
7 O−RING−3/8 OD X .070W 016137
8 HANDLE A.−DRAW *WHITE X81010−SP
8a HANDLE−DRAW−WHITE 056248−1
8b SCREW−ADJ.−5/16−24 056332
8c O−RING−1/4 OD X .070W 50 015872
ITEM DESCRIPTION PART NO.
9 NUT−STUD *LONG 034382
10 NUT−STUD *SHORT 034383
11 ROD A.−PIVOT X20683
12 O−RING−5/16 OD X .070W 016272
13 GASKET−DOOR HT 4”−DOUBLE 048926
14 BEARING−FRONT 050216
15 BEATER A.−3.4QT−HELICORE X31761
16 BLADE−SCRAPER−PLASTIC 035174
17 SHAFT−BEATER 032564
18 SEAL−DRIVE SHAFT 032560
