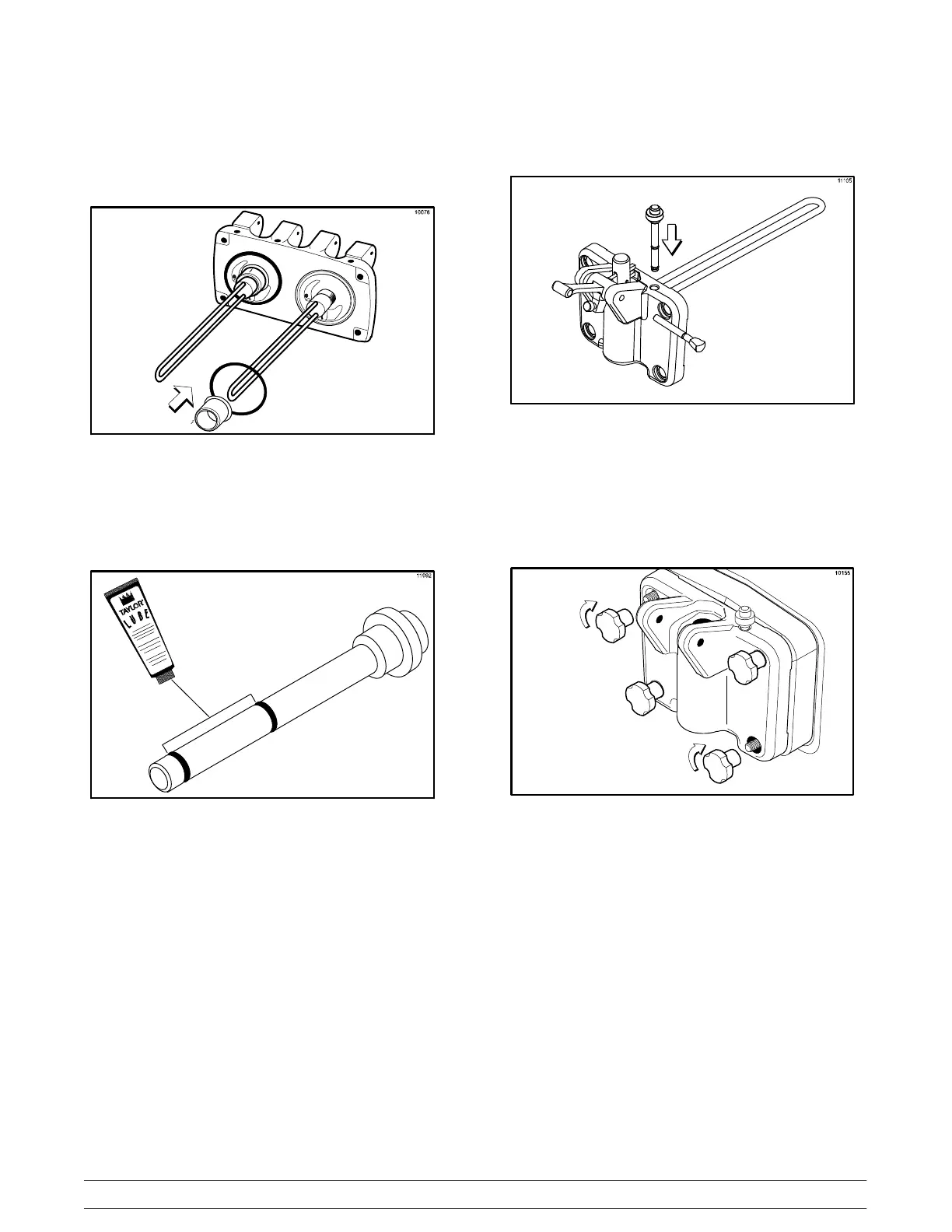

Models 750, 751, 754, 774, 791, 794 Operating Procedures

Note: There are two gaskets and two front bearings

for the Models 754, 774, 791, and 794 door, one for

each freezing cylinder.

Figure 10

Slide the two o−rings into the grooves on the prime

plug(s). Apply an even coat of Taylor Lube to the

o−rings and shaft(s).

Figure 11

Note: There are two prime plugs for the Models 754,

774, 791, and 794 door, one for each freezing cylinder.

Insert the prime plug(s) into the hole(s) in the top of the

freezer door, and push down.

Figure 12

Step 4

Insert the baffle rod(s) through the opening in the

beater(s) and seat the door flush with the freezing

cylinder. With the door seated on the freezer studs,

install the handscrews. Tighten equally in a crisscross

pattern to insure the door is snug.

Figure 13

Note: On the Models 754, 774, 791, and 794, the

short handscrews go on the bottom and the long

handscrews go on the top.
