4-2
OPERATOR PARTS IDENTIFICATION
Models 750, 751, 754, 774, 791, and 794
Operator Parts Identification
4
Model 751

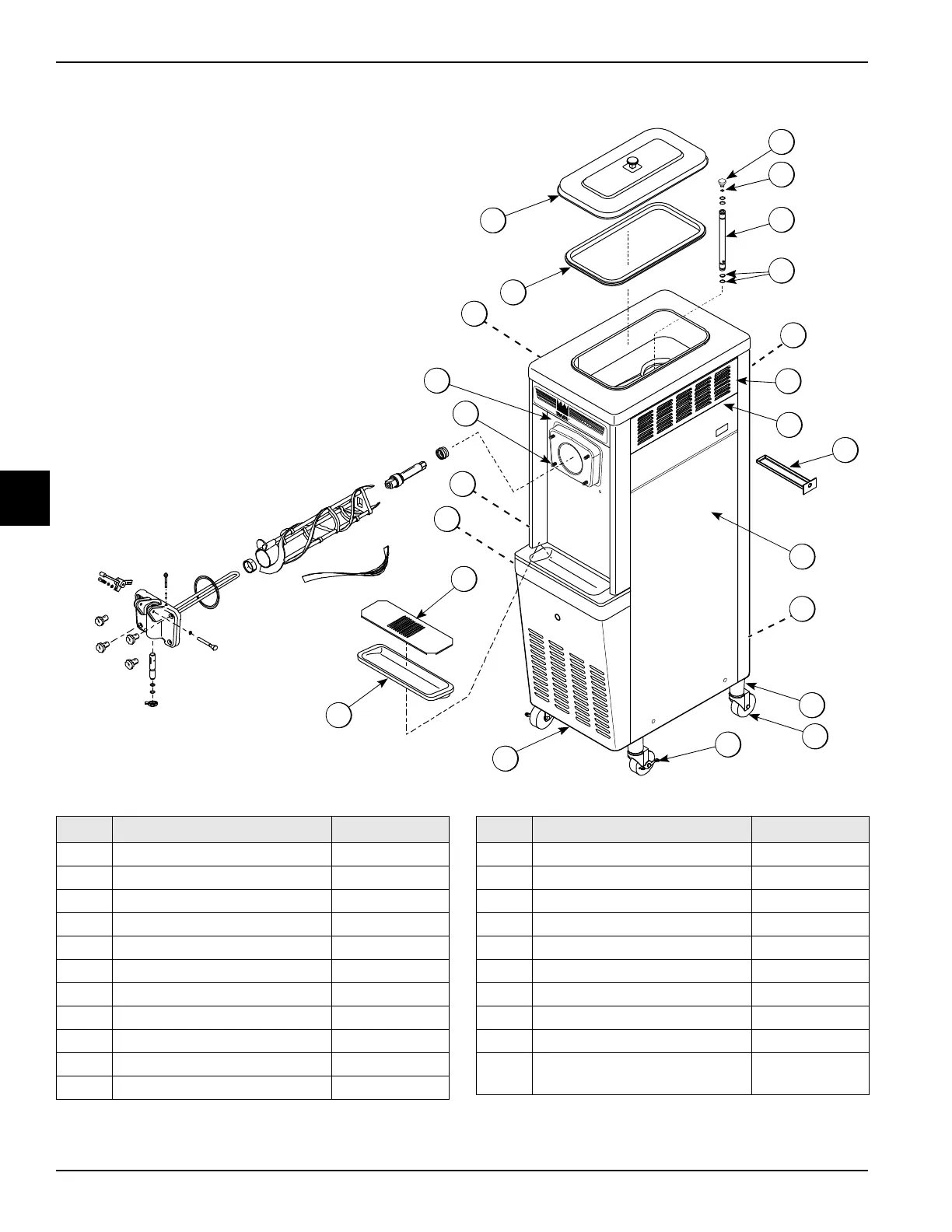

Figure 4-2
13
8
9
4
11
7
20
5
4
18
2
1
15
3
16
17
12
21
14
10
19
6
18
Item Description Part No.
1 Cover A.-Hopper X38458-SER
2 Gasket-Hopper Cover 038375
3 Tube A.-Feed X29429-2
4 Panel-Rear 013637
5 Panel-Upper Side Right 028823
6 Pan-Drip 11-5/8 Long 027503
7 Panel A.-Lower Side Right X24424-SER
8 Shield-Splash 022763
9 Tray-Drip 14-7/8 x 5-1/8 013690
10 Panel-Upper Side 024426
11 Panel-Service 047170
Item Description Part No.
12 Caster-Swivel 018794
13 Stud-Nose Cone 022822
14 Panel A.-Side-Lower X39075-SER
15 O-ring-.643 OD x .077 W 018572
16 O-ring-3/8 OD x .070 W 016137
17 Orifice 022465-100
18 Louver-Side-Top 051191
19 Panel A.-Front X33237
20 Adaptor A.-Caster X18915
21 Caster-4 Swivel 5/8” Stem w/
Brake
034081
To Next Page
