4-2
OPERATOR PARTS IDENTIFICATION
Model 810, 812, 820, 822, 828 Series
Operator Parts Identification
4

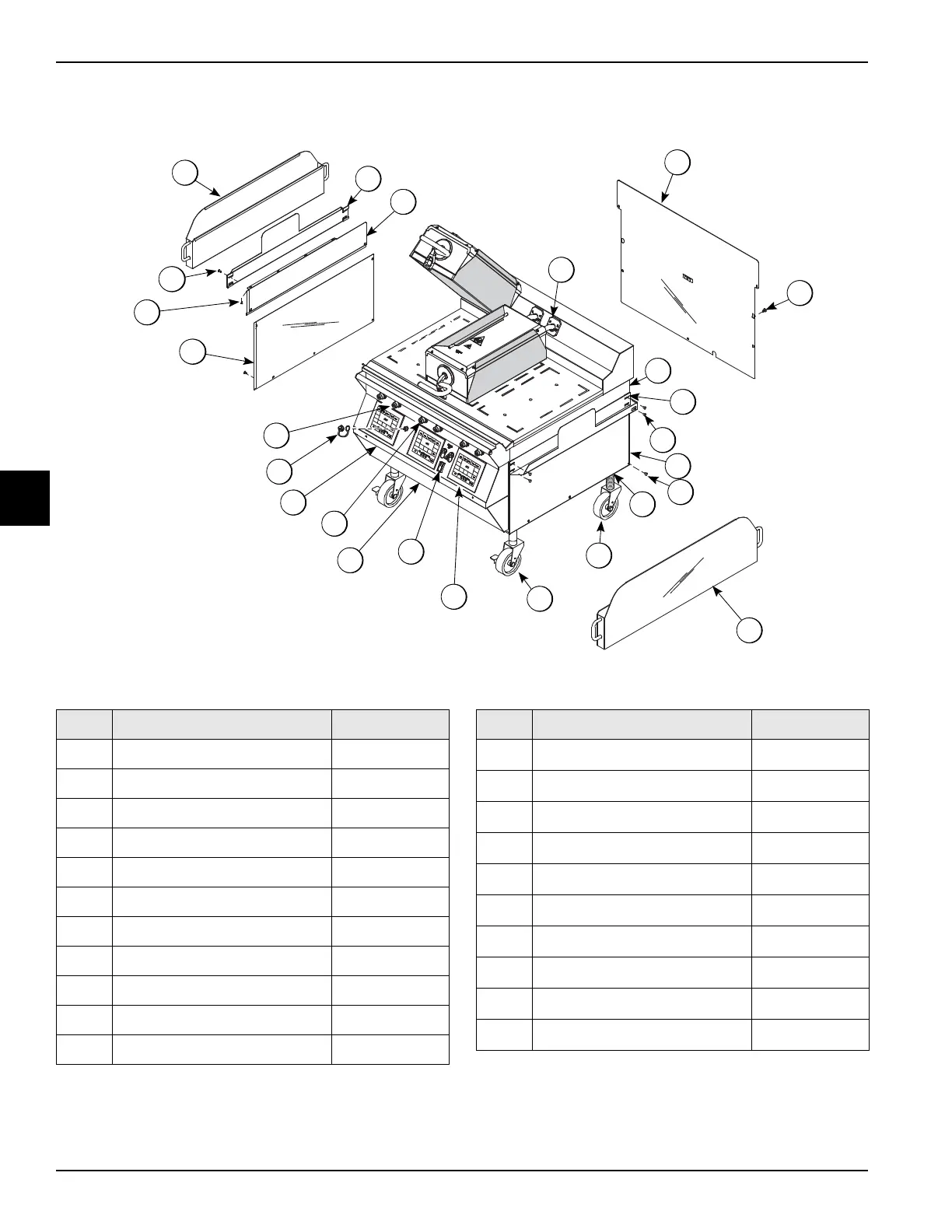

L812 Exploded View
Figure 4-2
*1 Kit Per Platen
4
5
2
3
6
7
8
9
10
21
11
4
12
14
1
13
15
16
17
18
20
19
1
4
4
Item Description Part No.
1 Can A.-Grease *HEM X80925
2 Slide A.-Can Grease *L X83854
3 Panel-Side Upper-LT 073990
4 Screw-10-32X3/8 SLTD Trus 024298
5 Panel-Side-Lower *Left 073992
*6 Kit A.-Grease Shield* X78330-SER
7 Panel A.-Back-Service X73995
8 Panel-Side Upper-RT 073989
9 Slide A.-Can Grease *RT X83853
10 Panel-Side-Lower *Right 073991
11 Nut-Jam 1 1/2-12 Steel 073594
Item Description Part No.
12
Caster-5" 7-5/8 Stem Rigid 078377
13
Caster-5" 7-5/8 Swivel w/Lock 073240
14
Kit A.-Grill Control X73474-SER
15
Switch-Rocker-DPST-10A 076989-WP
16
Panel A.-Front-Lower X73979
17
Button-Operator-Red 076011
18
Panel A.-Light X73983
19
Cover A.-USB Waterproof 068583
20
Button-Operator-Black 076012
21
Screw 10-32 X 3/8 039381
To Next Page
