OPERATOR PARTS IDENTIFICATION
Model 810, 812, 820, 822, 828 Series
Operator Parts Identification
4

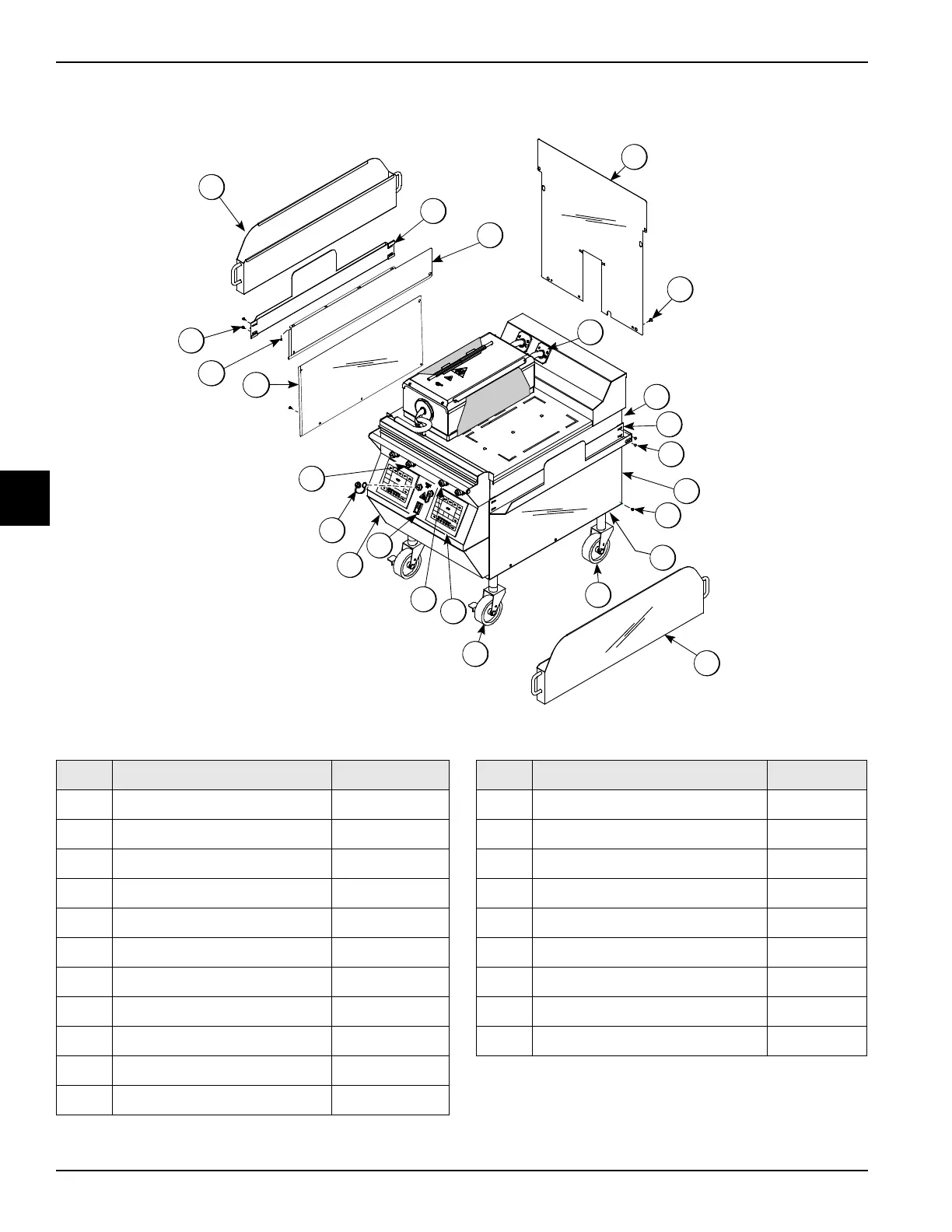

L822 Exploded View
Figure 4-4
1
5
6
3
10
15
17
18
19
20
2
13
4
14
1
9
8
7
16
11
4
4
12
4
Item Description Part No.
1 Can A.-Grease *HEM X80925
2 Slide-Grease Can Left X83854
3 Panel-Side Upper-LT 073990
4 Screw-10-32X3/8 SLTD TRUS 024298
5 Screw-10-32X3/8 SLTD TRUS 039381
6 Panel-Side-Lower *Left 073992
7 Kit A.-Grease Shield* X78330-SER
8 Panel A.-Back Service 069656
9 Panel-Side Upper-RT 073989
10 Slide-Grease Can *Right X83853
11 Panel-Side-Lower *Right 073991
Item Description Part No.
12 Nut-Jam 1 1/2-12 Steel 073594
13 Caster-5" 7-5/8 Stem Rigid 078377
14 Caster-5" 7-5/8 Swivel w/Lock 073240
15 Kit A.-Grill Control- GEN MRKT X73474-SER
16 Button-Operator-Red 076011
17 Switch-Rocker-DPST-10A 076989-WP
18 Panel-Front-Lower 69661
19 Cover A.-USB Waterproof 068583
20 Button-Operator-Black 076012
To Next Page
