Operating Procedures
6
10. Slide the two O-rings into the grooves on the
remaining draw valves and lubricate.

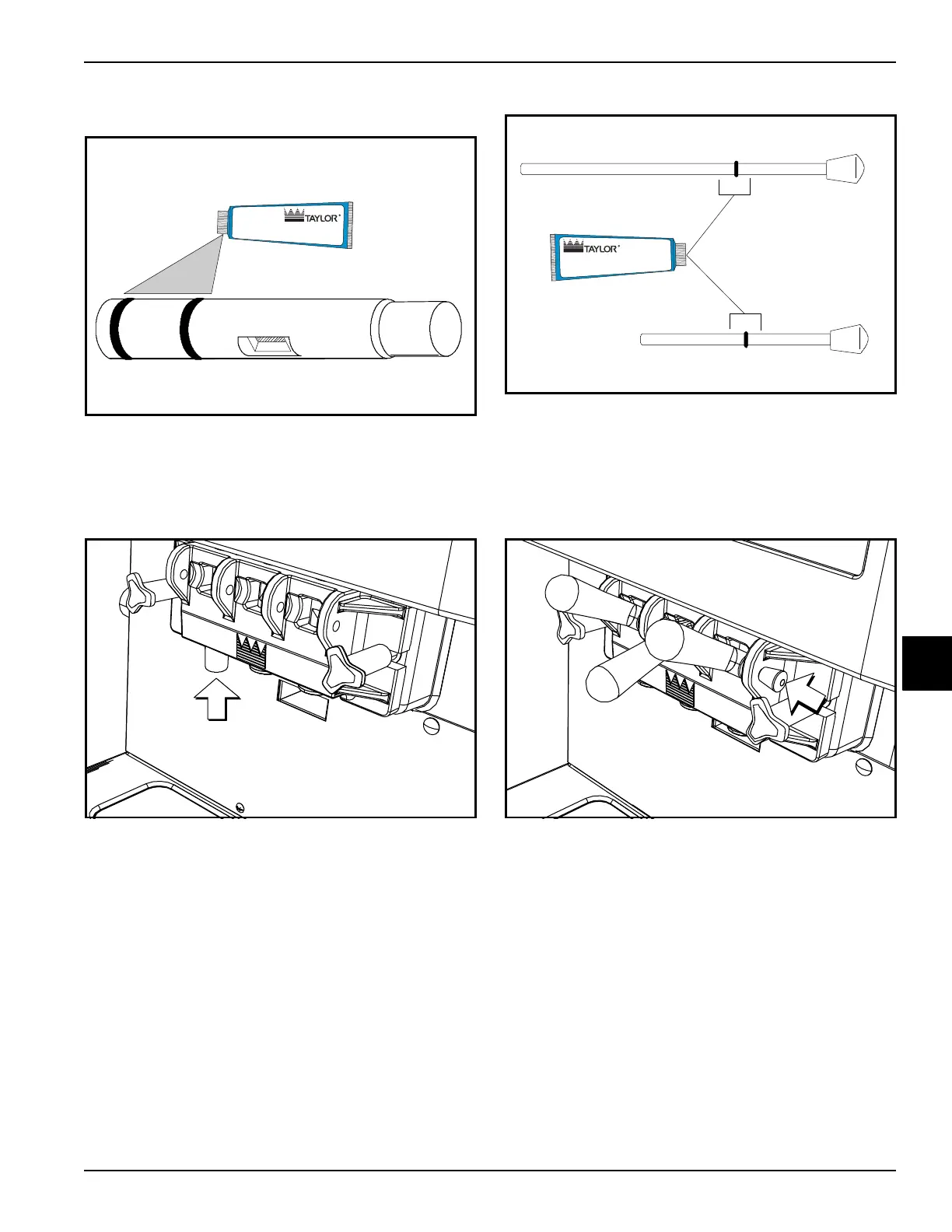

Figure 6-8
11. Lubricate the inside of the freezer door spouts from
the bottom. Insert the draw valves into the freezer
door from the bottom until the slot in the draw valves
comes into view.
Figure 6-9
12. Slide the O-ring onto each pivot pin and lubricate.
Figure 6-10
13. Slide the tip of the draw handle into the slot of the
draw valve, starting from the right. Slide the short
pivot pin through the far right draw handle. Slide the
long pivot pin through the far left and middle draw
handles.
Figure 6-11
Apply the appropriate
Taylor approved food safe lubricant.
11070
Apply the appropriate
Taylor approved food safe lubricant.
10131a
