Taylor C602 Replace

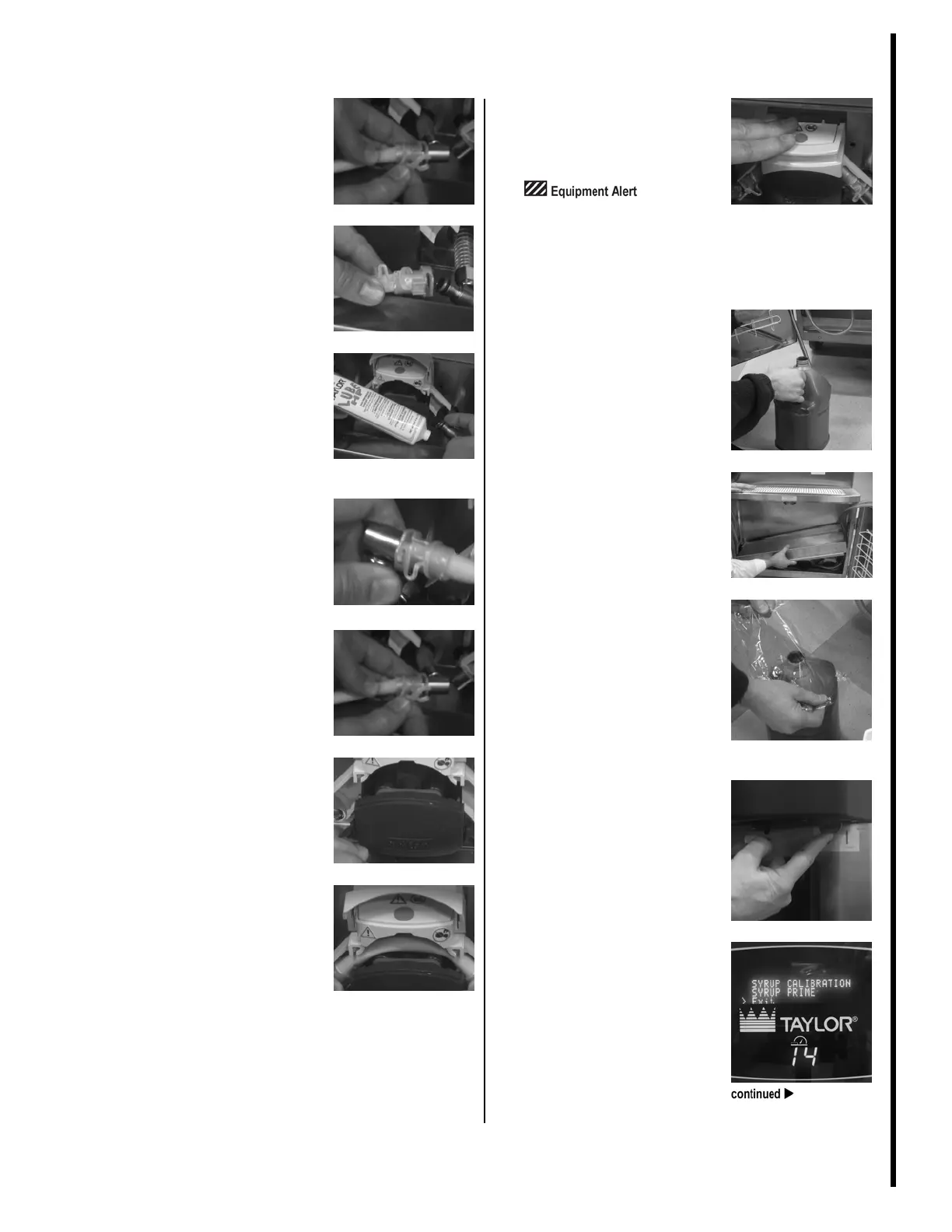

Replace syrup pump tubes (continued)
©McDonald’s Corporation · Planned Maintenance Manual · Revised April, 2010 Page 3 of 4
Taylor Company Milkshake and Soft-serve Machine Model C602 Annually
SS 1 A1
17
Remove clips.
Remove the two clips at-
tached to the pump tube
collars.
18
Remove fittings.
Remove the two fittings that
connect the feed tube and
syrup line to the pump tube.
19
Lubricate o-rings.
Locate the o-rings on the
fittings. Lubricate each o-ring
with Taylor Lube HP.
20
Insert fittings into new pump
tube.
Insert the fittings on the feed
tube and syrup line into a new
pump tube by pushing them
firmly into place.
21
Attach clips to collars.
Attach one clip to each collar
on the new pump tube.
22
Position the pump rollers.
Using both hands, rotate the
pump rollers so they are in the
10 o’clock and 2 o’clock
positions.
23
Push the pump tube assembly
into the pump body.
Make sure the syrup line is
pushed through the rear of the
cabinet.
24
Close pump.
Push down on the hinged
cover to close the pump body.
To avoid damage to the pump
tube, make sure it is seated
properly in the pump body
before closing the hinged
cover.
25
Flush remaining syrup lines
and replace remaining pump
tubes.
Repeat steps 1 through 25 for
each remaining syrup flavor.
26
Replace the pump cover tray.
Replace the pump cover tray
by sliding the tray in over the
pumps.
27
Replace the syrup jugs and
syrup feed tubes.
Remove the plastic wrap from
each syrup jug. Return the
syrup jugs to the cabinet.
Match the feed tubes to the
correct jug and place the feed
tubes into the jug.
28
Plug in machine and turn on.
Plug in the machine and turn
the power switch to the on
position.
29
Prime each syrup line.
