Taylor C706 Original Operating Instructions

17
Model C706 Operating Procedures
050112

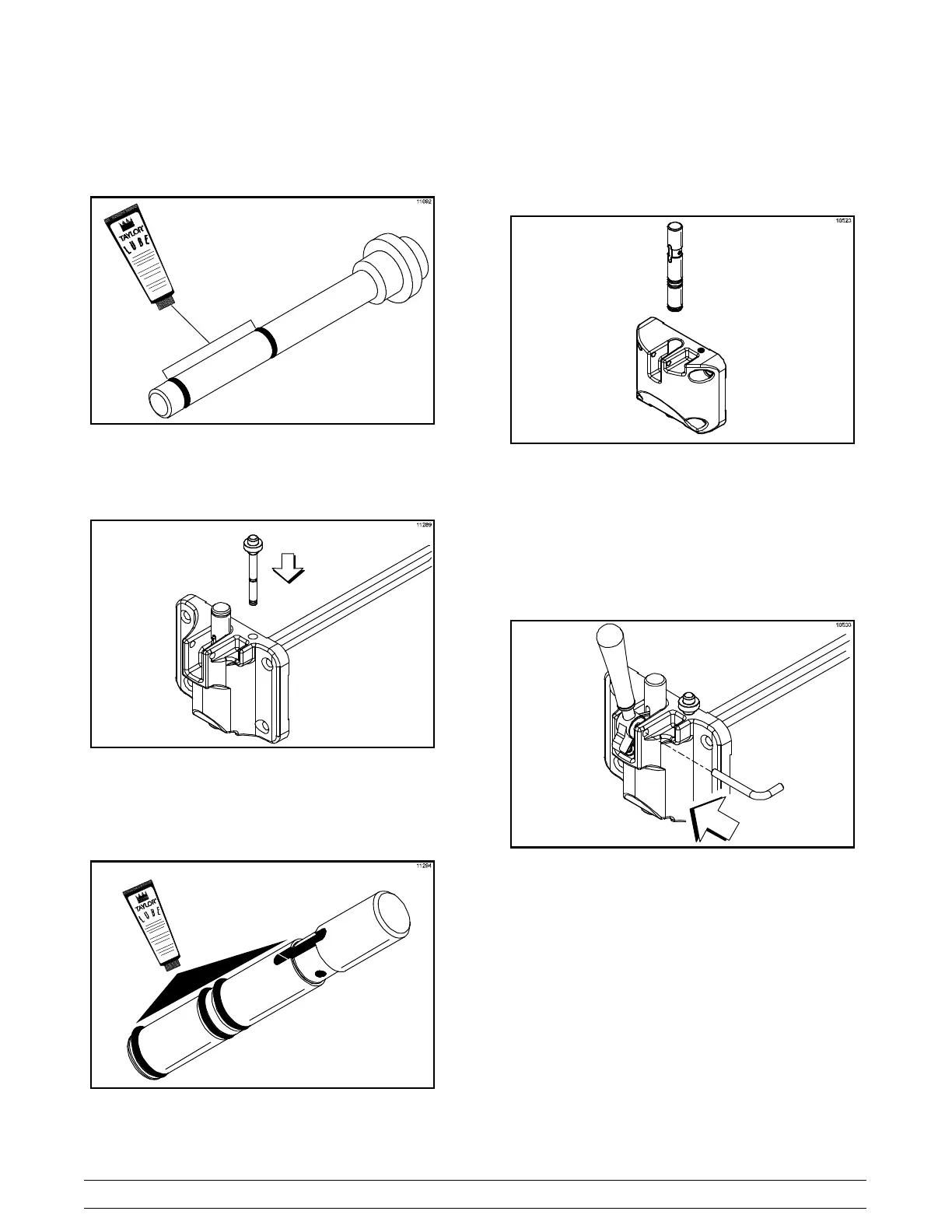

Slide the two o--rings into the grooves on the prime
plug. Apply an even coat of Taylor Lube to the o--rings
and shaft.
Figure 11
Insert the prime plug into the hole in the top of the
freezer door, and push down.
Figure 12
Step 4
Install the draw valve. Slide the three o-- rings into the
grooves on the draw valve, and lubricate.
Figure 13
Step 5
Insert the draw valve from the top until the draw valve
is at the bottom.
Figure 14
Step 6
Install the adjustable draw handle Slide the fork over
the bar in the slot of the draw valve. Secure with pivot
pin.
Figure 15
Note: This unit features an adjustable draw handle to
provide the best portion control. The draw handle can
be adjusted for different flow rates. See page 13 for
more information on adjusting this handle.
Step 7
Install the freezer door. Insert the baffle rod through
the opening in the beater and seat the door flush with
the freezing cylinder. With the door seated on the
freezer studs, install the handscrews. Tighten equally
in a crisscross pattern to insure the door is snug.

Taylor C706 Specifications

General

Model	C706
Category	Freezer
Refrigeration System	Air Cooled
Air Cooled	Yes
Water Cooled	No
Weight	220 lbs
