10
Models C709 & C717Operator Parts Identification
130128

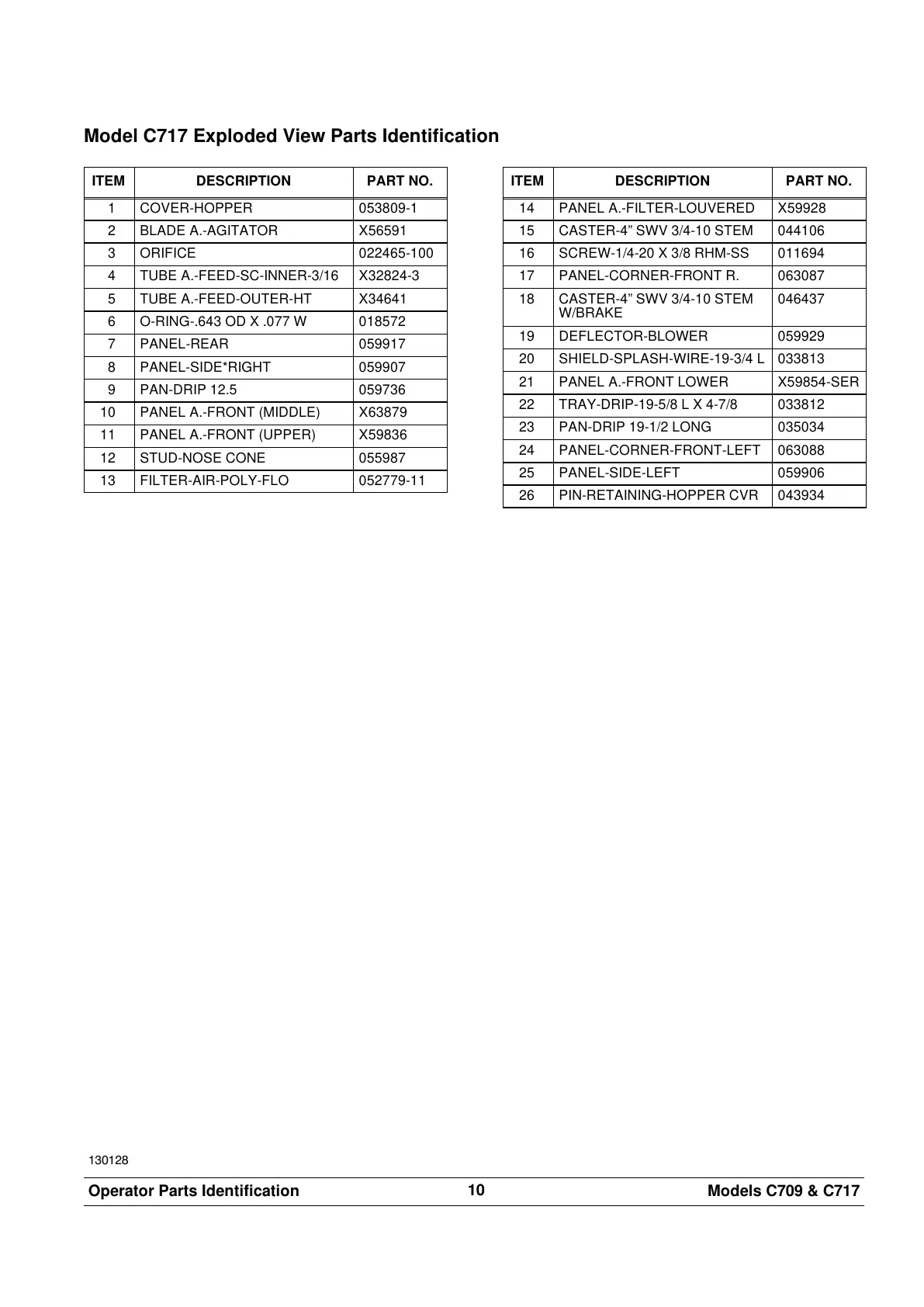

Model C717 Exploded View Parts Identificatio n
ITEM DESCRIPTION PART NO.
1 COVER-HOPPER 053809-1
2 BLADE A.-AGITATOR X56591
3 ORIFICE 022465-100
4 TUBE A.-FEED-SC-INNER-3/16 X32824-3
5 TUBE A.-FEED-OUTER-HT X34641
6 O-RING-.643 OD X .077 W 018572
7 PANEL-REAR 059917
8 PANEL-SIDE*RIGHT 059907
9 PAN-DRIP 12.5 059736
10 PANEL A.-FRONT (MIDDLE) X63879
11 PANEL A.-FRONT (UPPER) X59836
12 STUD-NOSE CONE 055987
13 FILTER-AIR-POLY-FLO 052779-11
ITEM DESCRIPTION PART NO.
14 PANEL A.-FILTER-LOUVERED X59928
15 CASTER-4” SWV 3/4-10 STEM 044106
16 SCREW-1/4-20 X 3/8 RHM-SS 011694
17 PANEL-CORNER-FRONT R. 063087
18 CASTER-4” SWV 3/4-10 STEM
W/BRAKE
046437
19 DEFLECTOR-BLOWER 059929
20 SHIELD-SPLASH-WIRE-19-3/4 L 033813
21 PANEL A.-FRONT LOWER X59854-SER
22 TRAY-DRIP-19-5/8 L X 4-7/8 033812
23 PAN-DRIP 19-1/2 LONG 035034
24 PANEL-CORNER-FRONT-LEFT 063088
25 PANEL-SIDE-LEFT 059906
26 PIN-RETAINING-HOPPER CVR 043934
