Models C709 & C717 Operator Parts Identification
140121

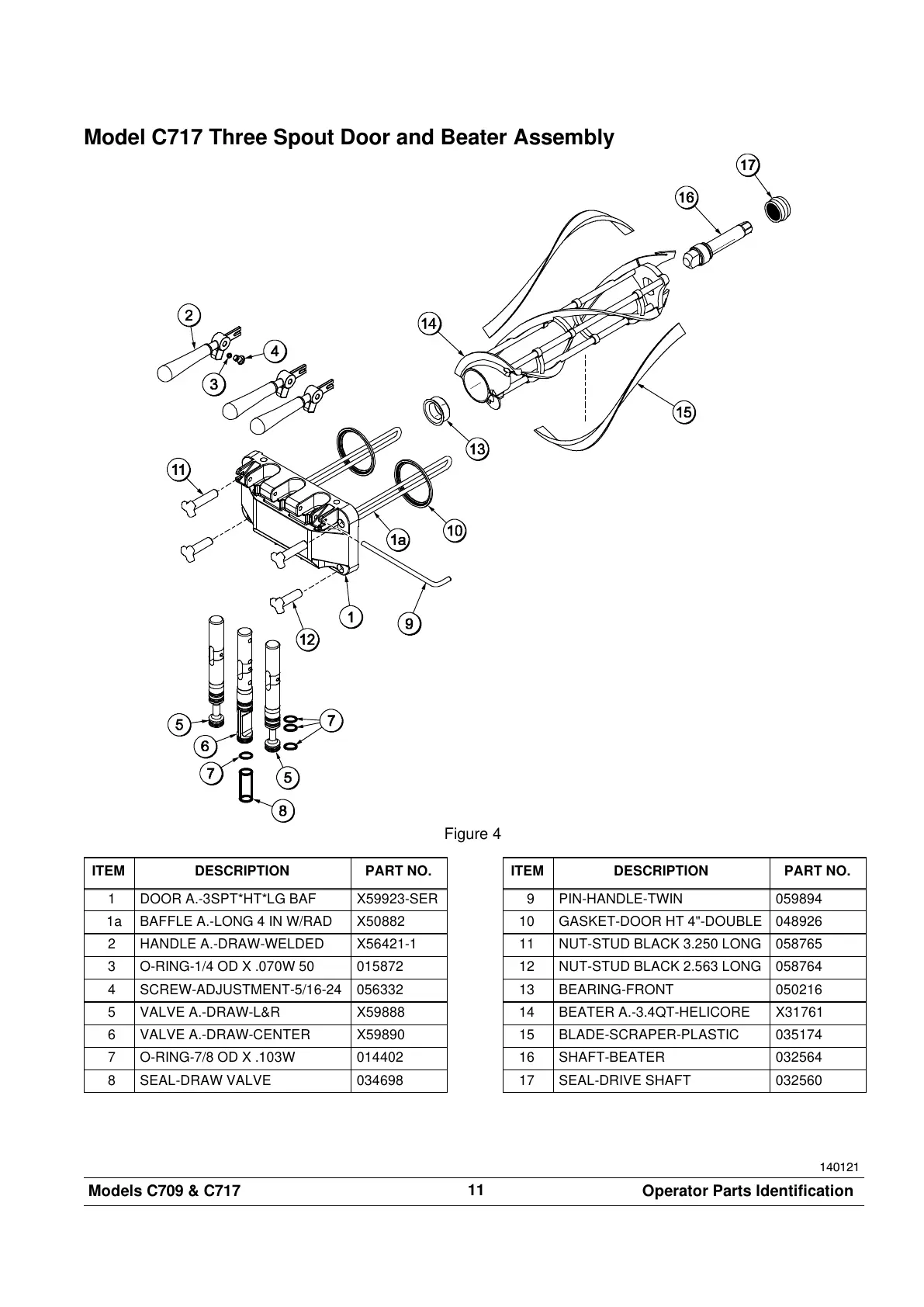

Model C717 Three Spout Door and Beater Assembly
Figure 4
ITEM DESCRIPTION PART NO.
1 DOOR A.-3SPT*HT*LG BAF X59923-SER
1a BAFFLE A.-LONG 4 IN W/RAD X50882
2 HANDLE A.-DRAW-WELDED X56421-1
3 O-RING-1/4 OD X .070W 50 015872
4 SCREW-ADJUSTMENT-5/16-24 056332
5 VALVE A.-DRAW-L&R X59888
6 VALVE A.-DRAW-CENTER X59890
7 O-RING-7/8 OD X .103W 014402
8 SEAL-DRAW VALVE 034698
ITEM DESCRIPTION PART NO.
9 PIN-HANDLE-TWIN 059894
10 GASKET-DOOR HT 4"-DOUBLE 048926
11 NUT-STUD BLACK 3.250 LONG 058765
12 NUT-STUD BLACK 2.563 LONG 058764
13 BEARING-FRONT 050216
14 BEATER A.-3.4QT-HELICORE X31761
15 BLADE-SCRAPER-PLASTIC 035174
16 SHAFT-BEATER 032564
17 SEAL-DRIVE SHAFT 032560
