24
Model C712Operating Procedures

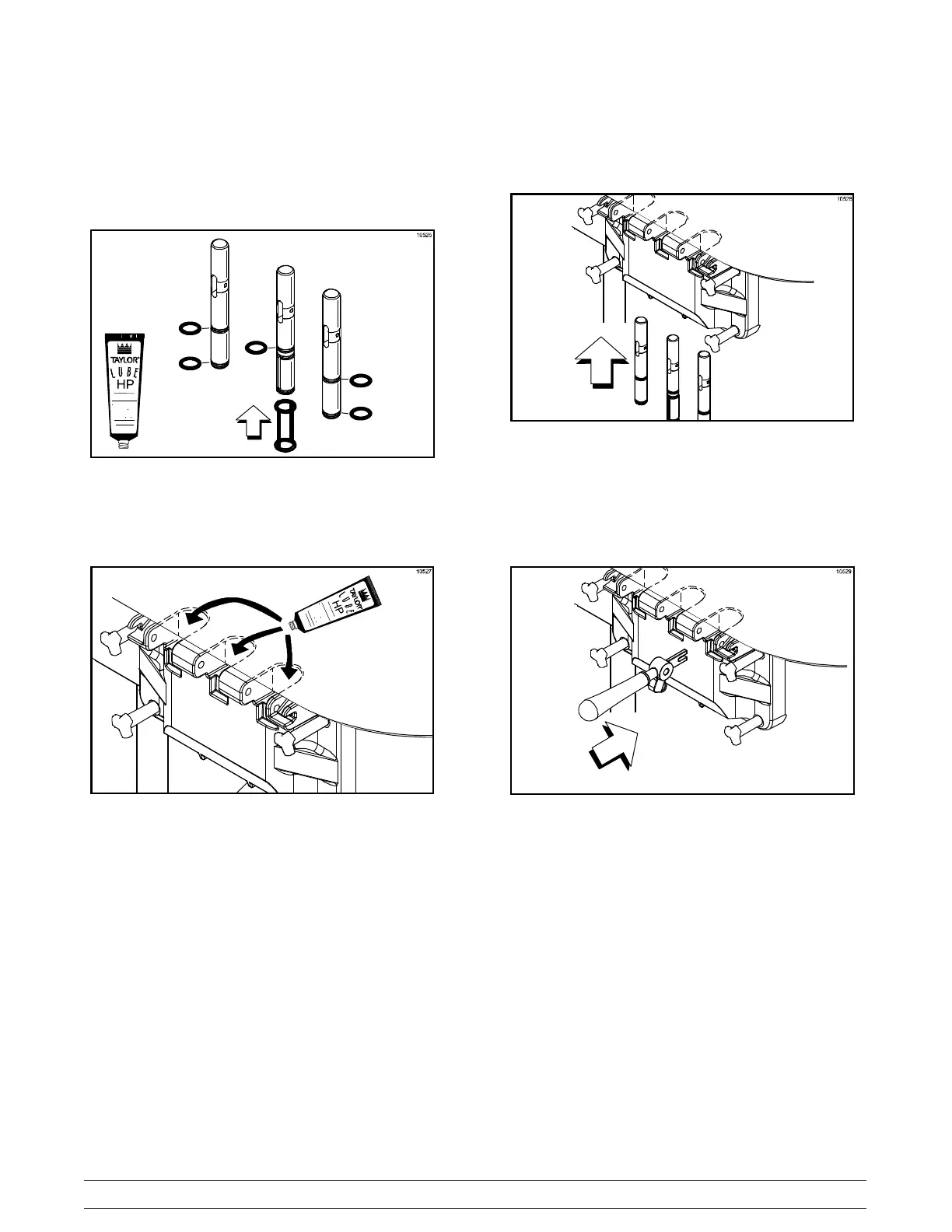

Step 13
Slide the three o-rings into the grooves of each
standard draw valve. Slide the H-ring and o-ring into
the grooves of the center draw valve. Lubricate the
H-ring and o-rings.
Figure 41
Step 14
Lubricate the inside of the freezer door spouts, top
and bottom.
Figure 42
Step 15
Insert the draw valves from the bottom until the slot
in each draw valve comes into view.
Figure 43
Step 16
Position each draw handle with the adjustment
screw facing down. Slide the fork of each draw
handle into the slot of each draw valve, starting from
the right.
Figure 44
