Model C722Operator Parts Identification

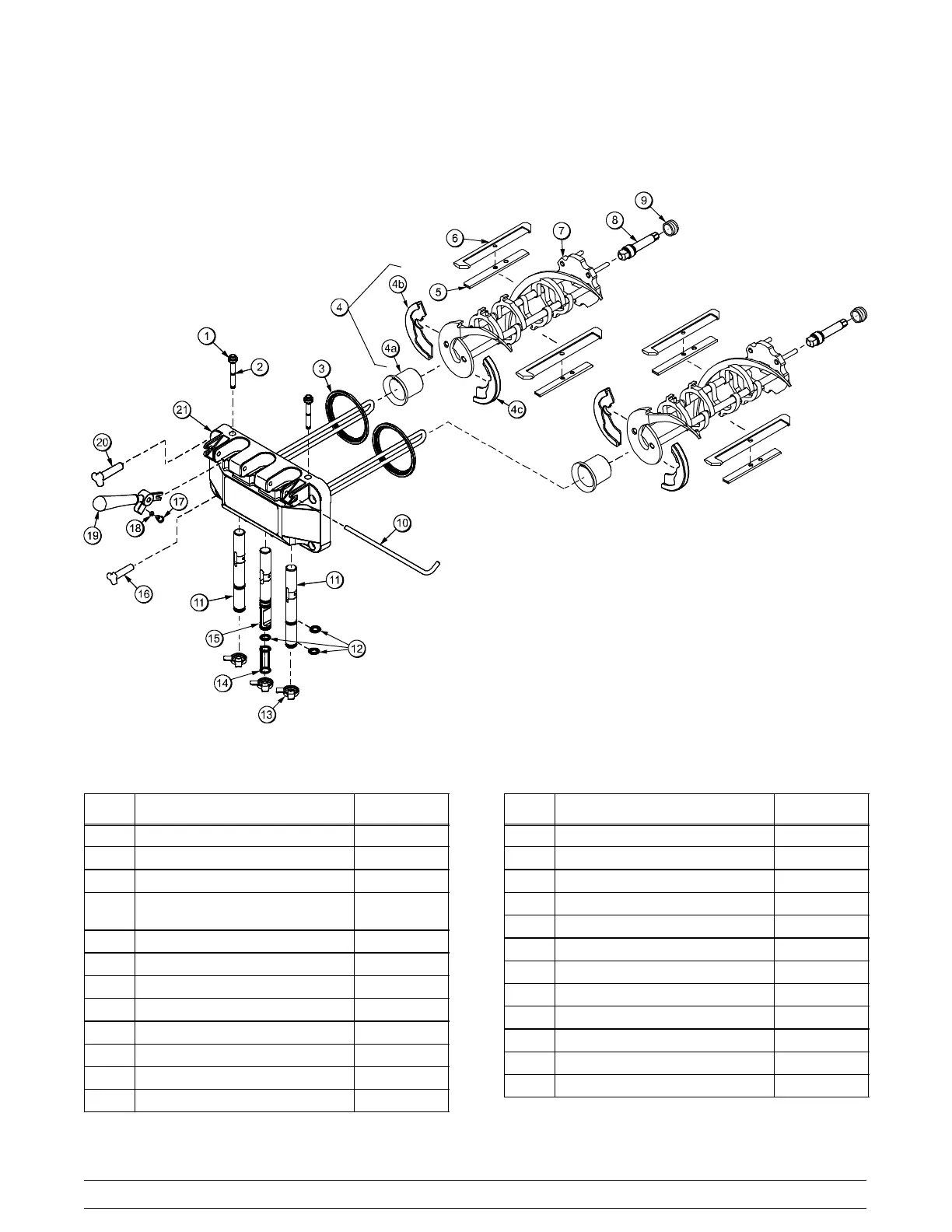

Door and Beater Assembly
Figure 2
ITEM DESCRIPTION PART NO.
1 PLUG-PRIME TWIN 059936
2 O-RING-1/2OD X .070W 024278
3 GASKET-DOOR HT 4"-DOUBLE 048926
4 KIT A.-BEATER-FRONT
SHOES-BEARING
X50350
4a BEARING-FRONT SHOE *SEE NOTE
4b SHOE-FRONT HELIX-FRONT *SEE NOTE
4c SHOE-FRONT HELIX-REAR *SEE NOTE
5 CLIP-SCRAPER BLADE 5.50” 080293
6 BLADE-SCRAPER-PLASTIC 080292
7 BEATER A.-2.8QT-1 PIN X80291
8 SHAFT-BEATER 054194
9 SEAL-DRIVE SHAFT 032560
ITEM DESCRIPTION PART NO.
10 PIN-HANDLE-TWIN 059894
11 VALVE A.-DRAW X59843
12 O-RING-7/8 OD X .103W 014402
13 CAP-DESIGN 1.010"ID-6 POINT 014218
14 SEAL-DRAW VALVE-H RING 034698
15 VALVE A.-DRAW-CENTER X62218
16 NUT-STUD-BLACK 2.563 LONG 058764
17 SCREW-ADJUSTMENT-5/16-24 056332
18 O-RING-1/4 OD X .070W 015872
19 HANDLE A.-DRAW X56421-1
20 NUT-STUD-BLACK 3.250 LONG 058765
21 DOOR A.-SH BAF-W/PRG X80157-SER
*NOT AVAILABLE SEPARATELY. ORDER X50350 KIT.
