Taylor SB25 User Manual

18
Controls and Systems
Model SB25

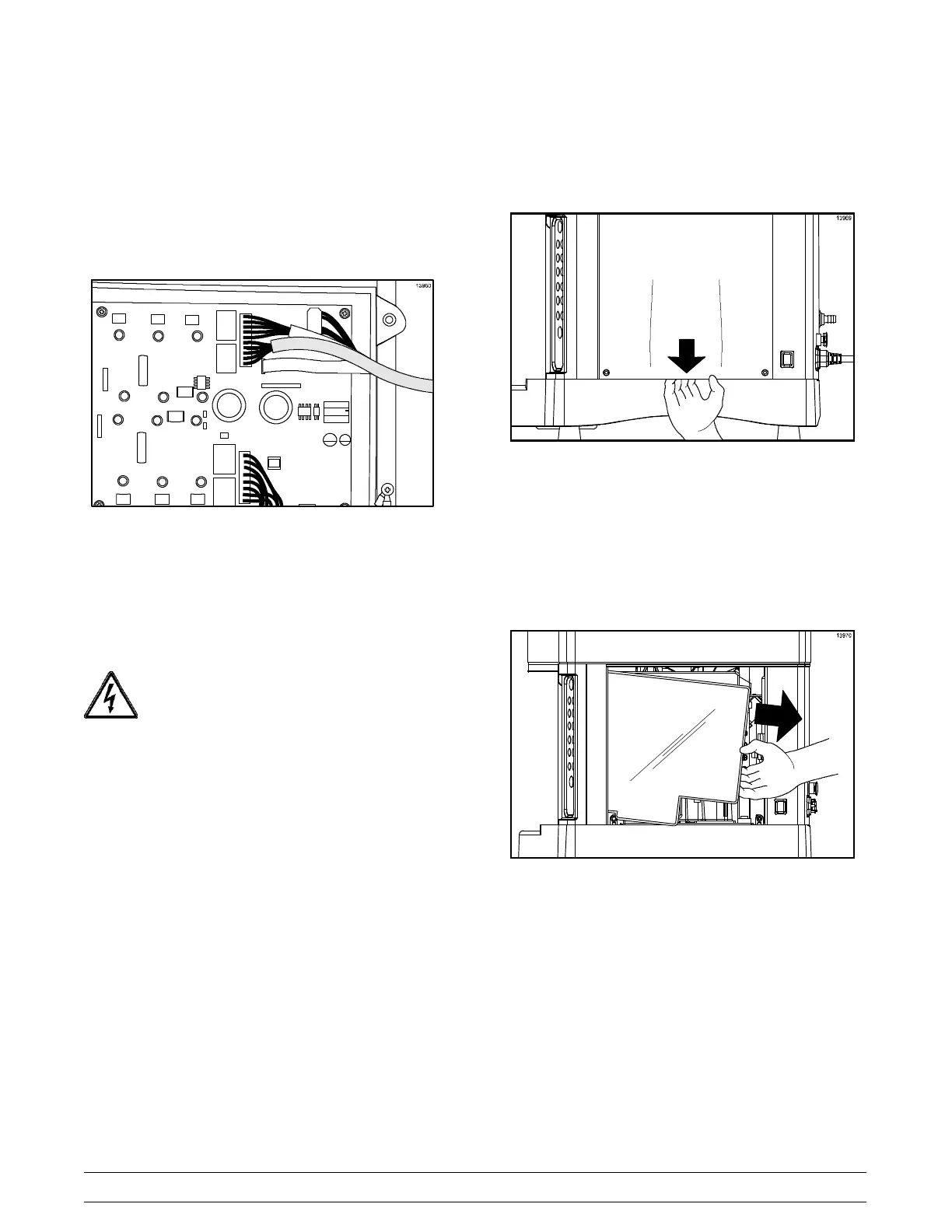

Drive Board
______________________________
The Drive Board functions as the control center of
the Shaver/Blender. The removal of the Drive Board
is sometimes necessary to access other areas of the
system.
Figure 8
Note: See page 43 for the Drive Board
Troubleshooting Guide.
Disassembly
Step 1
Turn off the power switch and unplug the
power cord.
Step 2
Remove the right side panel screws.
Step 3
Remove the right side panel.
Step 4
Insert a flat screwdriver in the screw hole and bow
the cover slightly.
Step 5
Insert your fingers under the bottom edge of panel
and pull downward.
Figure 9
Step 6
Remove the screw (black box to post).
Step 7
Remove the black box cover.
Figure 10
