19
Model SB25
Controls and Systems

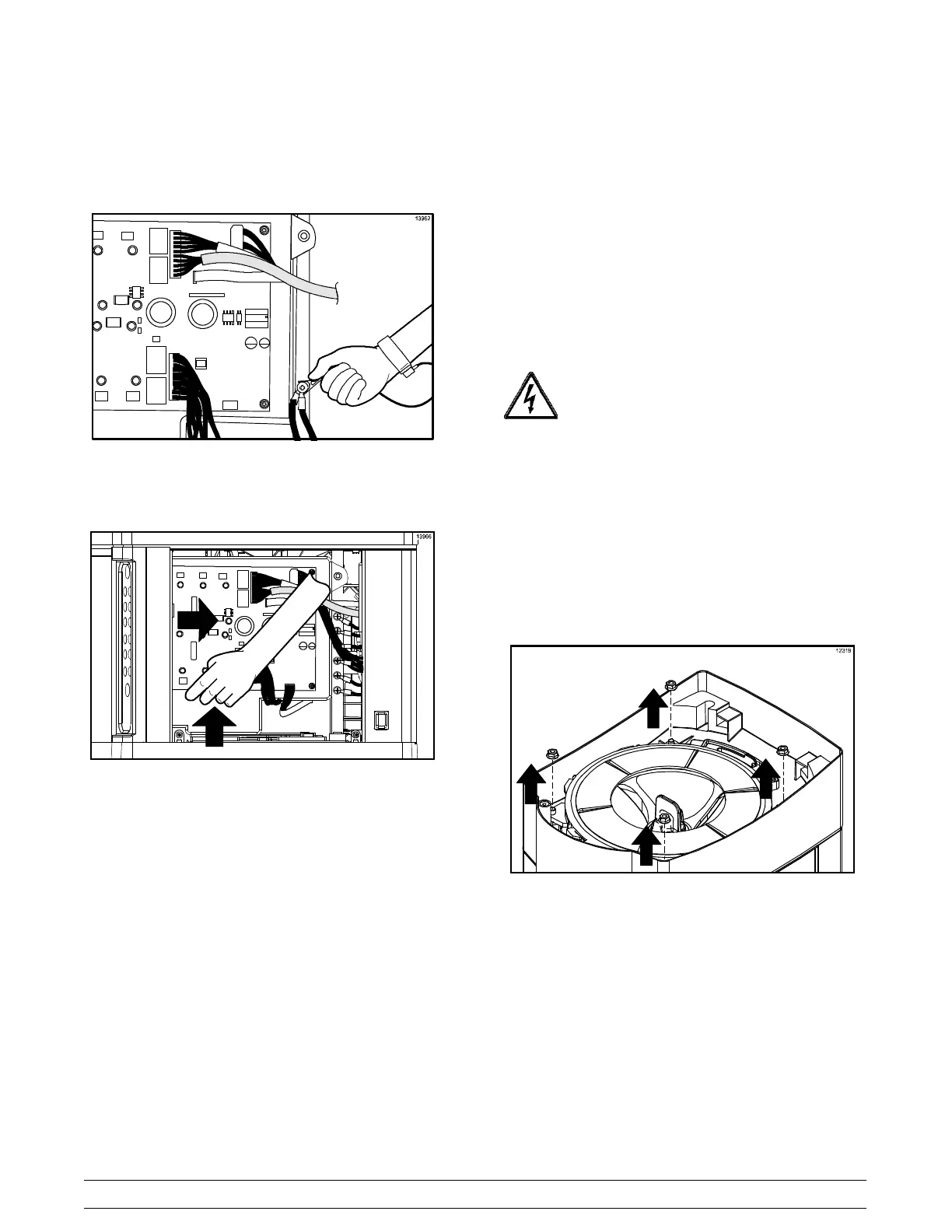

Step 8
Place an anti-static wrist strap around your wrist.
Attach the clip on the other end of the strap to the
ground post.
Figure 11
Step 9
Remove the connectors.
Figure 12
Step 10
Lift the black box and pivot it around the left front
post.
Step 11
Remove the black box.
Main Drain Assembly
______________________________
The Main Drain Assembly consists of the main drain
housing, shaver assembly, shaver motor, and lid
sensor. Removal of the Main Drain Assembly is
sometimes necessary to access other areas of the
system.
Disassembly
Step 1
Turn off the power switch and unplug the
power cord.
Step 2
Remove ice hopper and lid. (See page 17.)
Step 3
Remove the Drive Board. (See page 18.)
Step 4
Remove the four nuts securing the top frame.
Note: Per torque specifications, nuts are tightened
to 75 inch/pounds.
Figure 13
To Next Page
