CABLES
Type 1
Type 2

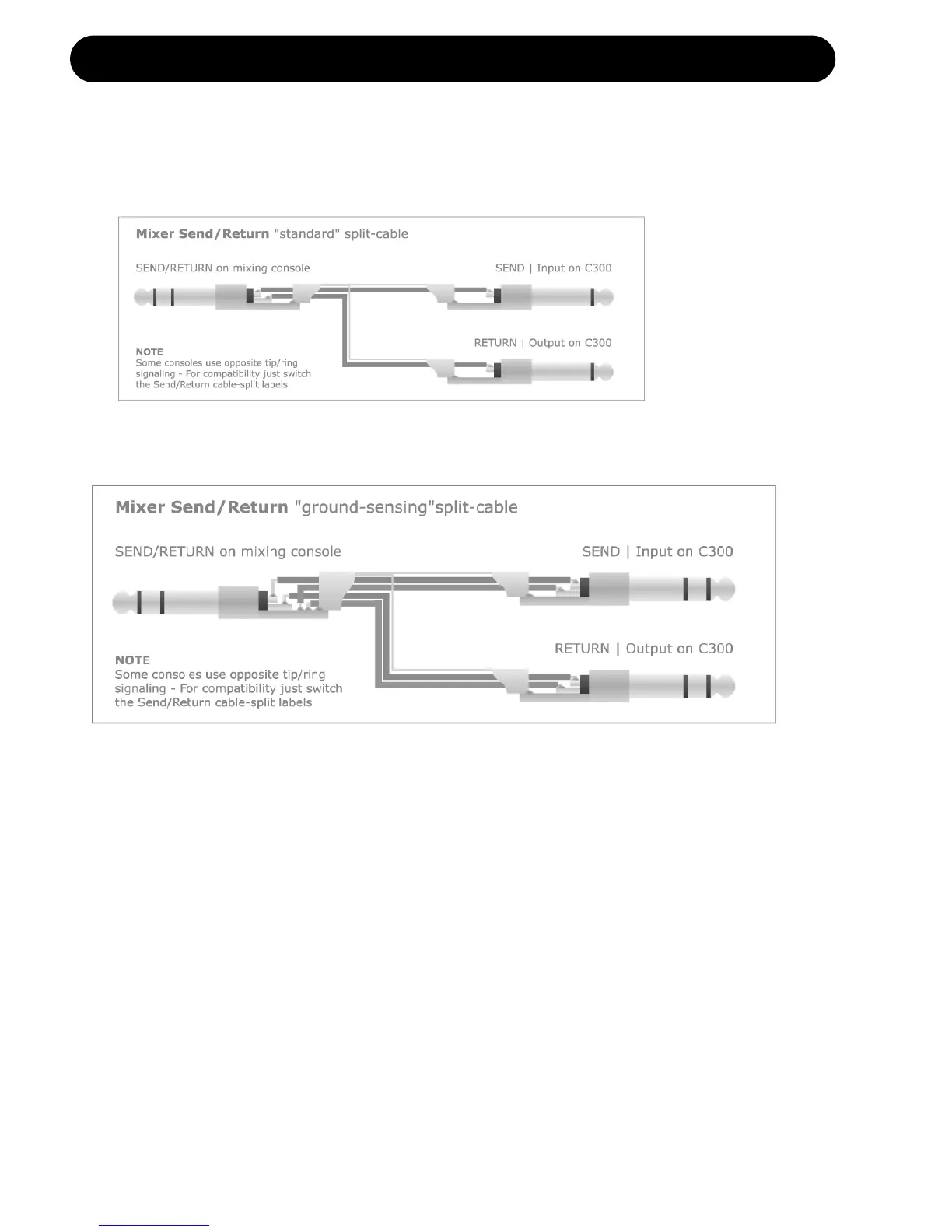

Type 1 and Type 2 cables are used when
C300 is used as channel insert effects with
mixing consoles that has unbalanced insert
points on 1/4” stereo jacks.
T
ype 1
The Standard split cable or “insert-cable” is the
commonly used cable with products like C300.
This type of cable will work perfectly well with
most setups.
T
ype 2
Many mixing desks do not feature balanced
insert points and thereby downgrade these
signals compared to the balanced main inputs.
The result is potentially hum and noise induced
in the insert cables.
The C300 has special designed ground sensing
inputs and outputs, which are "enabled" by
using the ground-sensing split cable.
The use of this cable makes the C300 collect
and deliver an optimal signal "to the door step"
of the mixing desk and thereby raise the
performance of these connections
The ground-sensing feature on the C300 is
invoked by using the ground-sensing split
cable.
C300 can be connected with standard insert cables but in some situations a better signal to
noise ratio level can be obtained using slightly unconventional cable types.

TC Electronic C300 Specifications

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

Power

mains voltage	100 to 240 VAC, 50 to 60 Hz (auto-select)
power consumption	<15 W

Digital Input and Output

sample rates	48 kHz. (44.1 kHz only @ Digital Input)
processing delay	0.08 ms @ 48 kHz
frequency response DIO	DC to 23.9 kHz ± 0.01 dB @ 48 kHz

Analog Inputs

impedance, bal / unbal	20 kOhm / 11 kOhm
max. input level @ 0 dBFS	+21 dBu
A to D delay	0.9 ms @ 48 kHz

Analog Outputs

impedance	35 Ohm
max. output level	+21 dBu
D to A delay	0.58 ms @ 48 kHz

Weight and Dimensions

dimensions	19" x 1.75" x 4.2" (483 x 44 x 105.6 mm)
weight	3.3 lb. (1.5 kg)
