29

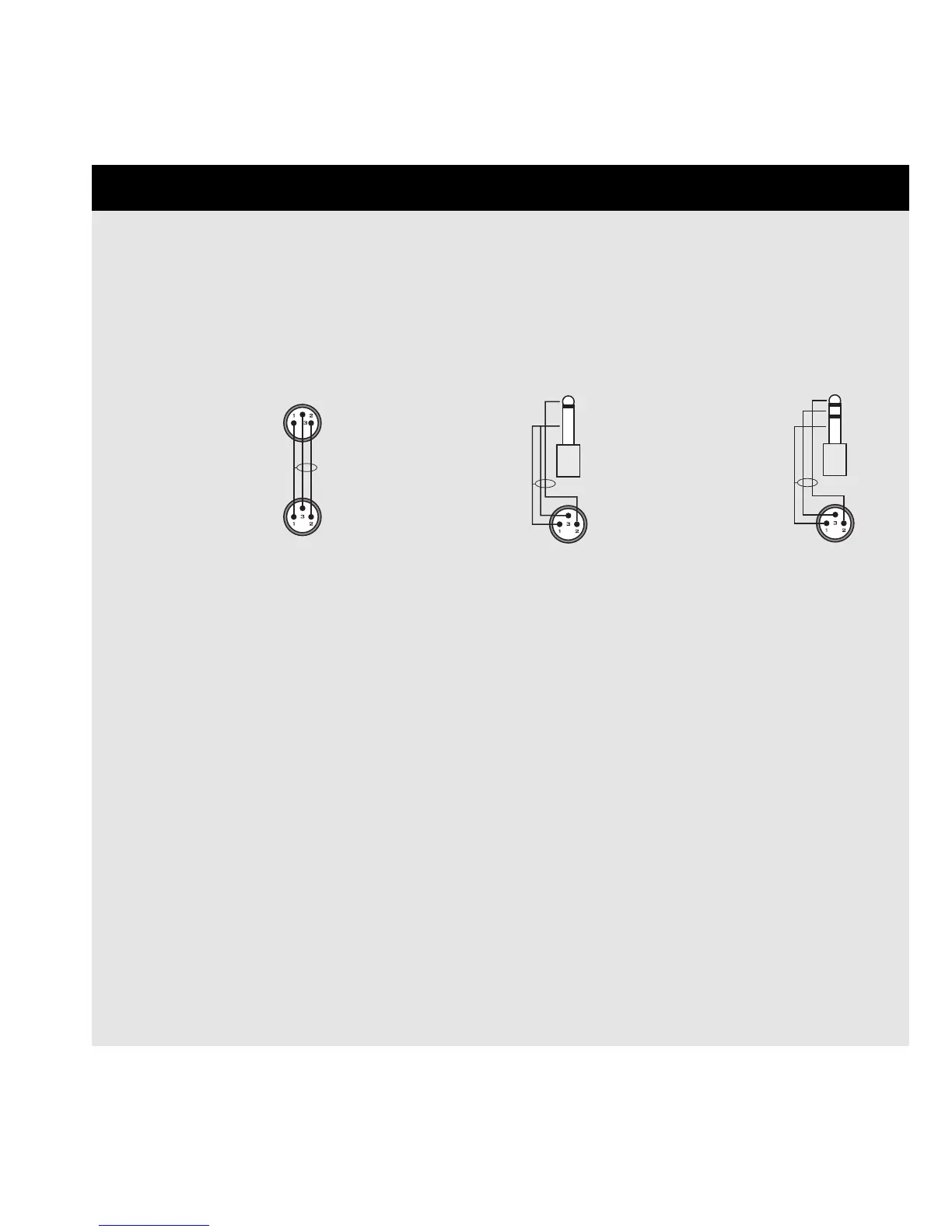

APPENDIX Soldering instructions
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
Pin 1 - Pin 1 (Ground)
Pin 2 - Pin 2 (Hot)
Pin 3 - Pin 3 (Cold)
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Sleeve - Pin 3 (Ground)
XLR - XLR Jack (unbalanced) - XLR Jack (balanced) - XLR
TIP
RING
GND
TIP
GND
