TC Electronic Finalizer Express - Soldering Instructions

28

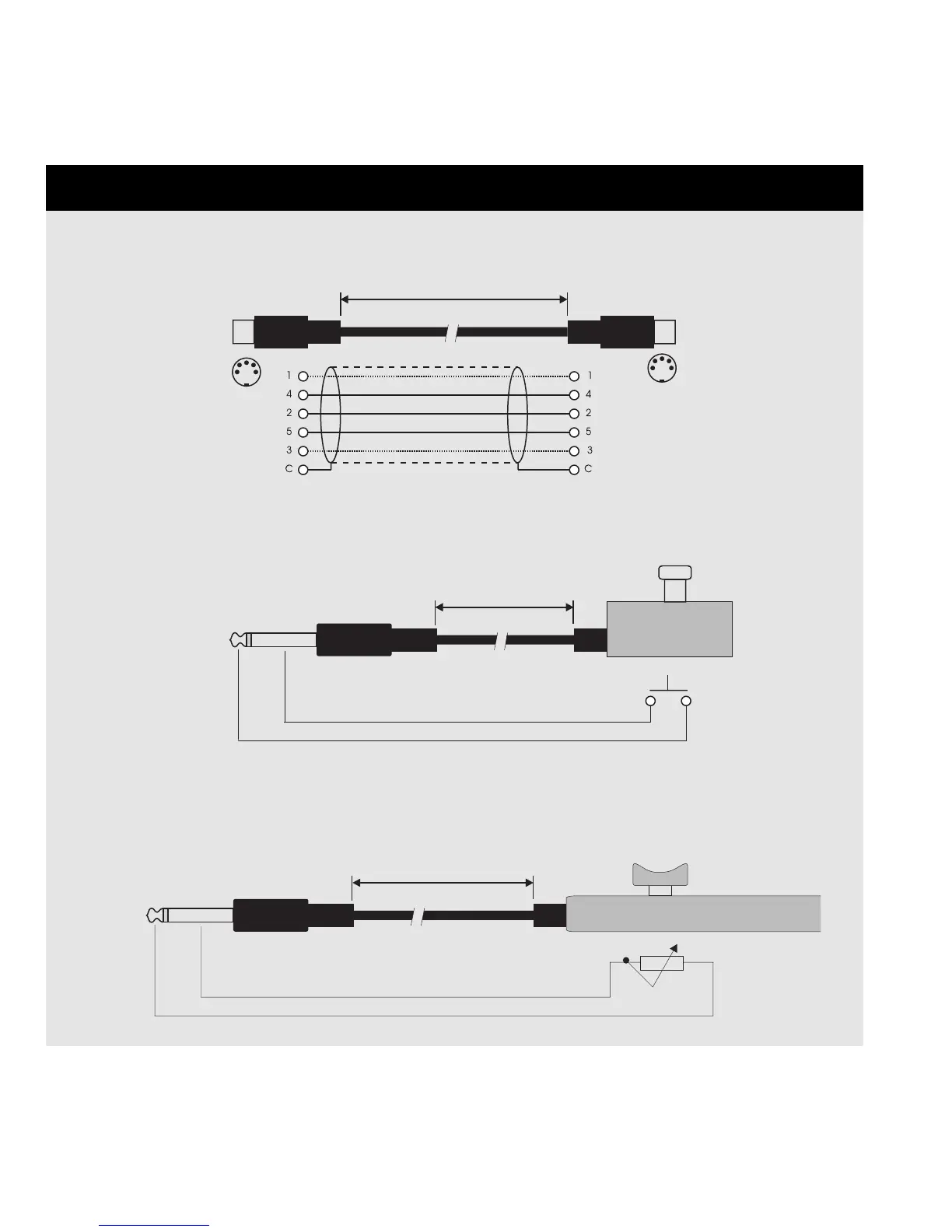

APPENDIX Soldering instructions
MIDI Cable
Pedal Cable
Fader Cable
DIN CONNECTOR
5POLE - MALE
45 degrees
DIN CONNECTOR
5POLE - MALE
45 degrees
max. 10m
JACK PLUG
Mono - male
Ø 6.35mm, 1/4”
max. 100m
2 wires
Shield/ground
Tip
Switch must be
momentary type
PEDAL SWITCH or similar
JACK PLUG
Mono - male
Ø 6.35mm, 1/4”
max. 100m
MASTER FADER or similar
2 wires
SHIELDED CABLE (3 or 5 wires + screen)
