TC Electronic FLASHBACK User Manual

15
Now,–onceyouhaveselectedTonePrint,allcontrolsreactexactlyasdefinedbytheartistthathas
providedtheTonePrint.
Bypass modes and Kill-Dry on/off

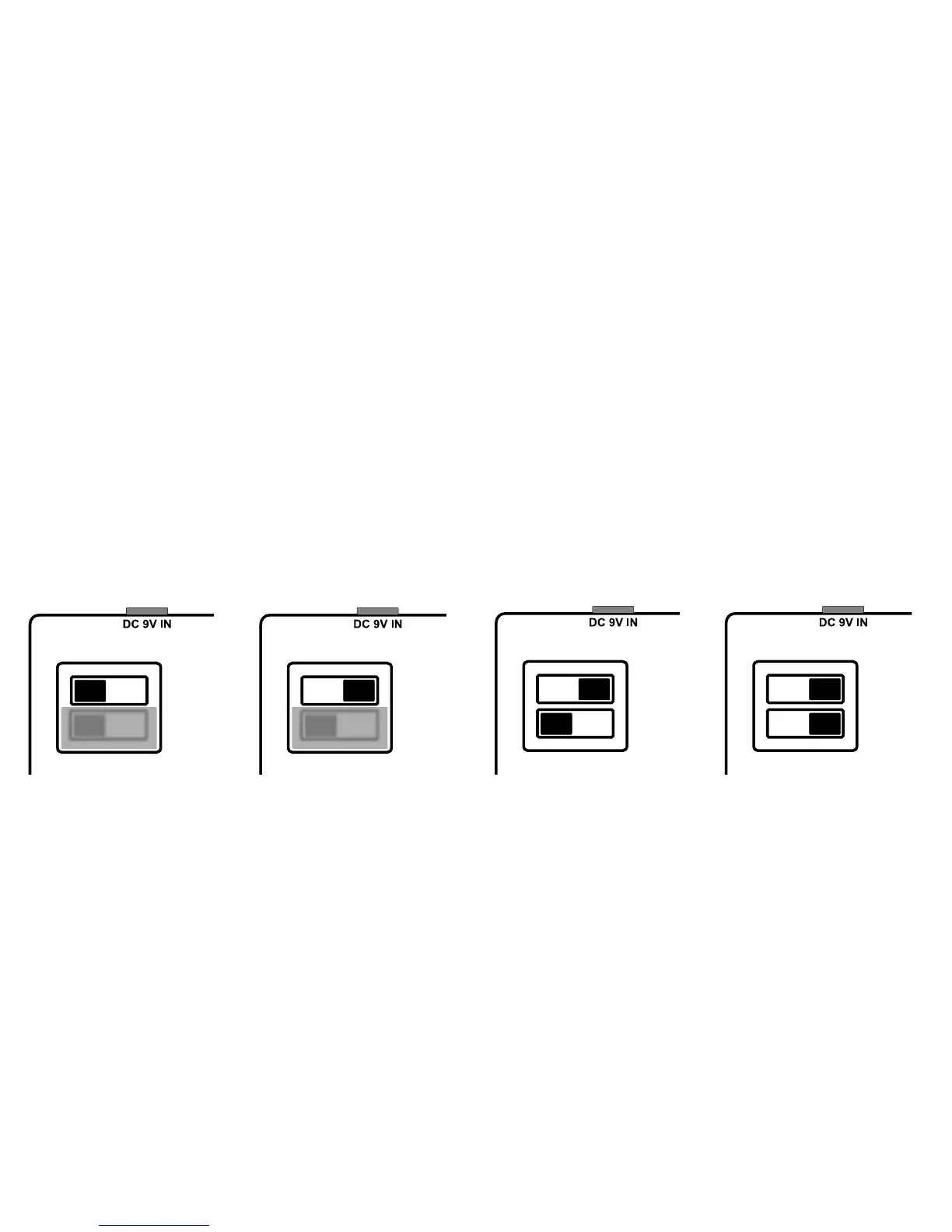

Unscrew the back-plate and look for the two small dip-switches in the upper left corner.
Theupperdip-switch(closesttotheDC9Vinconnection),switchesbetweenTrueBypassmode
(default) and Buffered Bypass mode.
True Bypass
Buffered Bypass Kill-Dry - off Kill-Dry - on
True Bypass – is a hard-wire bypass that gives absolutely no coloration of tone when the pedal
isbypassed.UsingTrueBypassonallpedalsisaperfectchoiceinsetupswithafewpedalsand
relatively short cables before and after the pedals.

TC Electronic FLASHBACK Specifications

General

Effect Type	Delay
Delay Time	Up to 7 seconds
Technology	Digital
Tap Tempo	Yes
TonePrint	Yes
Inputs	1 x 1/4" mono
Outputs	1 x 1/4" mono
True Bypass	Yes
Power Source	9V DC adapter (not included)
Modes	11 delay modes
Input Impedance	1 M Ohm
