TC Electronic System 6000 User Manual

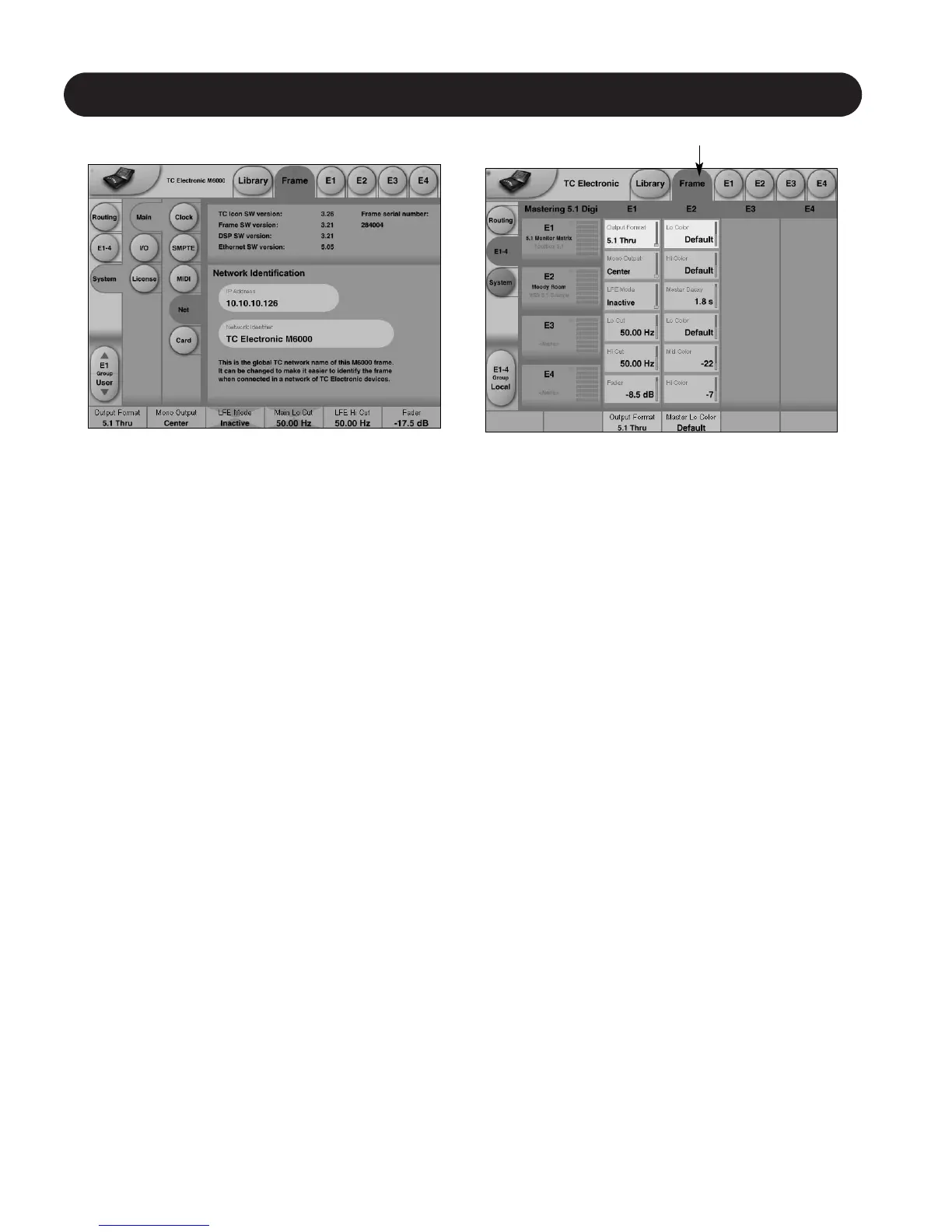

FRAME SYSTEM MAIN
Net
Software versions
Current installed software versions.
Network Identifier
Press the field “Network Identifier” to enter a name for the
Mainframe. This is the global TC network name for the
frame. By giving the frame a specific name it will be easier
to identify the frame when hooked up in a network with
several frames.
Error Indication
If “no Lock” is acheived or “Sample Slip” situations occur
this will be indicated via the small red dot in top of the
Frame Tab.
Press the Frame Tab and you will be guided to the exact
page where you can correct or compensate for these
situations. Simply press the “red” tabs.
18

TC Electronic System 6000 Specifications

General

Bit Depth	24-bit
Type	Digital Audio Processor
Connectivity	AES/EBU, MADI
Control	Remote control via software
Sample Rates	Up to 96 kHz
