USBREMOTEMONITOR
VGA
MOUSE
KEYBOARD
LAN
ETHERNET
SERIAL NO.
WARNING
AVI S
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DO NOT
EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR.
100-240VAC, 50-60Hz, 50W
CAUTION
THIS CLASS B DIGITAL DEVICE MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS AND COMPLIES WITH PART 15
OF THE FCC RULES. OPERATION SUBJECT TO CONDITIONS STATED IN THE MANUAL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
UL6500, EN/IEC 60065
PROFESSIONALAUDIO EQUIPMENT
TYPE: SYS001
MADE IN DENMARK
R
C US

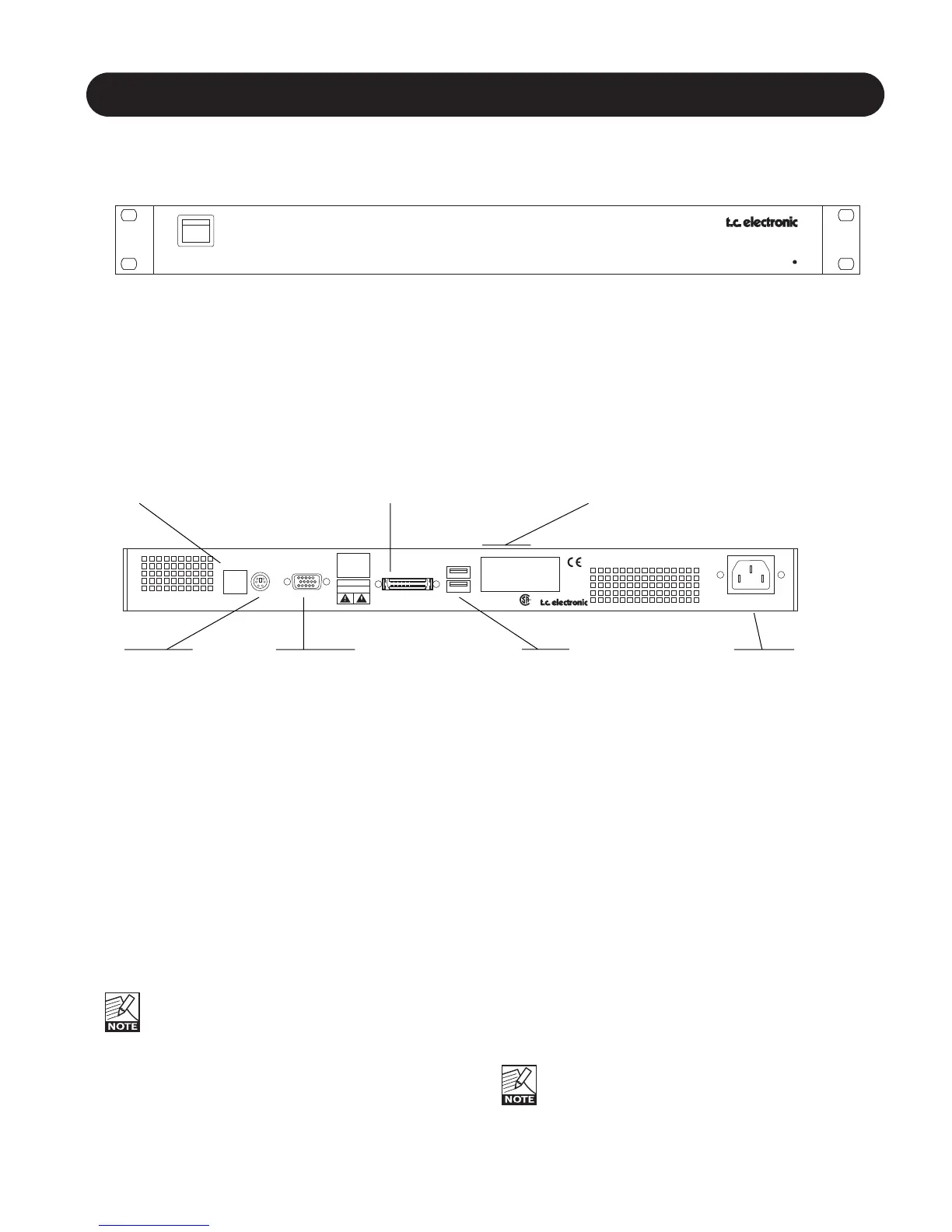

Remote CPU rear panel
Ethernet/LAN
connection
PS-2 connection
for PC keyboard
and mouse
Connection
for TC Icon
2 x USB
Type A
Standard
Connectors
Option Plate
Power In
100 - 240V
Connection for
extra VGA monitor
Power Key
Switches power On/Off.
Power On LED
The LED will turn green when power is on.
Ethernet Connection
32 bit PCI Ethernet interface fully compliant with IEE
802.3u 10/100 Mbps CSMA/CD standards.
The connector type is a 100Base-T RJ-45 (CN13)
Connection for PC keyboard or mouse
A standard PS2 Y-splitter must always be used when
connecting a PS2-mouse, a keyboard or both.
This cable is not supplied with the unit.
Connection for TC Icon
36 pin multi-cable connection for TC Icon.
TC Connection Cable.
Use the special TC Icon cable supplied with the
unit ONLY !
USB Connection
USB connection for future options.
Monitor
By connecting a monitor via this standard 15 pin D-Sub
you can have the exact same picture as displayed on the
TC Icon, running in parallel with the Icon. Color depth is 24
bit with a screen resolution of 640 x 480 pixels at 60Hz.
Option Plate
For future upgrade options.
Power
Connect 100-240V AC, 50/60Hz auto-select.
Rackmounting Advice
• The CPU unit should not be placed in an environment
with a temperature exceeding 50 degrees celsius.
• Do not cover the ventilation openings on the back of the
Remote CPU.
The cooling fan is activated according to the
temperature inside.
