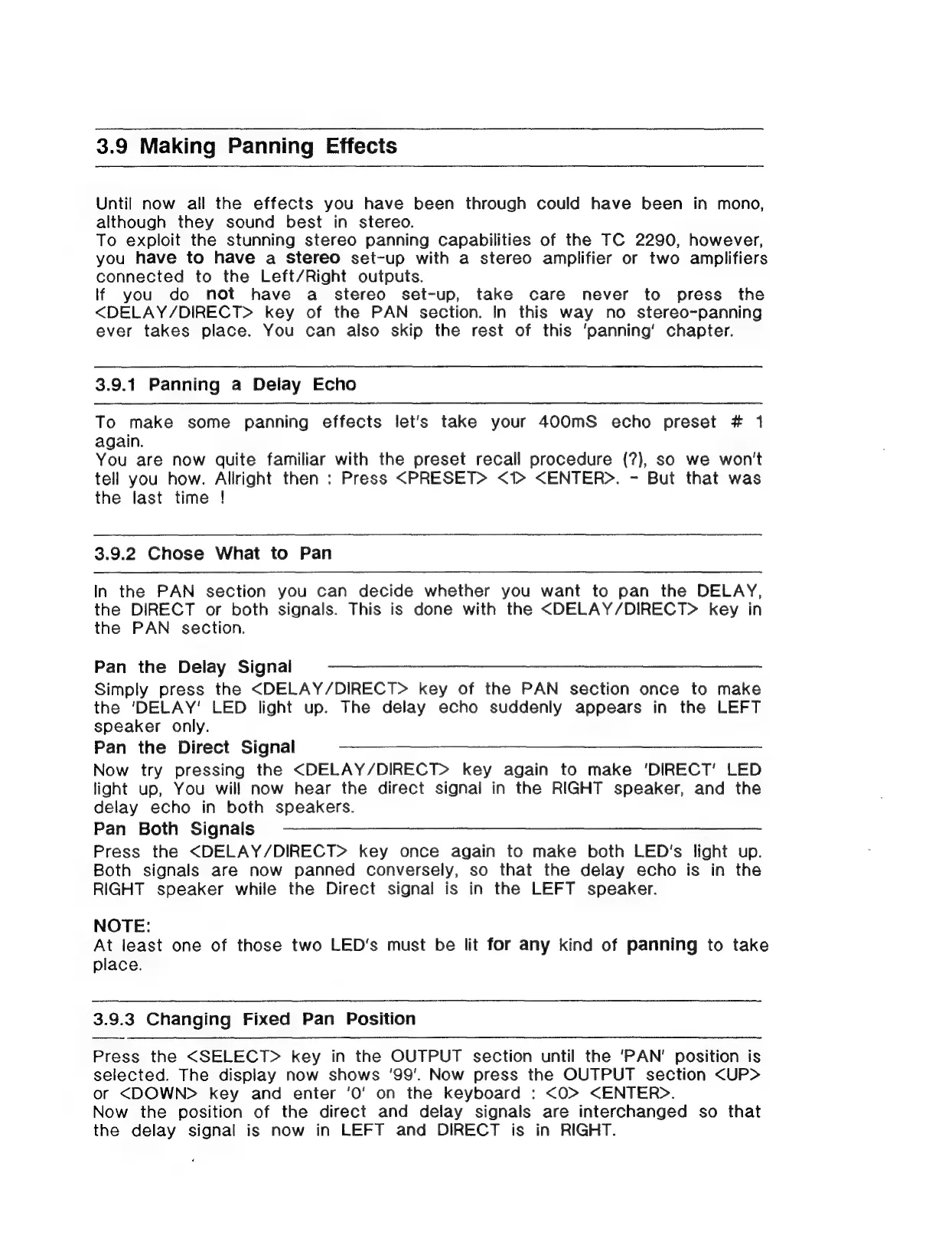

3.9 Making Panning Effects
Until now all the effects you have been through could have been in mono,
although they sound best in stereo.
To exploit the stunning stereo panning Capabilities of the TC 2290, however,
you have to have a stereo set-up with a stereo amplifier or two amplifiers
connected to the Left/Right outputs.
If you do not have a stereo set-up, take care never to press the
<DELAY/DIRECT> key of the PAN section. In this way no stereo-panning
ever takes place. You can also skip the rest of this ‘panning’ chapter.
3.9.1 Panning a Delay Echo
To make some panning effects let's take your 400mS echo preset # 1
again.
You are now quite familiar with the preset recall procedure (?), so we won't
tell you how. Allright then : Press <PRESET> <1> <ENTER>. - But that was
the last time !
3.9.2 Chose What to Pan
In the PAN section you can decide whether you want to pan the DELAY,
the DIRECT or both signals. This is done with the <DELAY/DIRECT> key in
the PAN section.
Pan
the
Delay
Signal
—
Simply
press
the
<DELAY/DIRECT>
key
of
the
PAN
section
once
to
make
the
'DELAY'
LED
light
up.
The
delay
echo
suddenly
appears
in
the
LEFT
speaker
only.
Pan the Direct Signal Å $$$
Now try pressing the <DELAY/DIRECT> key again to make 'DIRECT' LED
light up, You will now hear the direct signal in the RIGHT speaker, and the
delay echo in both speakers.
Pan Bon Signals -== == aa SS
Press the <DELAY/DIRECT> key once again to make both LED's light up.
Both signals are now panned conversely, so that the delay echo is in the
RIGHT speaker while the Direct signal is in the LEFT speaker.
NOTE:
At least one of those two LED's must be lit for any kind of panning to take
place.
3.9.3 Changing Fixed Pan Position
Press the <SELECT> key in the OUTPUT section until the 'PAN' position is
selected. The display now shows '99'. Now press the OUTPUT section <UP>
or <DOWN> key and enter 'O' on the keyboard : <0> <ENTER>.
Now the position of the direct and delay signals are interchanged so that
the delay signal is now in LEFT and DIRECT is in RIGHT.
