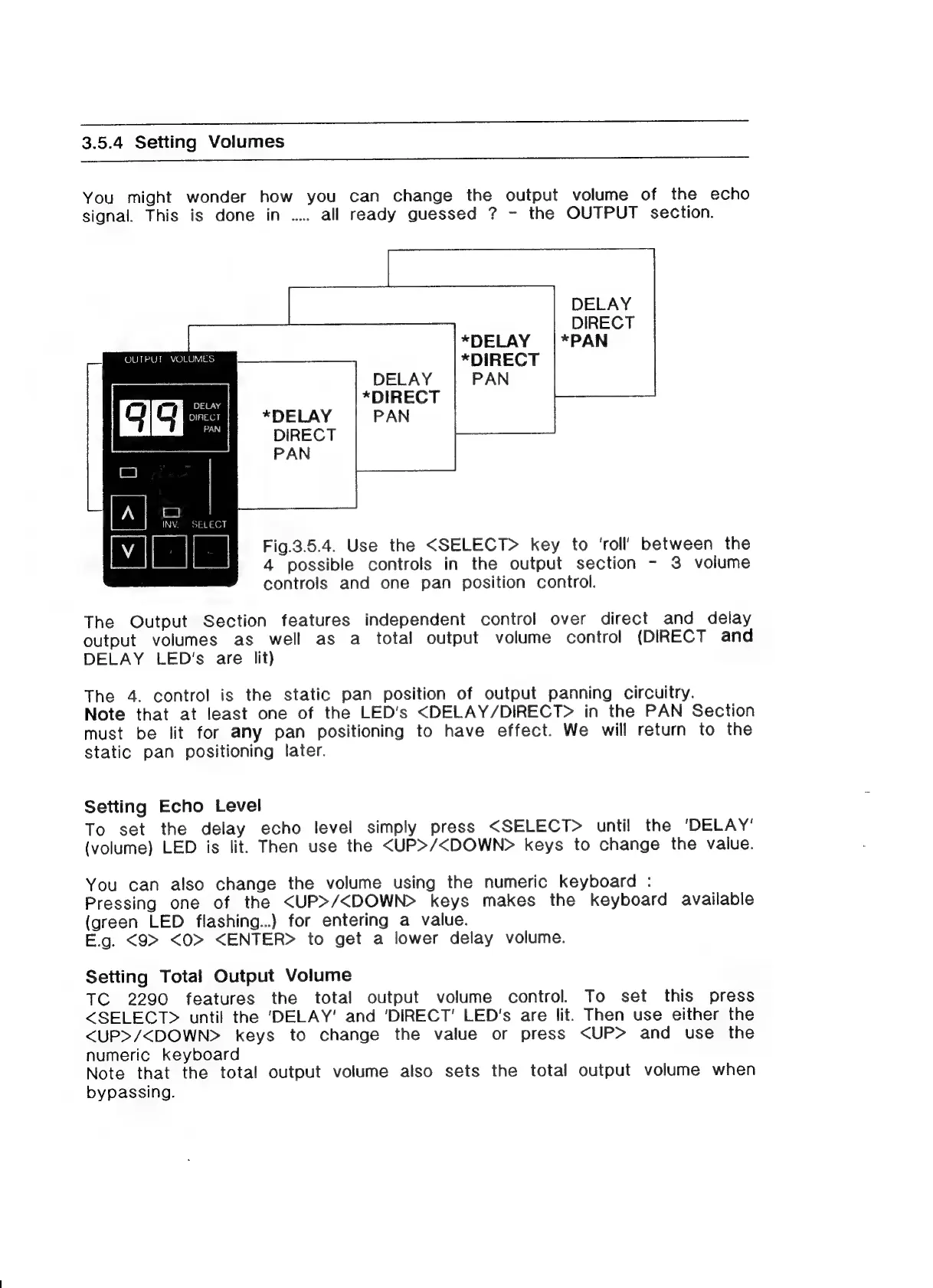

3.5.4 Setting Volumes
You
might
wonder
how
you
can
change
the
output
volume
of
the
echo
signal.
This
is
done
in
....
all
ready
guessed
?
-
the
OUTPUT
section.
DELAY
DIRECT
*PAN
OUTPUT VOLUMES
DELAY
*DIRECT
PAN
a
INV. = SELECT
[v]
|
Fig.3.5.4.
Use
the
<SELECT>
key
to
‘roll’
between
the
4
possible
controls
in
the
output
section
-
3
volume
controls and one pan position control.
The
Output
Section
features
independent
control
over
direct
and
delay
output
volumes
as
well
as
a
total
output
volume
control
(DIRECT
and
DELAY
LED's
are
lit)
The
4.
control
is
the
static
pan
position
of
output
panning
circuitry.
Note
that
at
least
one
of
the
LED's
<DELAY/DIRECT>
in
the
PAN
Section
must
be
lit
for
any
pan
positioning
to
have
effect.
We
will
return
to
the
static
pan
positioning
later.
Setting Echo Level
To
set
the
delay
echo
level
simply
press
<SELECT>
until
the
‘DELAY
'
(volume)
LED
is
lit.
Then
use
the
<UP>/<DOWN>
keys
to
change
the
value.
You
can
also
change
the
volume
using
the
numeric
keyboard
:
Pressing
one
of
the
<UP>/<DOWN>
keys
makes
the
keyboard
available
(green
LED
flashing...)
for
entering
a
value.
E.g.
<9>
<O>
<ENTER>
to
get
a
lower
delay
volume.
Setting Total Output Volume
TC
2290
features
the
total
output
volume
control.
To
set
this
press
<SELECT>
until
the
‘DELAY’
and
'DIRECT'
LED's
are
lit.
Then
use
either
the
<UP>/<DOWN>
keys
to
change
the
value
or
press
<UP>
and
use
the
numeric
keyboard
Note
that
the
total
output
volume
also
sets
the
total
output
volume
when
bypassing.
