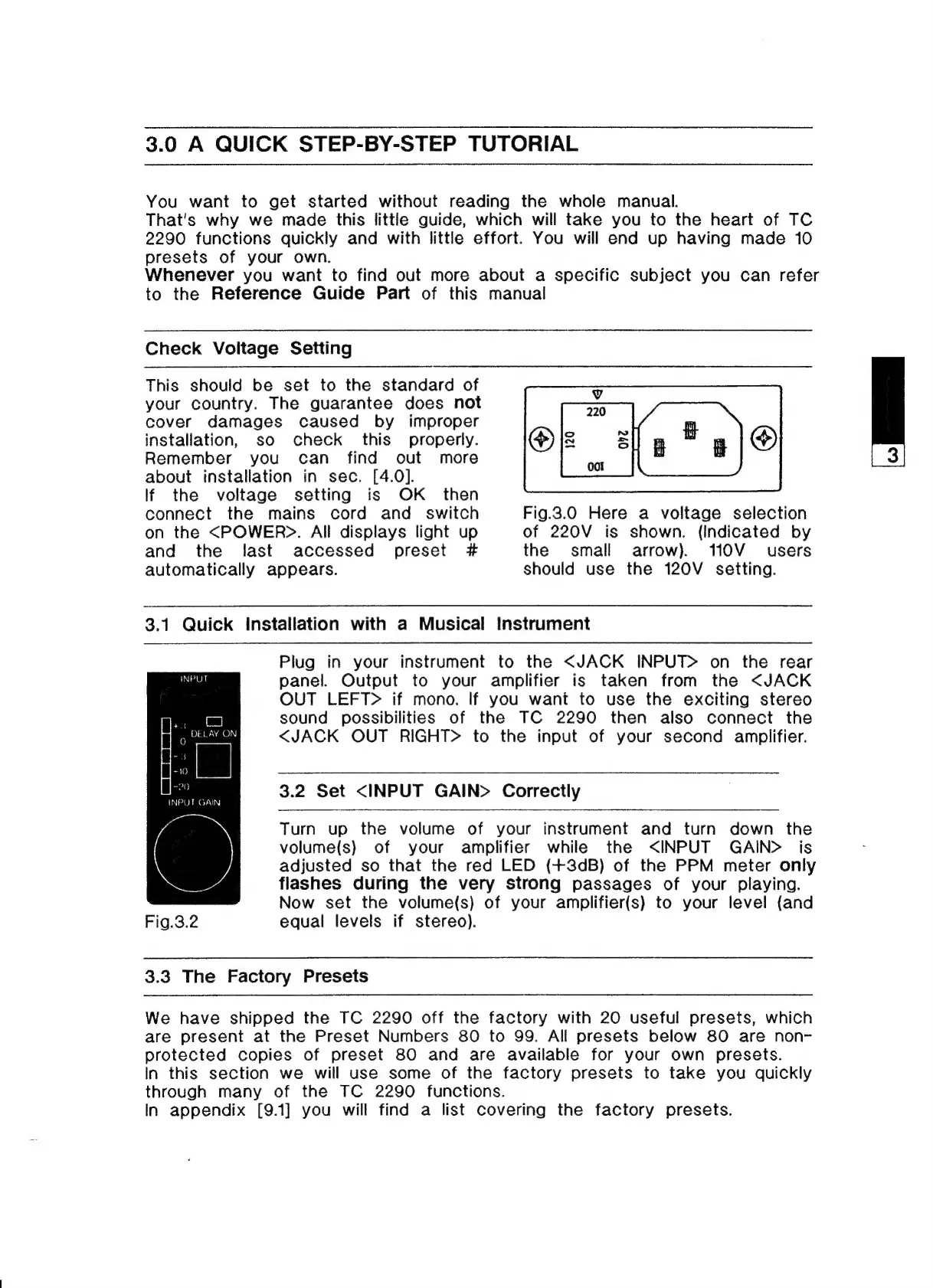

3.0 A QUICK STEP-BY-STEP TUTORIAL
You want to get started without reading the whole manual.
That's why we made this little guide, which will take you to the heart of TC
2290 functions quickly and with little effort. You will end up having made 10
presets of your own.
Whenever you want to find out more about a specific subject you can refer
to the Reference Guide Part of this manual
Check Voltage Setting
This should be set to the standard of
your country. The guarantee does not
cover damages caused by improper
installation, so check this properly.
Remember you can find out more
about installation in sec. [4.0].
If the voltage setting is OK then
connect the mains cord and switch Fig.3.0 Here a voltage selection
on the <POWER>. All displays light up of 220V is shown. (Indicated by
and the last accessed preset # the small arrow). 110V users
automatically appears. should use the 120V setting.
3.1 Quick Installation with a Musical Instrument
Plug in your instrument to the <JACK INPUT> on the rear
INPUT panel. Output to your amplifier is taken from the <JACK
OUT LEFT> if mono. If you want to use the exciting stereo
ett sound possibilities of the TC 2290 then also connect the
6 PEEN ON <JACK OUT RIGHT> to the input of your second amplifier.
z
E 3.2 Set <INPUT GAIN> Correctly
INPUT GAIN
Turn up the volume of your instrument and turn down the
volume(s) of your amplifier while the <INPUT GAIN> is
adjusted so that the red LED (+3dB) of the PPM meter only
flashes during the very strong passages of your playing.
Now set the volume(s) of your amplifier(s) to your level (and
Fig.3.2 equal levels if stereo).
3.3 The Factory Presets
We have shipped the TC 2290 off the factory with 20 useful presets, which
are present at the Preset Numbers 80 to 99. All presets below 80 are non-
protected copies of preset 80 and are available for your own presets.
In this section we will use some of the factory presets to take you quickly
through many of the TC 2290 functions.
In appendix [9.1] you will find a list Covering the factory presets.
