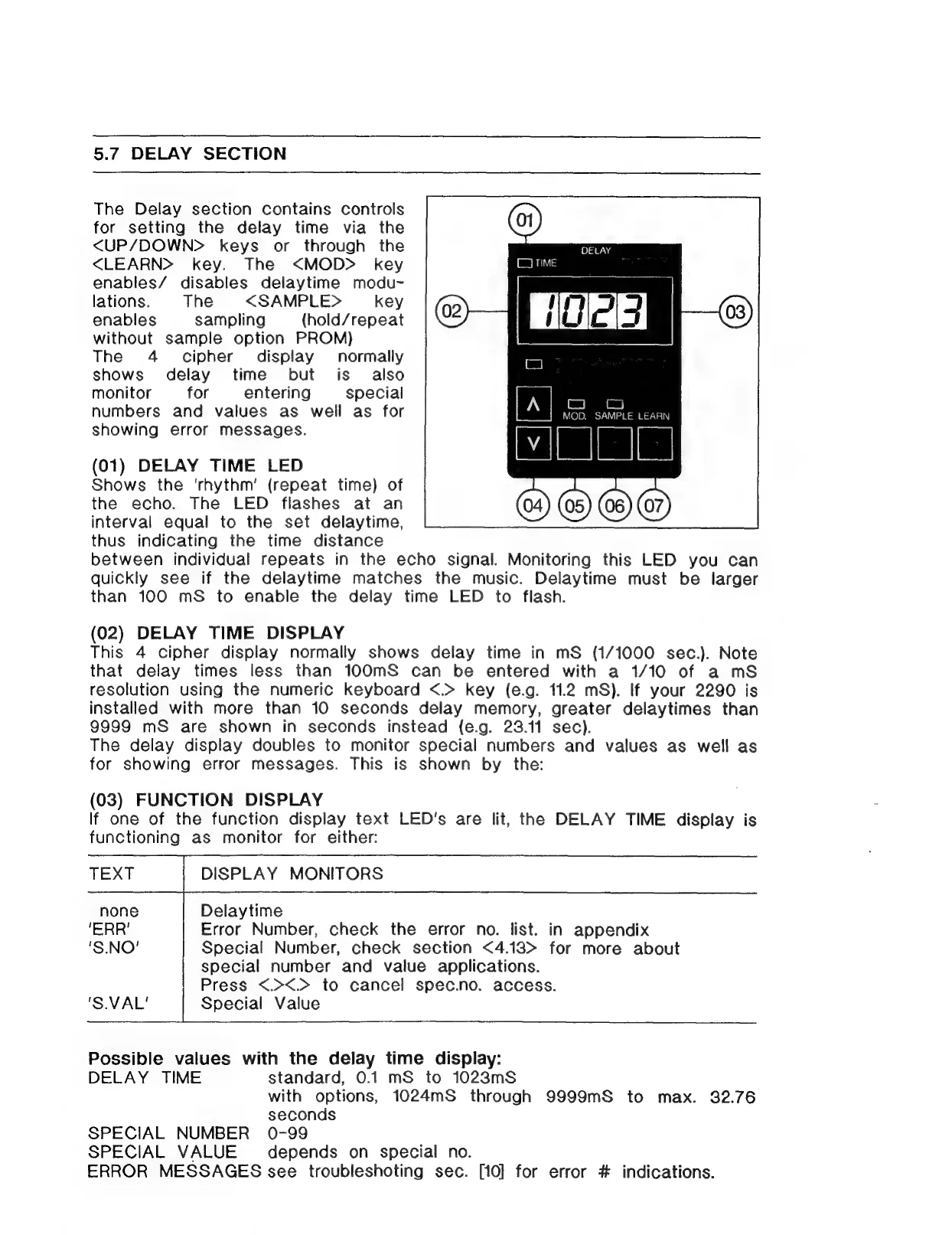

5.7 DELAY SECTION
The Delay section contains controls
for setting the delay time via the
<UP/DOWN> keys or through the
<LEARN> key. The <MOD> key
enables/ disables delaytime modu~
lations. The <SAMPLE> key
enables sampling (hold/repeat
without sample option PROM)
The 4 cipher display normally
shows delay time but is also
monitor for entering special
numbers and values as well as for
showing error messages.
(01) DELAY TIME LED
Shows the ‘rhythm’ (repeat time) of
the echo. The LED flashes at an
interval equal to the set delaytime,
thus indicating the time distance
between individual repeats in the echo signal. Monitoring this LED you can
quickly see if the delaytime matches the music. Delaytime must be larger
than 100 mS to enable the delay time LED to flash.
(02) DELAY TIME DISPLAY
This 4 cipher display normally shows delay time in mS (1/1000 sec.). Note
that delay times less than 100mS can be entered with a 1/10 of a mS
resolution using the numeric keyboard <.> key (e.g. 11.2 mS). If your 2290 is
installed with more than 10 seconds delay memory, greater delaytimes than
9999 mS are shown in seconds instead (e.g. 23.11 sec).
The delay display doubles to monitor special numbers and values as well as
for showing error messages. This is shown by the:
(03) FUNCTION DISPLAY
If one of the function display text LED's are lit, the DELAY TIME display is
functioning as monitor for either:
TEXT DISPLAY MONITORS
none Delaytime
‘ERR’ Error Number, check the error no. list. in appendix
'S.NO' Special Number, check section <4.13> for more about
special number and value applications.
Press <.><.> to cancel spec.no. access.
'S.VAL' Special Value
Possible values with the delay time display:
DELAY TIME standard, 0.1 mS to 1023mS
with options, 1024mS through 9999mS to max. 32.76
seconds
SPECIAL NUMBER 0-99
SPECIAL VALUE depends on special no.
ERROR MESSAGES see troubleshoting sec. H0} for error # indications.
