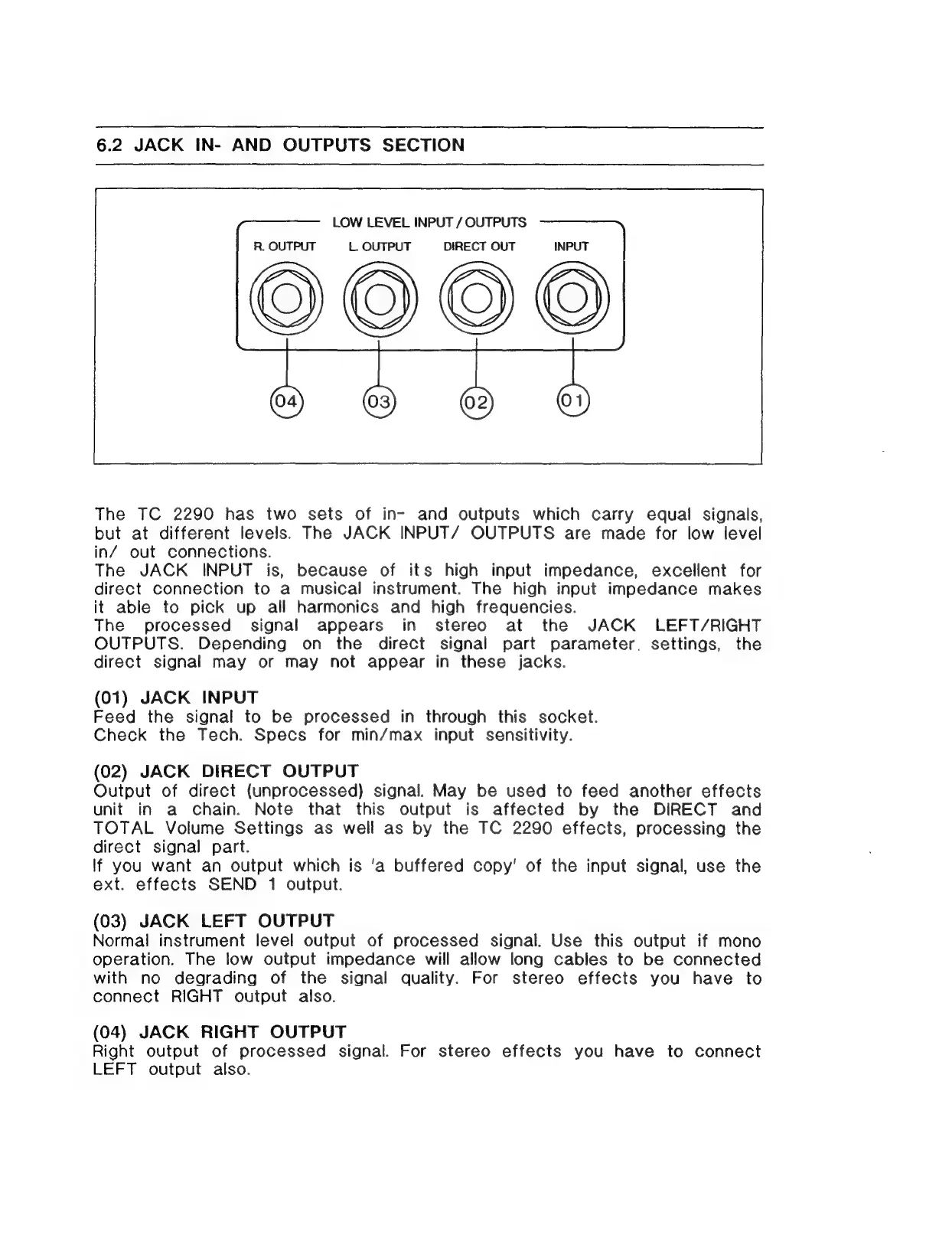

6.2 JACK IN- AND OUTPUTS SECTION
LOW LEVEL INPUT / OUTPUTS
R. OUTPUT L. OUTPUT DIRECT OUT
ONS
(CJ
SZ,
The TC 2290 has two sets of in- and outputs which carry equal signals,
but at different levels. The JACK INPUT/ OUTPUTS are made for low level
in/ out connections.
The JACK INPUT is, because of its high input impedance, excellent for
direct connection to a musical instrument. The high input impedance makes
it able to pick up all harmonics and high frequencies.
The processed signal appears in stereo at the JACK LEFT/RIGHT
OUTPUTS. Depending on the direct signal part parameter. settings, the
direct signal may or may not appear in these jacks.
(01) JACK INPUT
Feed the signal to be processed in through this socket.
Check the Tech. Specs for min/max input sensitivity.
(02) JACK DIRECT OUTPUT
Output of direct (unprocessed) signal. May be used to feed another effects
unit in a chain. Note that this output is affected by the DIRECT and
TOTAL Volume Settings as well as by the TC 2290 effects, processing the
direct signal part.
lf you want an output which is ‘a buffered copy’ of the input signal, use the
ext. effects SEND 1 output.
(03) JACK LEFT OUTPUT
Normal instrument level output of processed signal. Use this output if mono
operation. The low output impedance will allow long cables to be connected
with no degrading of the signal quality. For stereo effects you have to
connect RIGHT output also.
(04) JACK RIGHT OUTPUT
Right output of processed signal. For stereo effects you have to connect
LEFT output also.
