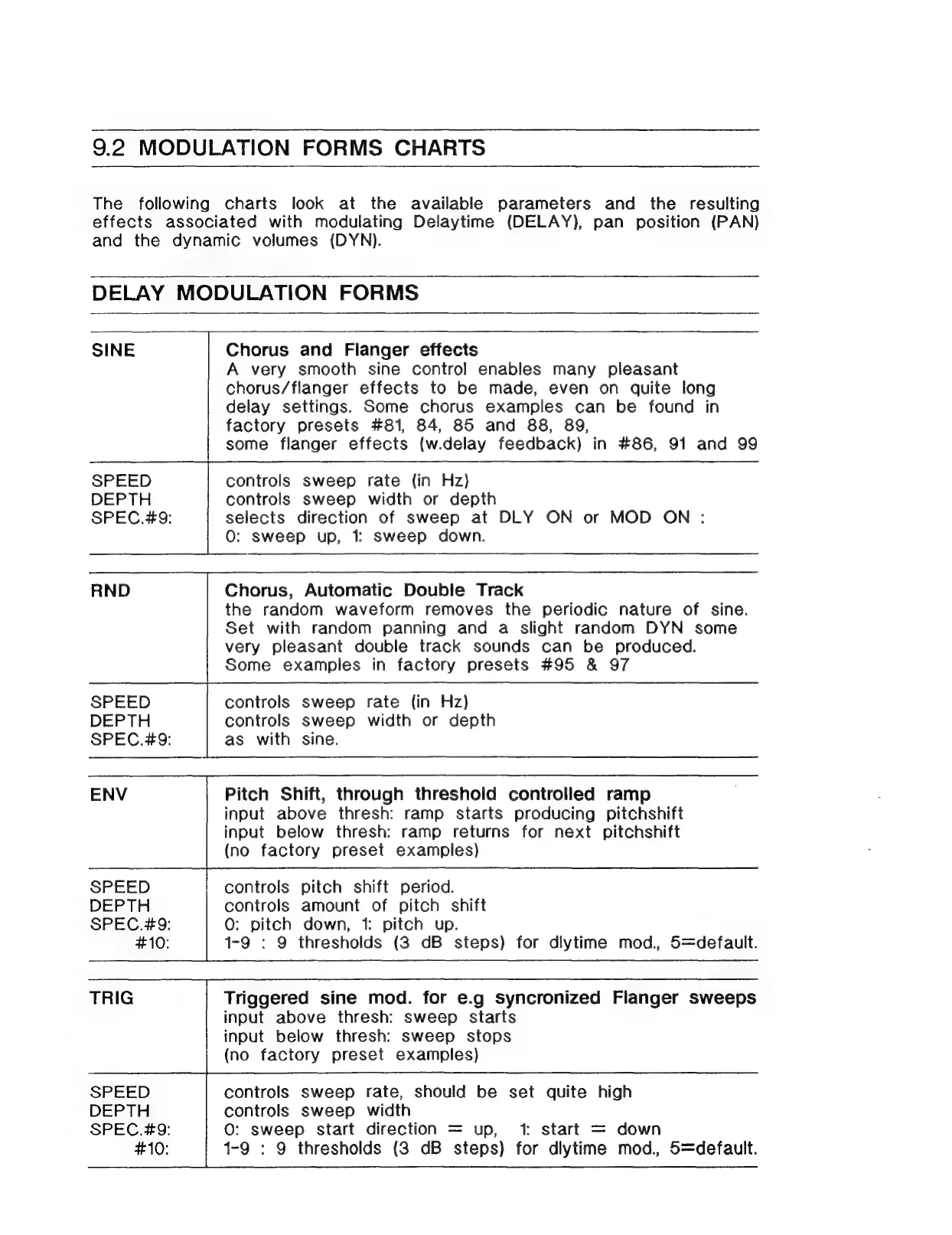

9.2 MODULATION FORMS CHARTS
The following charts look at the available parameters and the resulting
effects associated with modulating Delaytinme (DELAY), pan position (PAN)
and the dynamic volumes (DYN).
DELAY MODULATION FORMS
SINE
SPEED
DEPTH
SPEC.#9:
RND
SPEED
DEPTH
SPEC.#9:
ENV
SPEED
DEPTH
SPEC.#9:
#10:
DEPTH
SPEC.#9:
Chorus and Flanger effects
A very smooth sine control enables many pleasant
chorus/flanger effects to be made, even on quite long
delay settings. Some chorus examples can be found in
factory presets #81, 84, 85 and 88, 89,
some flanger effects (w.delay feedback) in #86, 91 and 99
controls sweep rate (in Hz)
controls sweep width or depth
selects direction of sweep at DLY ON or MOD ON :
O: sweep up, 1 sweep down.
Chorus, Automatic Double Track
the random waveform removes the periodic nature of sine.
Set with random panning and a slight random DYN some
very pleasant double track sounds can be produced.
Some examples in factory presets #95 & 97
controls sweep rate {in Hz)
controls sweep width or depth
as with sine.
Pitch Shift, through threshold controlled ramp
input above thresh: ramp starts producing pitchshift
input below thresh: ramp returns for next pitchshift
(no factory preset examples)
controls pitch shift period.
controls amount of pitch shift
O: pitch down, 1: pitch up.
1-9 : 9 thresholds (3 dB steps) for dlytime mod., 5=default.
Triggered sine mod. for e.g syncronized Flanger sweeps
input above thresh: sweep starts
input below thresh: sweep stops
(no factory preset examples)
controls sweep rate, should be set quite high
controls sweep width
O: sweep start direction = up, 1: start = down
1-9 : 9 thresholds (3 dB steps) for dlytime mod. 5=default.
