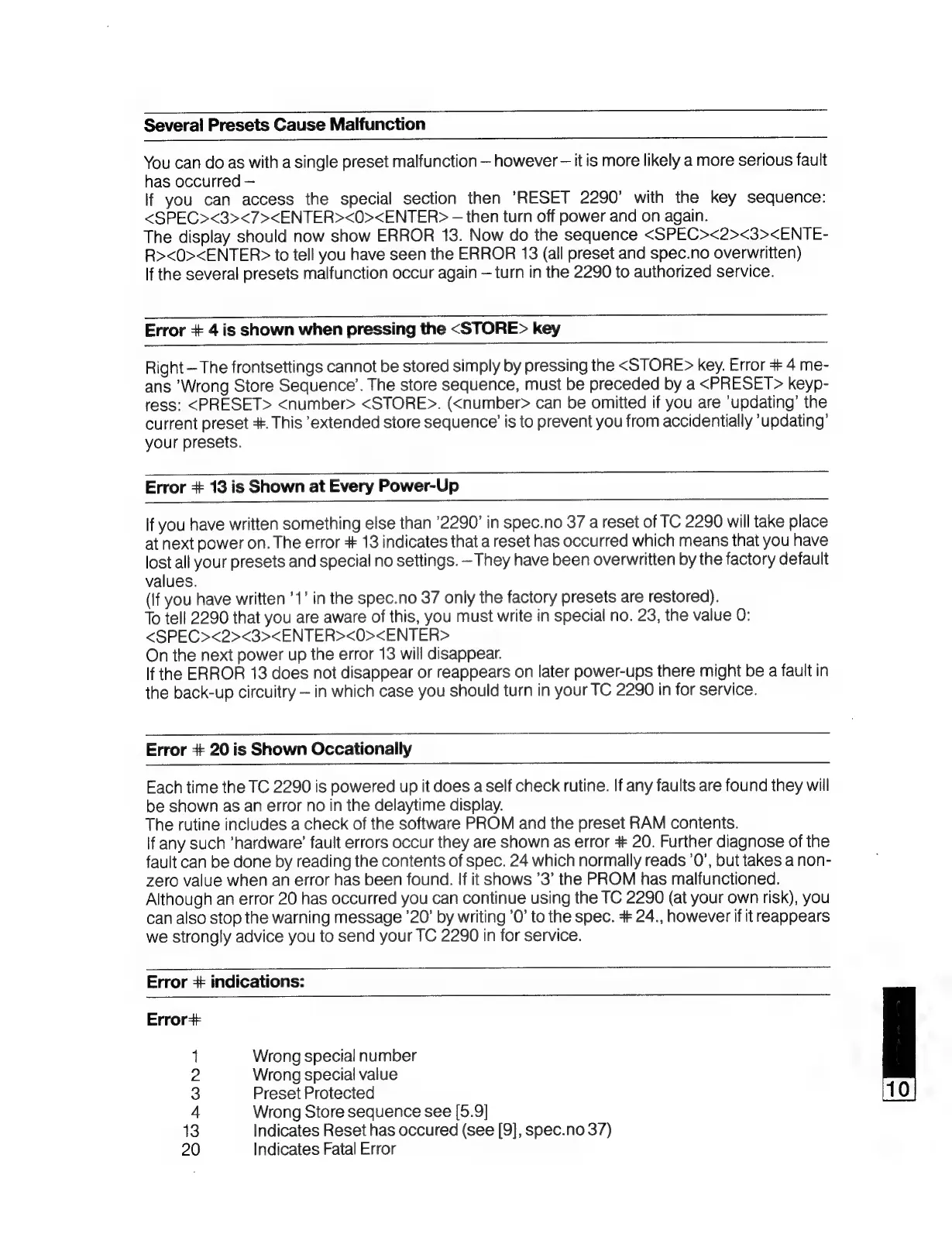

Several Presets Cause Malfunction
You
can
do
as
with
a
single
preset
malfunction
—
however
—
it
is
more
likely
a
more
serious
fault
has
occurred
—
lf you can access the special section then ‘RESET 2290’ with the key sequence:
<SPEC><3><7><ENTER><0><ENTER> — then turn off power and on again.
The
display
should
now
show
ERROR
13.
Now
do
the
sequence
<SPEC><2><3><ENTE-
R><0><ENTER?>
to
tell
you
have
seen
the
ERROR
13
(all
preset
and
spec.no
overwritten)
If
the
several
presets
malfunction
occur
again
—
turn
in
the
2290
to
authorized
service.
Error + 4 is shown when pressing the <STORE> key
Right
—
The
frontsettings
cannot
be
stored
simply
by
pressing
the
<STORE>
key.
Error
+
4
me-
ans
‘Wrong
Store
Sequence’.
The
store
sequence,
must
be
preceded
by
a
<PRESET>
keyp-
ress:
<PRESET>
<number>
<STORE>.
(<number>
can
be
omitted
if
you
are
‘updating’
the
current
preset
+.
This
extended
store
sequence’
is
to
prevent
you
from
accidentially
’updating’
your
presets.
Error + 13 is Shown at Every Power-Up
if
you
have
written
something
else
than
’2290’
in
spec.no
37
a
reset
of
TC
2290
will
take
place
at
next
power
on.
The
error
#
13
indicates
that
a
reset
has
occurred
which
means
that
you
have
lost
all
your
presets
and
special
no
settings.
—
They
have
been
overwritten
by
the
factory
default
values.
(If
you
have
written
‘1’
in
the
spec.no
37
only
the
factory
presets
are
restored).
To
tell
2290
that
you
are
aware
of
this,
you
must
write
in
special
no.
23,
the
value
0:
<SPEC><2><3><ENTER><0><ENTER>
On the next power up the error 13 will disappear.
If
the
ERROR
13
does
not
disappear
or
reappears
on
later
power-ups
there
might
be
a
fault
in
the
back-up
circuitry
—
in
which
case
you
should
turn
in
your
TC
2290
in
for
service.
Error + 20 is Shown Occationally
Each time the TC 2290 is powered up it does a self check rutine. If any faults are found they will
be shown as an error no in the delaytime display.
The rutine includes a check of the software PROM and the preset RAM contents.
lf any such ‘hardware’ fault errors occur they are shown as error + 20. Further diagnose of the
fault can be done by reading the contents of spec. 24 which normally reads ’0’, but takes a non-
zero value when an error has been found. If it shows ’3’ the PROM has malfunctioned.
Although an error 20 has occurred you can continue using the TC 2290 (at your own risk), you
can also stop the warning message '20’ by writing ’0’ to the spec. + 24., however if it reappears
we strongly advice you to send your TC 2290 in for service.
Error + indications:
Error+
1 Wrong special number
2 Wrong special value
3 Preset Protected
4 Wrong Store sequence see [5.9]
13 Indicates Reset has occured (see [9], spec.no 37)
20 Indicates Fatal Error
