TC-Helicon Quintet User Manual

13

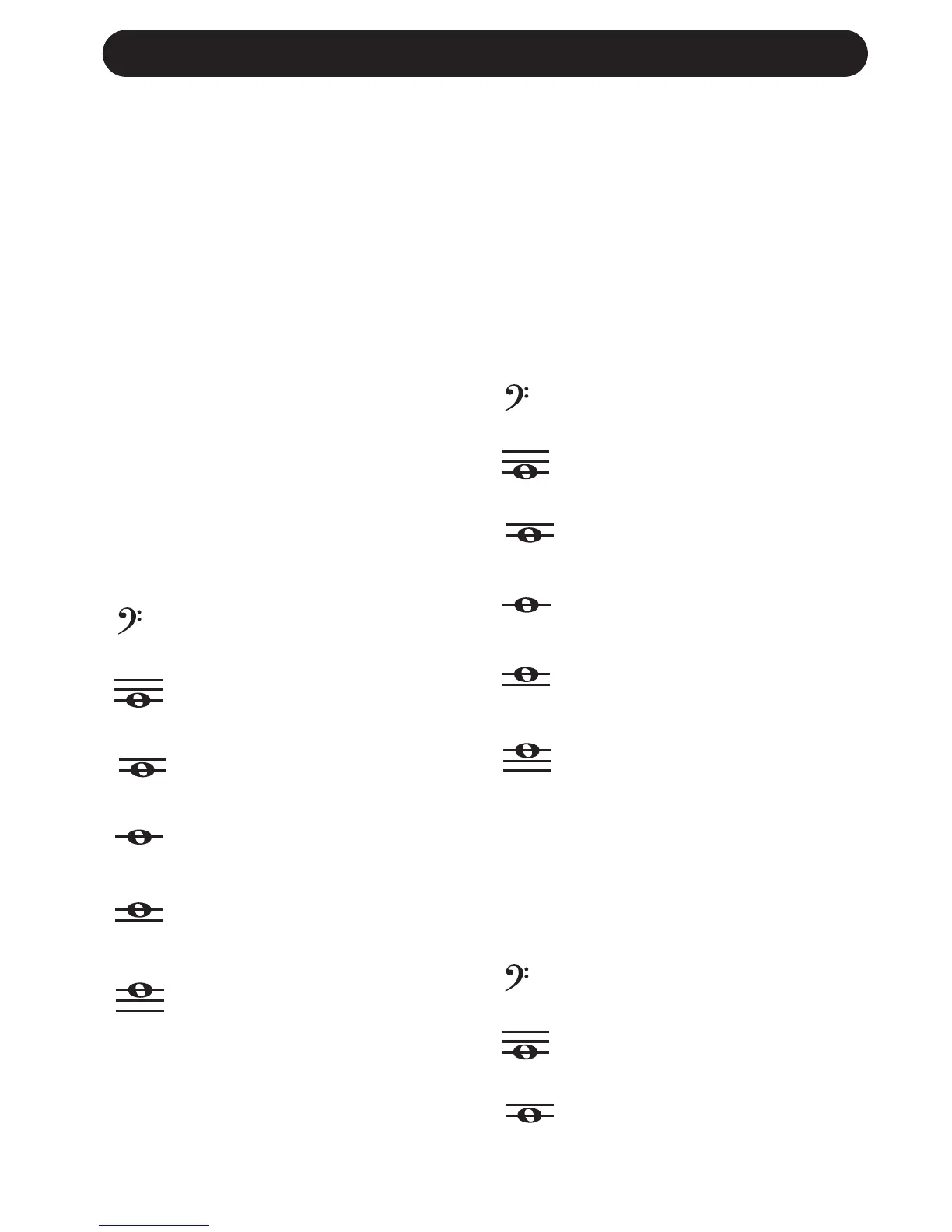

VOICE KEYS
Enables a harmony voice one
octave below the input voice.
Enables a harmony voice a sixth
below the input voice.
Enables a harmony voice a fourth
below the input voice.
Enables a voice that is in unison
with the input voice.
Enables a harmony voice a third
above the input voice.
Enables a harmony voice a fifth
above the input voice.
Enables a harmony voice that is the
root of the chord.
Enables a harmony voice in the
chord two notes below the input
note.
Enables a harmony voice in the
chord one note below the input
note.
Enables a harmony voice in the
chord closest to the input note.
Enables a harmony voice in the
chord one note above the input
note.
Enables a harmony voice in the
chord two notes above the input
note.
BASS
LOWER
TOP
LOW
UNISON
ABOVE
BASS
LOWER
TOP
LOW
Enables a harmony voice that is
two octaves below the input note.
Enables a harmony voice that is
one octave below the input note.
Enables a harmony voice that is a
fourth below the input note.
BASS
LOWER
LOW
UNISON
ABOVE
Chord Mode Presets
In this mode the VOICE KEYS produce chord-
based harmonies. In chord mode presets, the
harmony voices are always notes in the chord.
For example, the ABOVE key produces a har-
mony voice the next note above the note of
the input voice in the chord. If the Chord was
C Major and the input note was an E, the
ABOVE key would produce a G harmony
voice, just above the input E. The voicing
options for chordal mode presets are shown
below.
Shift Mode Presets
In this mode the voices are shifted a fixed
amount relative to the input note. The voicing
options for Shift mode presets are shown
below.
VOICE KEYS
These are the keys with the musical note
icons. Pressing these keys results in the
enabling/disabling of the individual harmony
voices and selects the voicing. There is a max-
imum of four voices that may be activated at a
time.
The keys provide different results depending
on the harmony mode of the preset. A quick
guide legend is printed above the VOICE
KEYS on the front of the Quintet.
Scale Mode Presets
In this mode the VOICE KEYS produce scale-
based harmonies. It is important in Scale
mode harmonies that the correct key and scale
type of the song for which the preset is being
used is selected in the edit mode.
For a full description of Scale mode harmonies
please refer to the “Harmony and Tuning” sec-
tion of the manual.

TC-Helicon Quintet Specifications

Digital Output

frequency response DIO	DC to 22/23.9 kHz ± 0.01 dB @ 44.1/48 kHz
sample rates	44.1 kHz, 48 kHz
processing delay	0.1 ms

Analog Inputs

impedance balanced	3.6 kOhm
impedance unbalanced	1.8 kOhm
line input level @ 0 dBFS	24 dBu to 0 dBu

Analog Outputs

output impedance	40 Ohm
max. output level balanced	20 dBu
max. output level unbalanced	14 dBu

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

Supplementary

dimensions	19" x 1.75" x 8.2" (483 x 44 x 195 mm)
weight	4.1 lb. (1.85 kg)
mains voltage	100 to 240 VAC, 50 to 60 Hz (auto-select)
