TC-Helicon VoiceLive User Manual

31

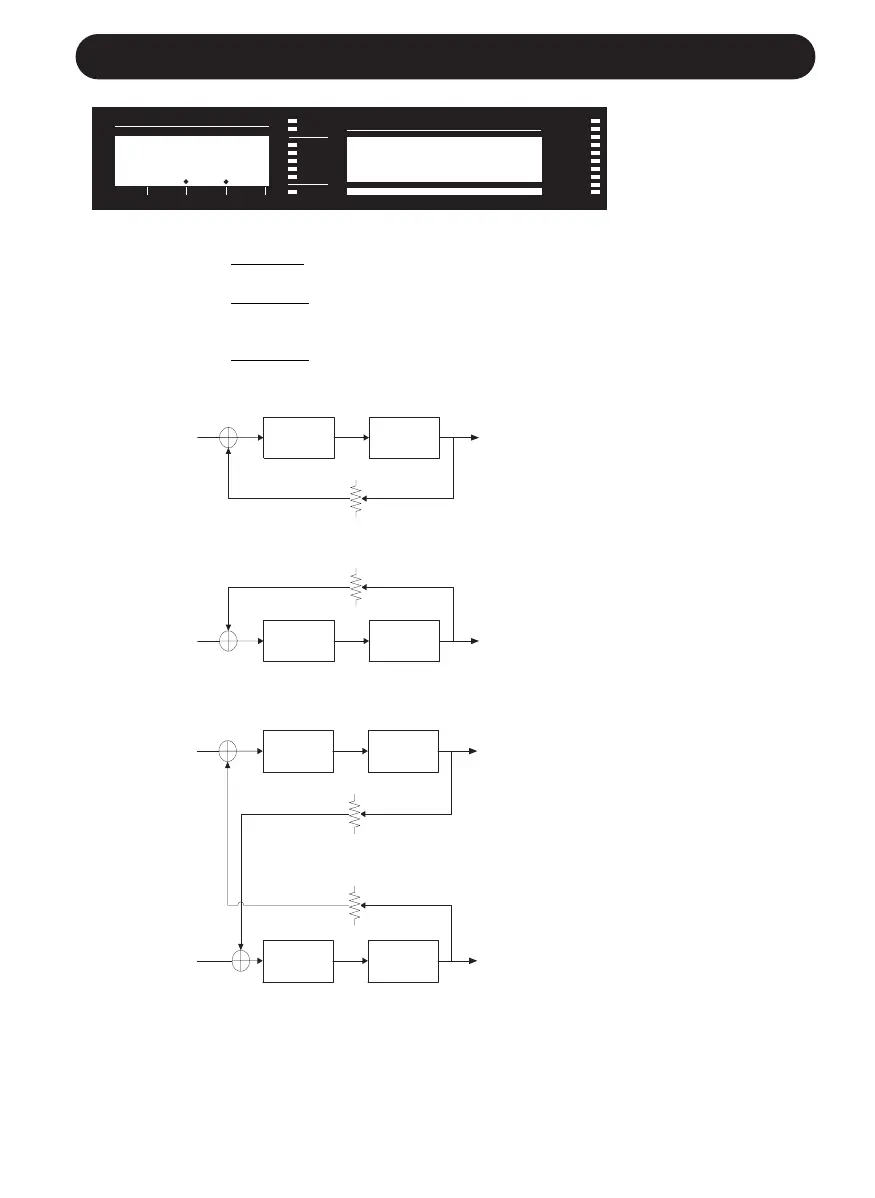

PRESET EDIT SCREENS
EDIT 1 knob: DELAY TYPE. Available parameters include:
• DualMono
Delay- maintains the panning of the harmony, lead and instrument
sends.
• PingPong1
sends the lead voice to the left effect send only and the instrument
to the right send only. This results in the lead voice’s first delay coming out of
the right side and the instrument’s coming out the left.
• PingPong2
sends the lead voice to the sends depending on the lead pan
setting.
Dual Mono Delay
PingPong1 and PingPong2 Delay
EDIT 2 knob: D
ELAY FEEDBACK AMOUNT. Increasing this value causes the delayed signal to take
longer to fade out.
EDIT 3 knob: H
IGH FREQUENCY DAMPING. Setting this to flat results in a delayed signal that is iden-
tical to the input. Setting this to 16k0 and lower values will simulate tape and is
often preferred since it results in a delay that enhances the input without being dis-
tracting.
Right Delay Send
Left Delay Send
HF Damping Delay
HF Damping Delay
Feedback
Amount
Left Delay Out
Right Delay Out
Left Delay Send
Right Delay Send
HF Damping Delay
HF Damping Delay
Feedback
Amount
Left Delay Out
Right Delay Out
Input Clip
0 PPM dB
-5
-10
Out Clip
-20
-40
HARMONY
THICKEN
EFFECTS
PITCH CORR.
I/O
UTILITIES
MIDI IN
PROGRAM DISPLAY
HARMONY | CORRECTION | EFFECTS
VOICELIVE
VOICE 2
VOICE 4
VOICE 1
VOICE 3
LIMITMIC INGLOBAL FX EDITED
PRESET# HARMONY MODE ROOT SCALE/CHORD
DlyType FB Damp
FX 6
DualMono 46% 1k0

TC-Helicon VoiceLive Specifications

Analog Inputs

mic impedance	3.6/1.8 kOhm
line impedance	21/13 kOhm
line input level at 0 dBFS	24 dBu to 0 dBu

Analog Outputs

output impedance	40 Ohm
max output level balanced	20 dBu
max output level unbalanced	14 dBu

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

Supplementary

dimensions	11.1" x 10.25" x 3.5" (282 x 260 x 89 mm)
weight	5.9 lb. (2.7 kg)
mains voltage	100 to 240 VAC, 50 to 60 Hz (auto-select)
