TC-Helicon VoiceLive User Manual

44

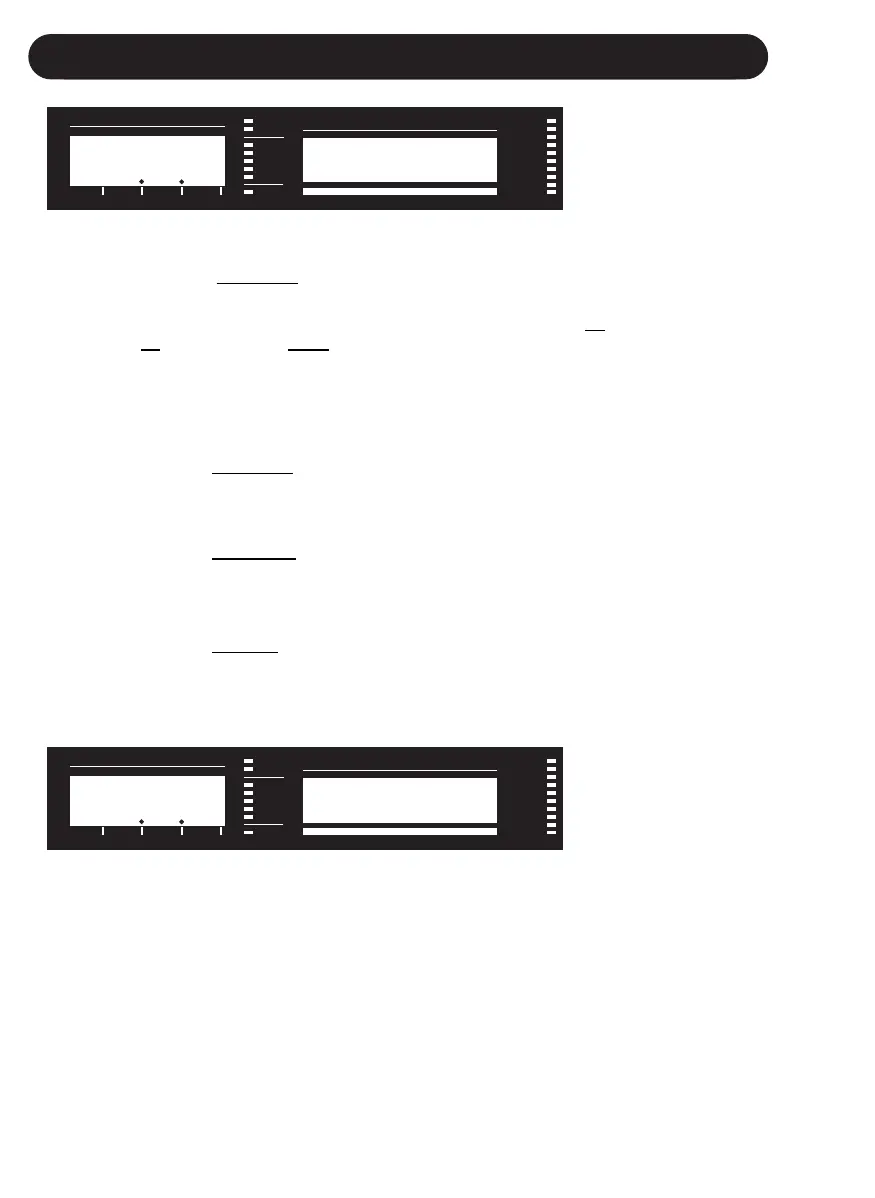

SONG MODE
In this screen the selection from the first knob affects the options in the second knob. Once you
have made the selections you must press the DATA WHEEL for ENTER to perform the function.
EDIT 1 knob selection: MIDI Dump
. Allows SYSEX MIDI dumping of all or individual presets, all or
individual Songs and the VoiceLive IO/Util parameters.
• Select what you would like to backup using the EDIT2 KNOB. P
n denotes a preset;
Sn Denotes a song; Setup
is all IO/Util parameters.
• If connected to another VoiceLive simply press ENTER and your data will be copied
to the other VoiceLive.
• If connected to a sequencer, arm it to record SYSEX data and press ENTER on
VoiceLive.
EDIT 1 knob selection: RestorePre
. Restore a Preset to its Factory setting.
• Select what preset you would like to restore using the EDIT2 knob.
• Press ENTER to restore the preset.
EDIT 1 knob selection: RestoreSng
. Restore a Song to its Factory setting.
• Select what Song you would like to restore using the EDIT2 knob.
• Press ENTER to restore the song.
EDIT 1 knob selection: ClearSng
. Clear song steps and name of a song.
• Select what song you would like to clear using the EDIT2 knob.
• Press ENTER to clear the song.
VoiceLive will operate properly with most passive volume and expression pedals. Use this screen
to calibrate the pedal. To calibrate the expression pedal follow instructions on the VoiceLive LCD
display:
With the expression pedal plugged into the Pedal Input on the back of VoiceLive press the DATA
wheel for ENTER.
• Move the pedal to its MAXIMUM position.
• Press the data wheel for ENTER.
• Move the pedal to it’s MINIMUM position.
• Press the data wheel for ENTER.
Input Clip
0 PPM dB
-5
-10
Out Clip
-20
-40
HARMONY
THICKEN
EFFECTS
PITCH CORR.
I/O
UTILITIES
MIDI IN
PROGRAM DISPLAY
HARMONY | CORRECTION | EFFECTS
VOICELIVE
VOICE 2
VOICE 4
VOICE 1
VOICE 3
LIMITMIC INGLOBAL FX EDITED
PRESET# HARMONY MODE ROOT SCALE/CHORD
PedalCalibration
UT 9
<Enter> to Start
Input Clip
0 PPM dB
-5
-10
Out Clip
-20
-40
HARMONY
THICKEN
EFFECTS
PITCH CORR.
I/O
UTILITIES
MIDI IN
PROGRAM DISPLAY
HARMONY | CORRECTION | EFFECTS
VOICELIVE
VOICE 2
VOICE 4
VOICE 1
VOICE 3
LIMITMIC INGLOBAL FX EDITED
PRESET# HARMONY MODE ROOT SCALE/CHORD
<Function> Item
UT 8
MIDI Dump P-All

TC-Helicon VoiceLive Specifications

Analog Inputs

mic impedance	3.6/1.8 kOhm
line impedance	21/13 kOhm
line input level at 0 dBFS	24 dBu to 0 dBu

Analog Outputs

output impedance	40 Ohm
max output level balanced	20 dBu
max output level unbalanced	14 dBu

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

Supplementary

dimensions	11.1" x 10.25" x 3.5" (282 x 260 x 89 mm)
weight	5.9 lb. (2.7 kg)
mains voltage	100 to 240 VAC, 50 to 60 Hz (auto-select)
