No. Part No. Part Name Q’ty Remark
1 41106-002236 Front Panel 1
2 42008-000037 Air Filter 2
3 41106-002371 Face Frame 1
4 41201-000068 Electrical Box Cover 1
5 31102-000084 Display PCB 1
6 42003-000001 Display PCB Box 1
7 92011-002804 Evaporator 1
8 41108-000066 Screw Cover 1
9 42004-000039 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000262 Indoor Motor 1
12 41101-000242 In And Out Pipe Fixer 1
13 42003-000060 Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15 31101-000186 Main PCB 1
16 / Transformer /
17 42001-000103 Cable Clamp 1
18 22001-000313 Vane Motor 1
19 41199-002735 Base 1
20 41101-000081 Vertical Vane Assembly 2
21 41103-000225 Vane 1
22 41109-000042 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000777 Remote Controller 1
25 A1101-008680 Indoor Carton 1
26 41110-000221 Left Foaming 1
27 41110-000260 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view

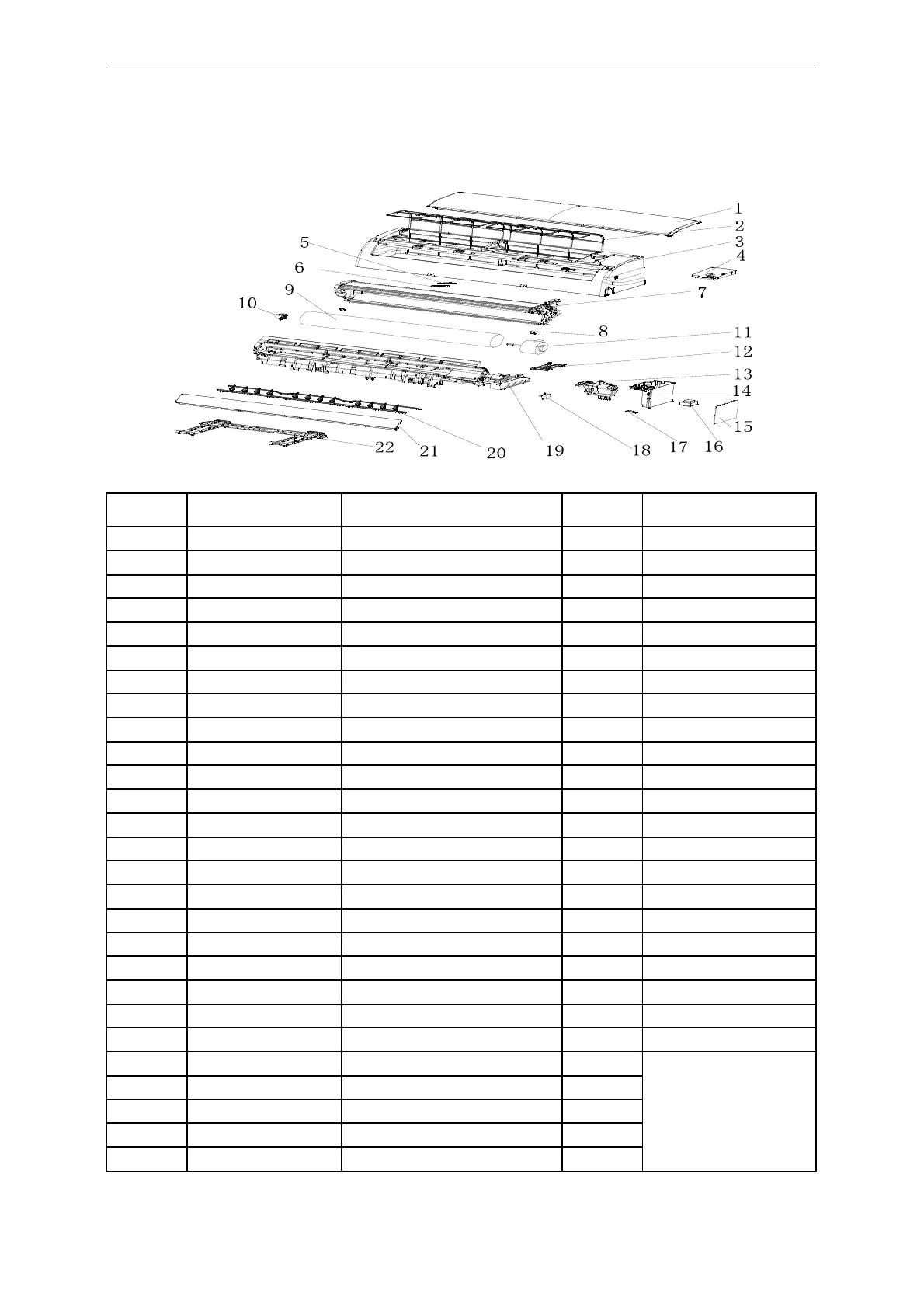

6. Explosion view and parts
Indoor Unit- FMA-09CHSD/DVI
To Next Page
