TCL FMA-09CHSD/DVI User Manual

TCL Air Conditioner Service Manual

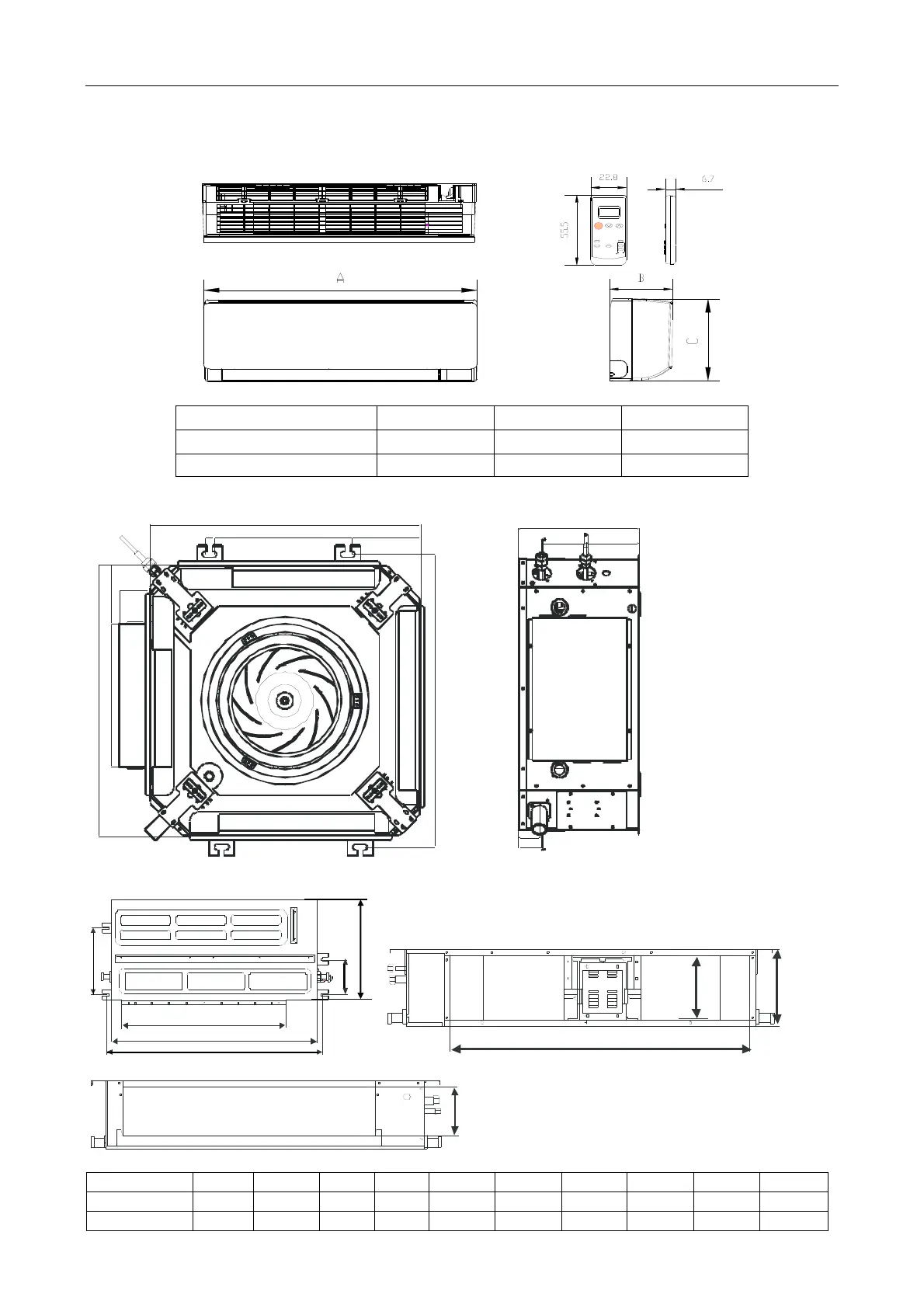

2. Product Dimensions
Indoor Unit:
Wall split type
Model A B C
FMA-09CHSD/DVI 770 205 250
FMA-12CHSD/DVI 770 205 250
Cassett
e type
580
19
620
304
58
0
124
64
144293
50
113
95
255
45
Duct ty
pe
Model
A B C D E F G H I J
7/9/12K 700 447 200 570 172 510 140 738 298 158
18K 920 447 200 790 172 730 140 958 298 158
A
H
F
I
J
B
E
C
G
D
2

TCL FMA-09CHSD/DVI Specifications

General

Brand	TCL
Model	FMA-09CHSD/DVI
Category	Air Conditioner
Language	English
