No. Part No. Part Name Q’ty Remark
1 / indoor chasiss 1
2 22001-000197 indoor motor 1
3 230701325 indoor fan 1
4 / base of evaporator 1
5 / evaporator 1
6 / capacitor of indoor motor 1
7 11304-100017 terminal 1
8 / drain pan 1
9 A2007-000108 panel 1
10 / vane 4
11 32801-000002 display PCB 1
12 230901537 swing motor 1
13 22011-000001 Inductor 1
14 31101-000604 Indoor main PCB 1
15 230901539 pump 1
16 230901538 water level switch 1
17 22013-000777 remote controller 1
18 10104-100052 Indoor pipe sensor 1
19 10104-100051 Indoor room sensor 1

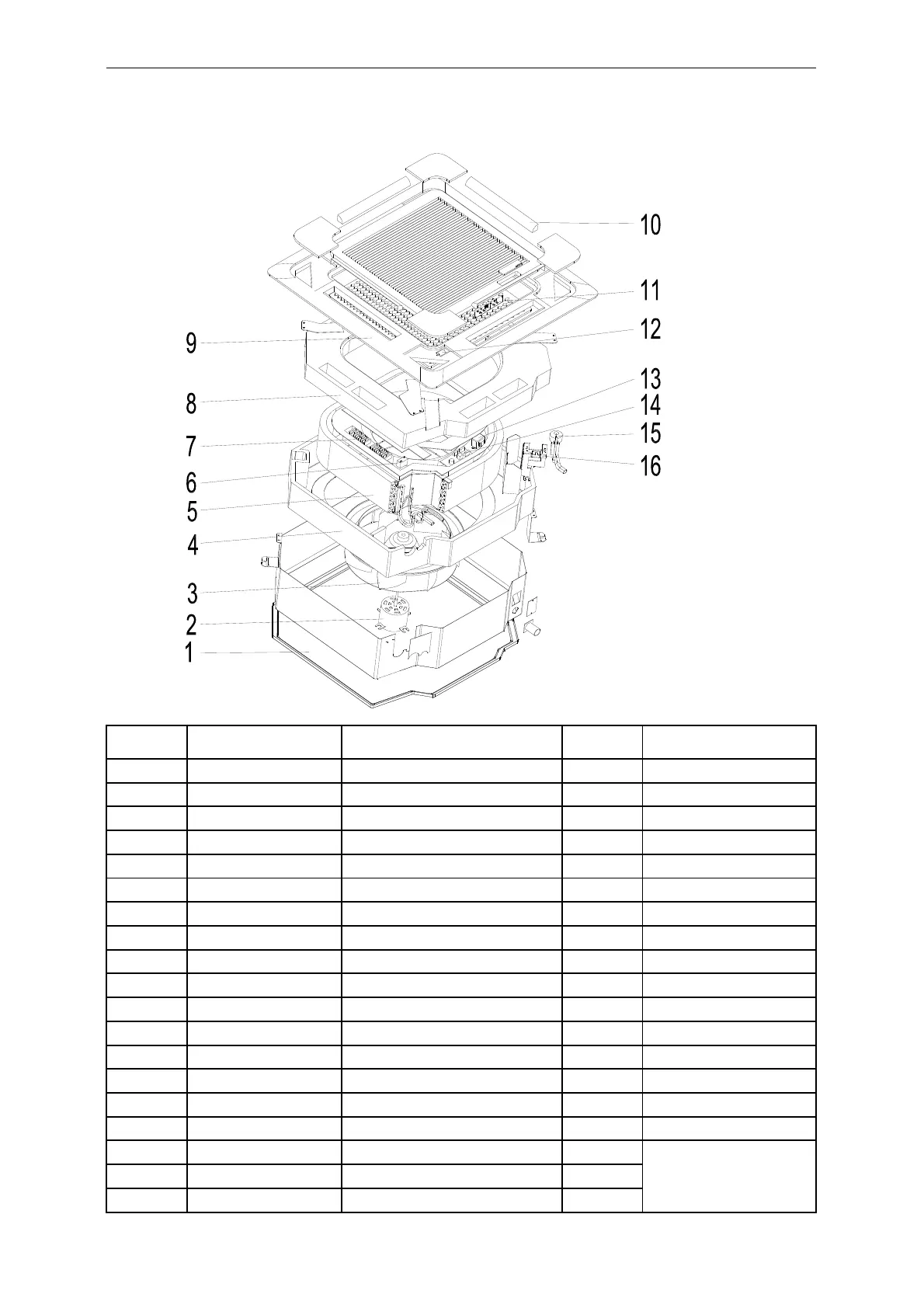

TCL Air Conditioner Service Manual
Indoor Unit- FMA-09CRD/DVI(Q4)
Not shown in
Explosion view
To Next Page
