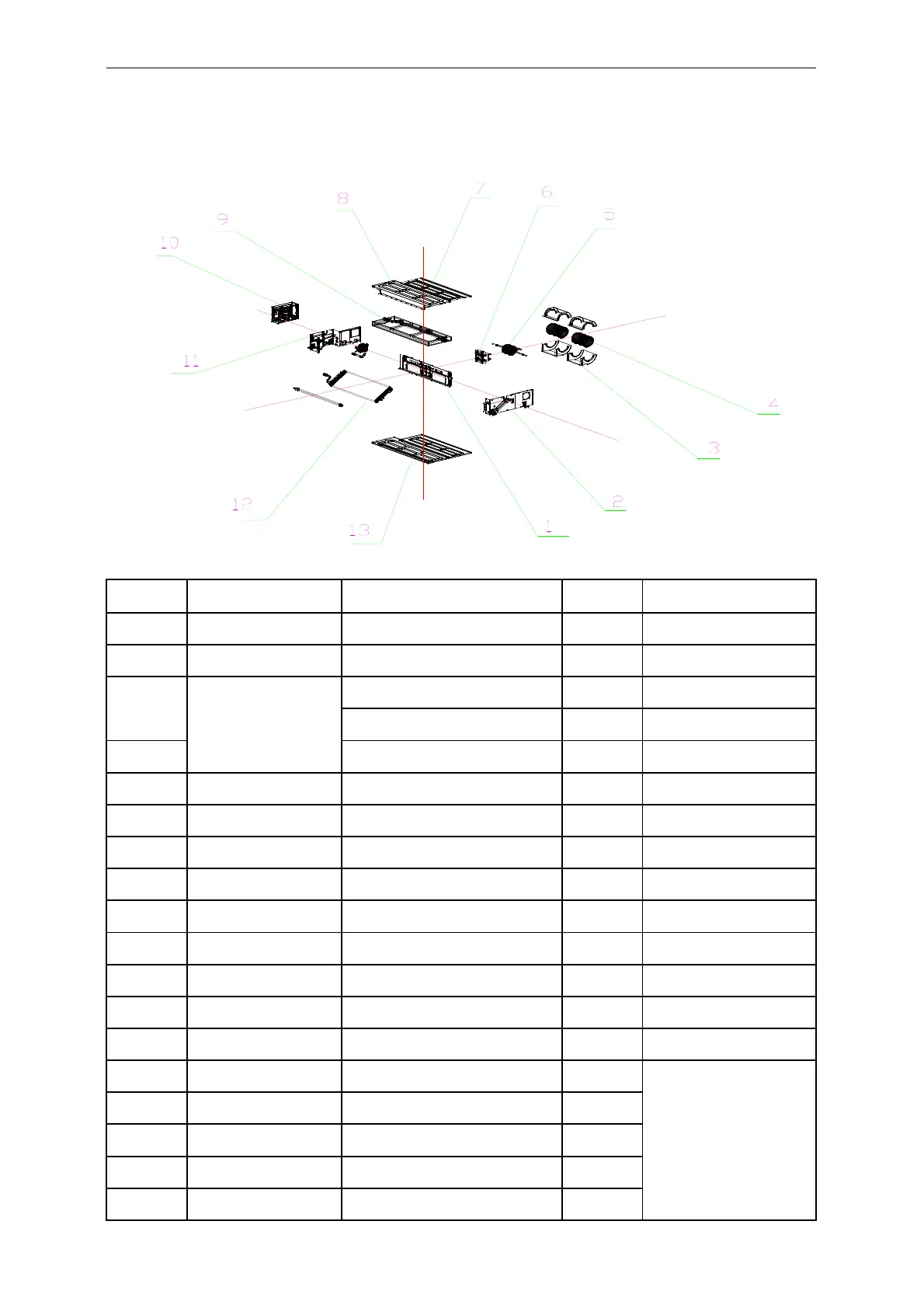

TCL FMA-09CHSD/DVI

No. Part No. Part Name Q’ty Remark
1 41399-000037 Median plate 1
2 41205-000112 Left plate assembly 1
Up foam shell 2
Down foam shell 2
4 Indoor fan 2
5 22001-000173 Indoor fan motor 1
6 41214-000173 Supporter for fan motor 1
7 41214-000252 Air inlet plate 1
8 230801031 Base plate 1
9 41308-000006 Drain tray assembly 1
10 41105-000107 Electronic box 1
11 41205-000008 Right plate assembly 1
12 92011-003045 Evaporator subassembly 1
13 41399-000008 Top cover 1
14 31101-000604 Main pcb 1
15 32901-000002 Display PCB 1
16 22013-000777 Remote Controller 1
17 10104-100051 Room sensor 1
18 10104-100049 Pipe sensor 1
TCL Air Conditioner Service Manual
Indoor Unit- FMA-12D5RD/DVI
3
41304-000022
Not shown in
Explosion view
22
