TCL Air Conditioner Service Manual
In heating operation, if air conditioner turn off, the indoor fan motor will run most for 30
seconds since the stop of compressor.

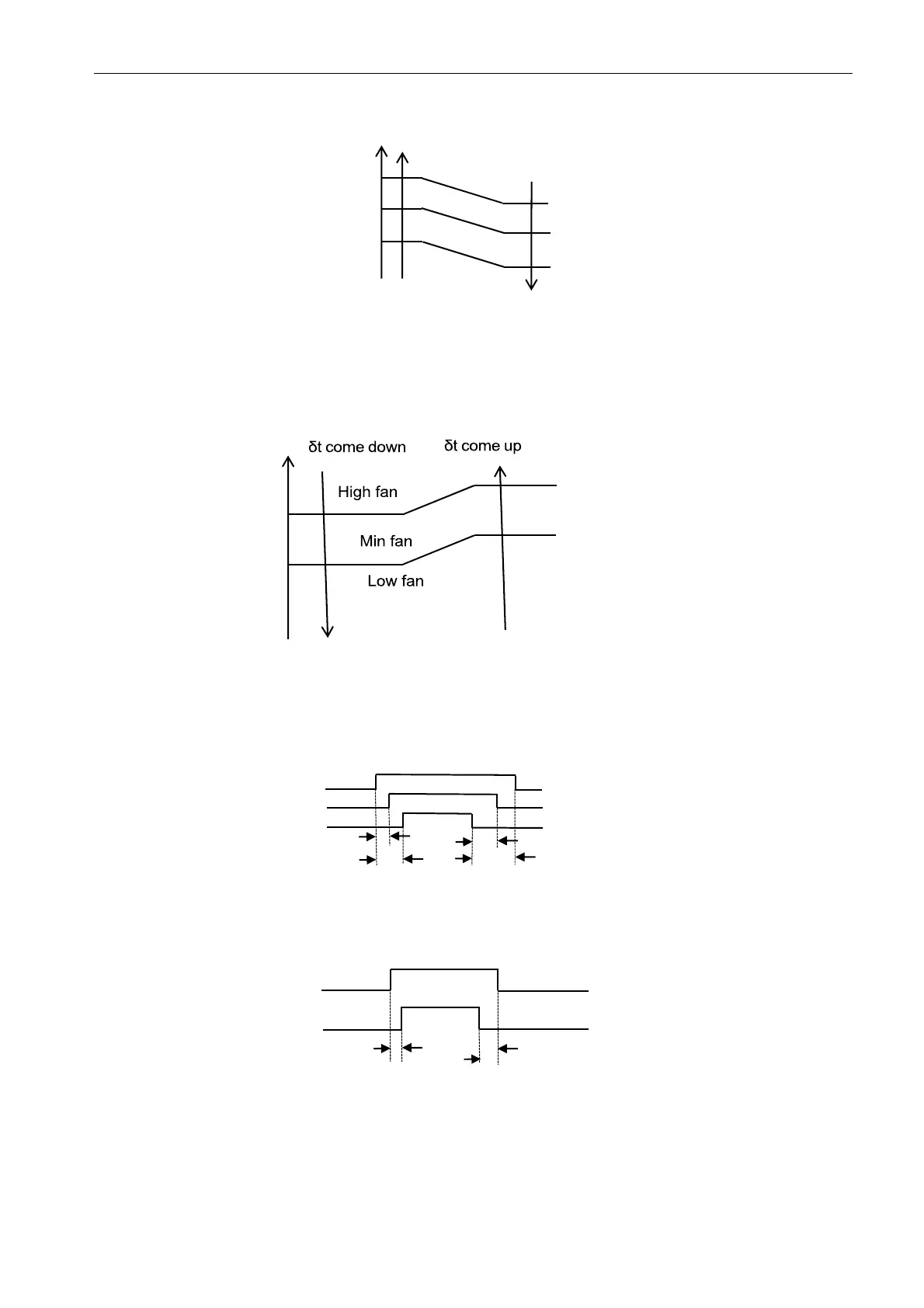

2) Auto fan control (heating)
In heating mode (include in “feel” mode) , fan speed is determined by
δt as the following:
(3) 4-way valve control
In h
eating mode, 4-way valve will power on ahead of compressor for 8 seconds, and cut off
for 2 minutes later than compressor. 4-way valve will not power off unless the machine to be
switched off, mode changed or on the process of defrosting.
(4) Outdoor fan motor control
In heating mode, the outdoor fan motor will power on ahead of compressor 5 seconds, and
cut off for 30seconds later than compressor.
(5) Defrosting
Defrosting is controlled by the microprocessor.
When the unit operate 30 minutes accumulated and the compressor operation more than 3
minutes continuously, one of the following conditions is satisfied, unit comes into defrosting:
a.
When FrostDeg ≥ -5℃, and OPT ≤ -5℃, the .2 times defrosting interval time is 45 minutes.
b.
When -10℃≤ FrostDeg < -5℃, and OPT < FrostDeg , the .2 times defrosting interval time is
45 minutes.
RT‐ST
℃
Breeze
Temperature up
Temperature down
Setting
Low fan
Stop
37℃
33
℃
25
℃
33℃
25℃
20℃
4.0
3.0
1.5
1.0
Indoor pipe Temperature
3S
5S
30S
120S
ON
OFF
OFF
OFF
4-WAY valve
Outdoor fan motor
Com
resso
5S
30S
ON
ON
OFF
OFF
Outdoor fan motor
Com
resso
