TCL Air Conditioner Service Manual
5
3. Electric Diagram

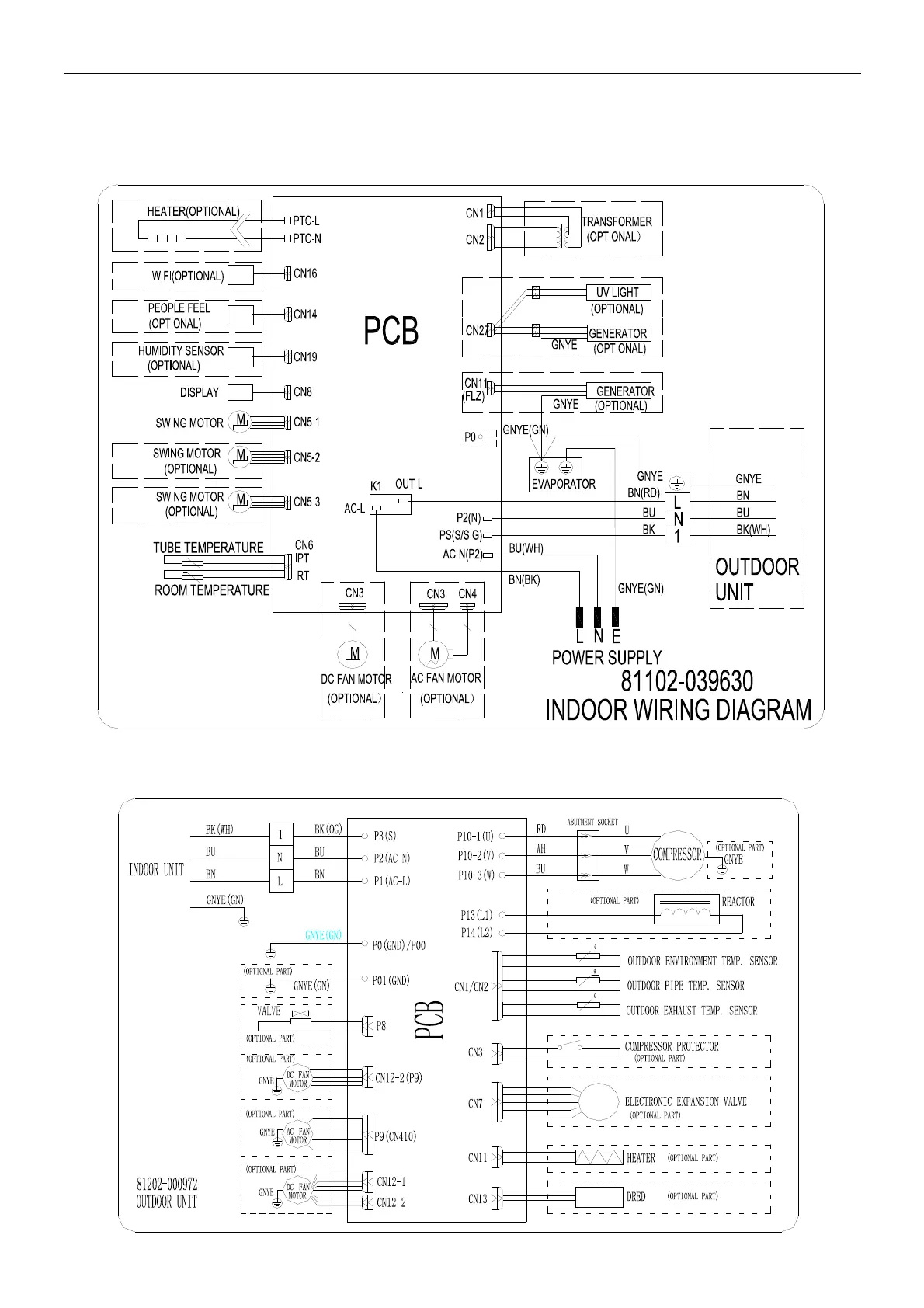

3.1 Wiring diagram
INDOORUNIT：TAC-09CSD/XA81I TAC-12CSD/XA81I
OUTDOOR UNIT: TAC-09CSD/XA81I TAC-12CSD/XA81I
EEV
