TCL TAC-18CSD/XA81I

TCL Air Conditioner Service Manual

62



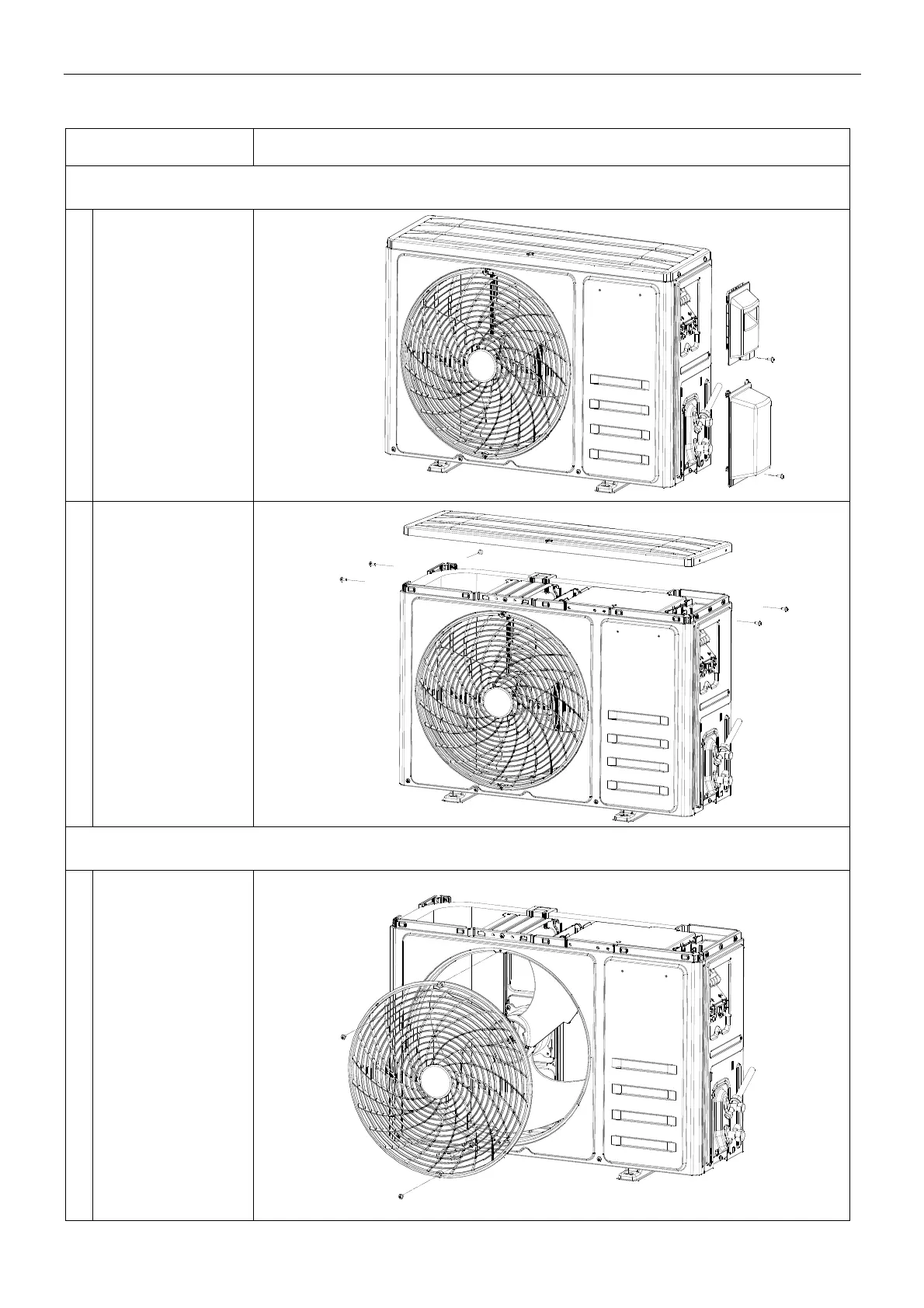

4.2 ODU Assembly
Step Reference picture
step1：Remove the PCB Cover , valve Cover and top cover
A
1). Unfix one screw
on the PCB cover,
you can take the
cover out from unit.
2). Unfix one screw
on the valve cover,
you can take it out
easily.
B
Unfix screws btw the
top cover with front
panel, left and right
plate, then you can
take the top cover
out.
step2：Disassemble the Fan Guard and Front Panel
A
Unfix screws on
front panel with fan
guard.
