TCL TAC-18CSD/XA81I

TCL Air Conditioner Service Manual

59



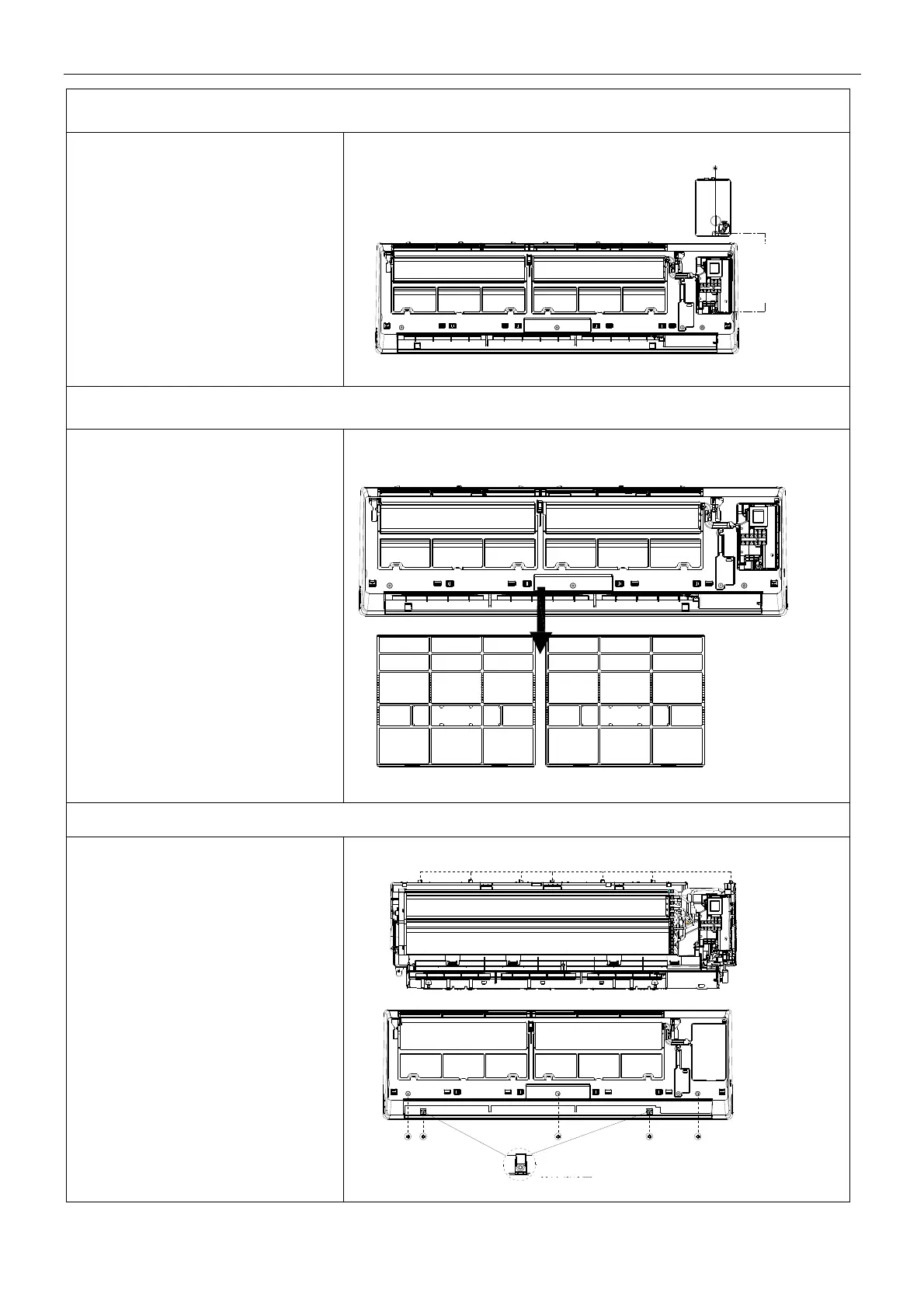

4.Removetheelectriccontrolboxcover
Unfix one screw on the cover of
electricbox,andremovethecover.

固
定
螺
钉

5.Removethefilter
Pushthefilterupwardsalittle,youcan
takeitoutfromunit.




6.Disassemblythemiddleframe.
A. Open the screw cover, and unfix
screwwithcrossscrewdriver.

B. Remove the middle frame by
loosing the clasps with the unit
baseasshowninthepictureand
taketheframeout.




打开螺钉盖
插扣



The 
Fix
screw
Clasps
Screwcovers
