TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
105

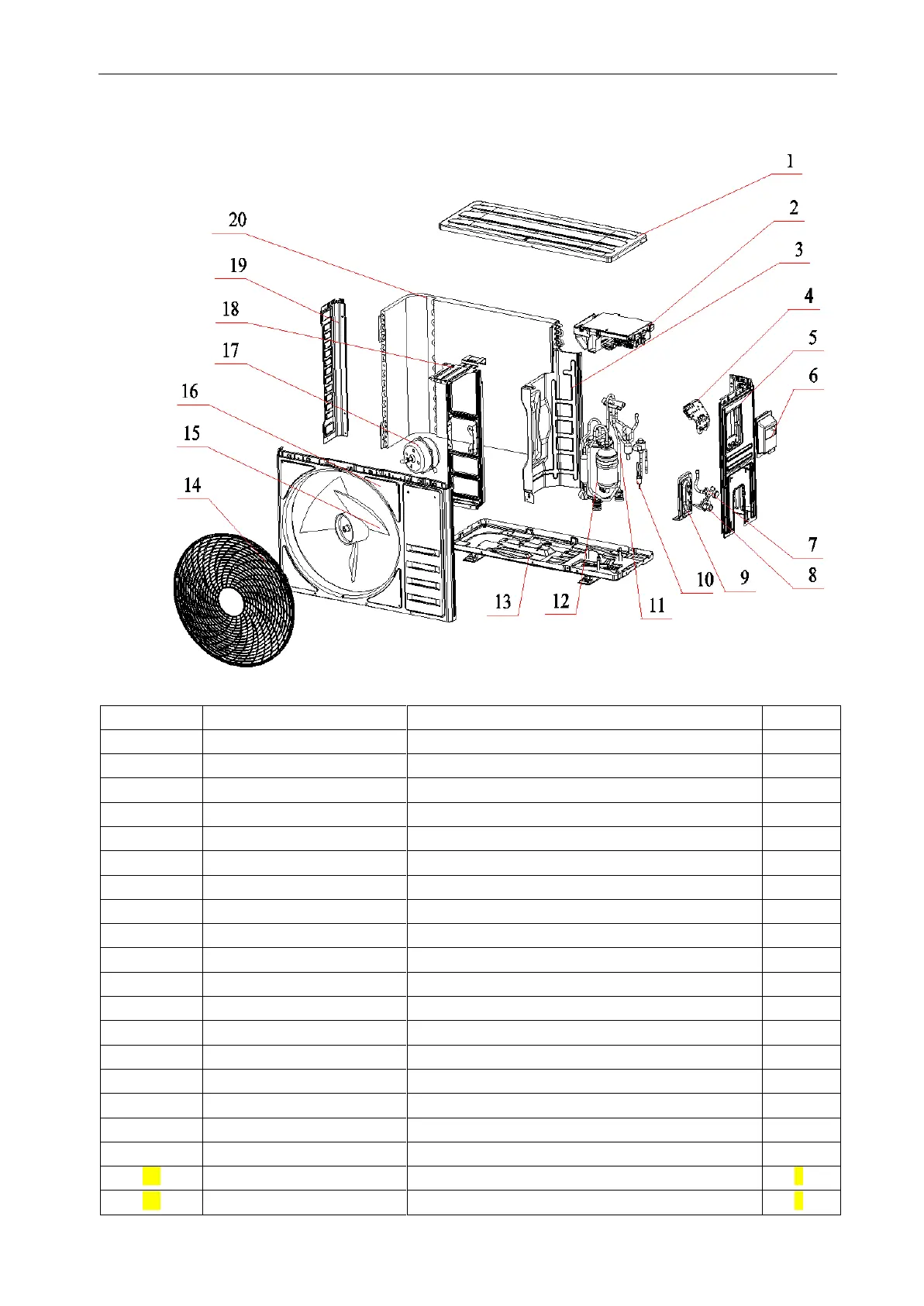

4. Exploded View and Parts List
4.1 Outdoor Unit
■ Model: TCC-12HH/DVO(02),TCC-18HH/DVO(02)
No.
Part No.
Part Name
Q’ty
1
41207-000033
Top cover
1
2
32099-040530
Electrical box components
1
3
41208-001054
Middle partition
1
4
45006-001538
Electric box installation plate
1
5
41205-000870
Right side panel
1
6
41201-000015
Handler
1
7
92007-001041
Stop valve assembly
1
8
92007-018937
Stop valve assembly
1
9
41204-000020
Valve plate
1
10
92007-019526
Electronic expansion valve assembly
1
11
92007-018992
Four way valve module
1
12
92014-000929
Compressor
1
13
41202-000524
Chassis components
1
14
42011-000090
Air outlet grille
1
15
42004-000245
Axial flow fan
1
16
41206-000211
front panel
1
17
22001-000493
Axial fan motor
1
18
41203-000052
Motor support
1
19
41205-000119
Left side panel
1
20
95003-004369
Condenser components
1
