TCL U-MATCH-R32 Series

114
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL

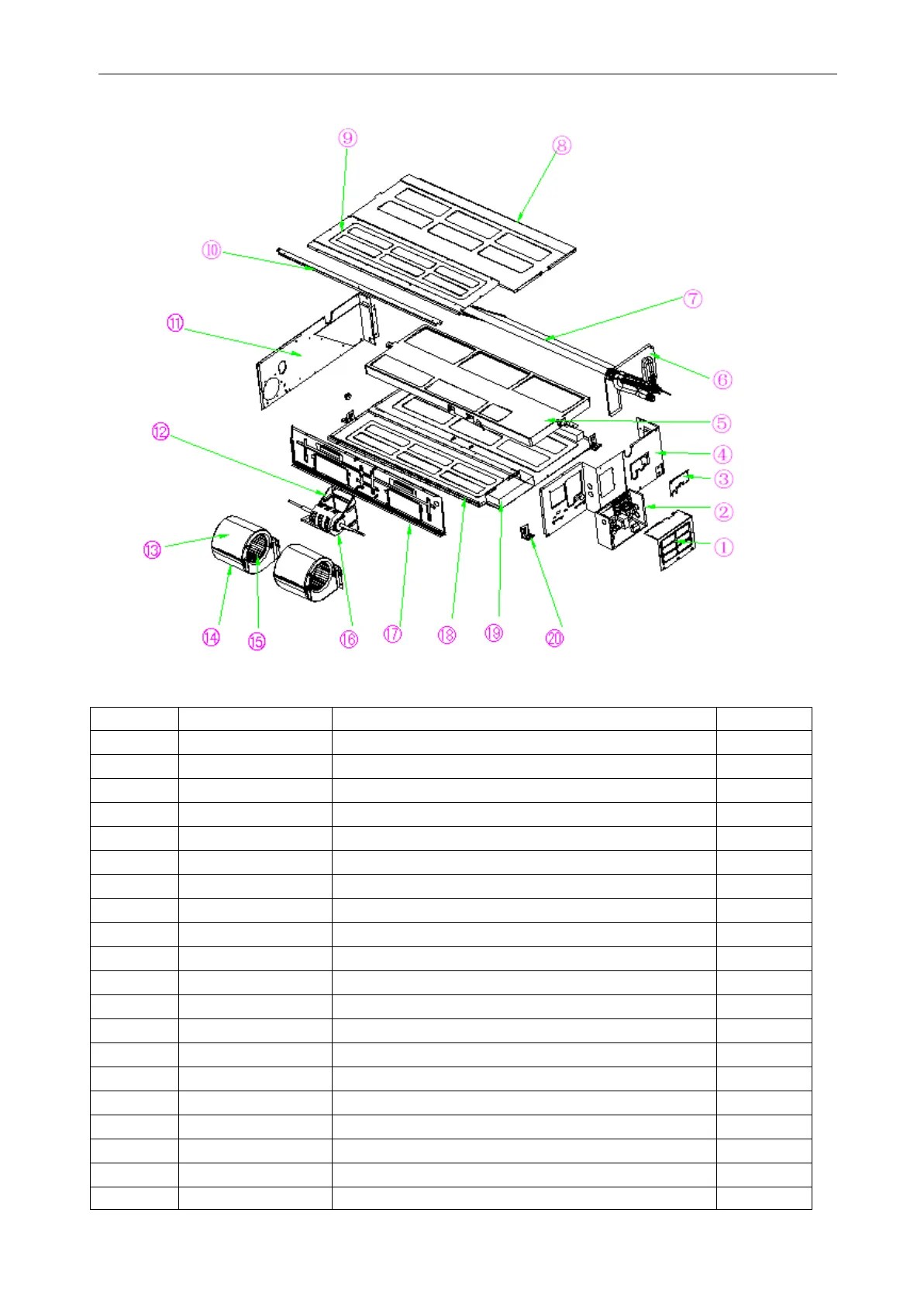

■ Model: TCC-36D2HWH/DVI(02)
No
New Code
Part Name
Q'ty
1
45006-000064
Electronic box cover
1
2
45006-001509
Electronic box
1
3
46101-000149
Input and output pipe sealing plate assembly
1
4
45003-000114
Right plate assembly
1
5
45011-000082
Drain tray assembly
1
6
45014-002547
Evaporator sealing plate assembly
1
7
95003-004600
Evaporator subassembly
1
8
46101-000114
Base plate
1
9
45008-000164
Air inlet plate
1
10
45008-000142
Air inlet bar
1
11
45003-000146
Left plate assembly
1
12
45005-000256
Supporter for fan motor
1
13
45008-000299
Up volute casing
2
14
45008-000300
Down volute casing
2
15
45009-000005
Indoor fan
2
16
25001-000022
Indoor fan motor
1
17
46101-000118
Median plate
1
18
46101-000046
Top cover
1
19
45014-002883
Hook base
1
20
45014-002175
Hook
4
