TCL U-MATCH-R32 Series

117
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL

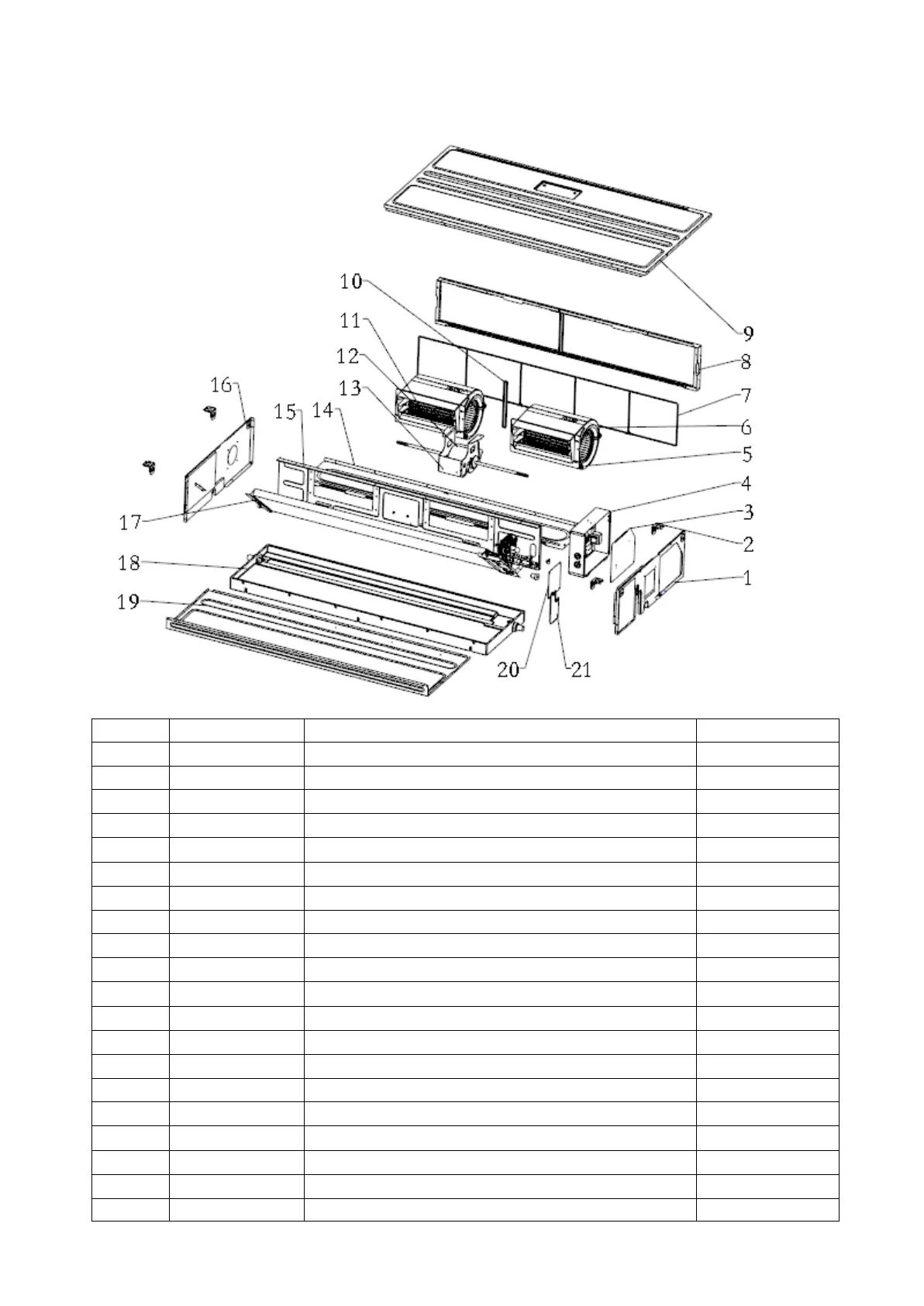

◼ Model: TCC-55D2HWH/DVI(02)
No
New Code
Part Name
Q'ty
1
45003-000319
Right side panel components
1
2
46101-000263
Hook
4
3
45006-001303
Electric control box cover
1
4
35004-001854
Electric control box component
1
5
46101-000330
Upper volute
2
6
46101-000331
Lower volute
2
7
45014-005396
Filter screen component
1
8
45002-000325
Filter frame component
1
9
46101-000337
Top panel components
1
10
46101-000329
Support strip
1
11
45009-000105
Centrifugal fan
2
12
25001-000442
Brush-less DC motor
1
13
46101-000327
Motor bracket
1
14
45004-000536
Bottom plate assembly 1
1
15
45014-005046
Middle partition component
1
16
45003-000318
Left side panel components
1
17
95003-004622
Evaporator components
1
18
45011-000020
Water tray components
1
19
46101-000308
Water pump partition assembly
1
20
45014-004811
Water pump partition assembly
1
