TCL U-MATCH-R32 Series

119
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL

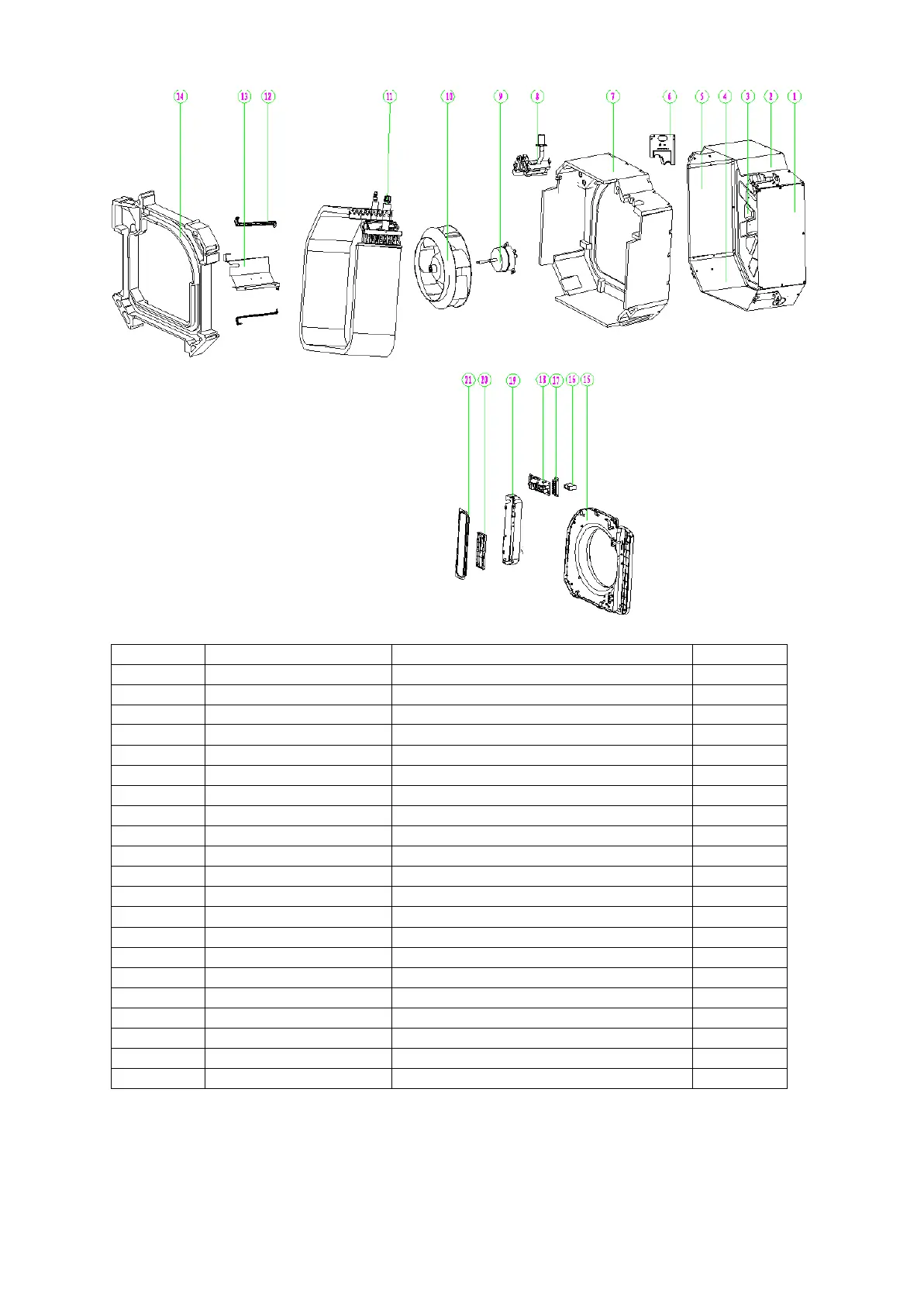

Model: TCC-24CHRH/DVI(02)
No.
Part No.
Part Name
Q’ty
1
45901-000103
Left and right fender components
1
2
45901-000089
Cowl panel assembly
1
3
45004-000537
Chassis components
1
4
45901-000091
Rear Shroud Assembly
1
5
45901-000103
Left and right fender components
1
6
45901-000035
Outlet sealing plate components
1
7
45004-000325
Base foam parts
1
8
45014-003541
Water pump components
1
9
25001-000429
Brush-less DC motor
1
10
45009-000076
Centrifugal fan
1
11
95003-004601
Evaporator components
1
12
46301-000171
Evaporator fixing hook
2
13
95003-001605
Evaporator fixing plate components
1
14
45011-000120
Water tray components
1
15
45008-000336
Relay
1
16
25006-000137
Terminal blocks
1
17
11304-100000
Indoor PCB
1
18
35004-001819
Electric box
1
19
45006-000399
PCB installation box
1
20
45901-000098
Electric box cover
1
21
35001-000374
Terminal blocks
1
