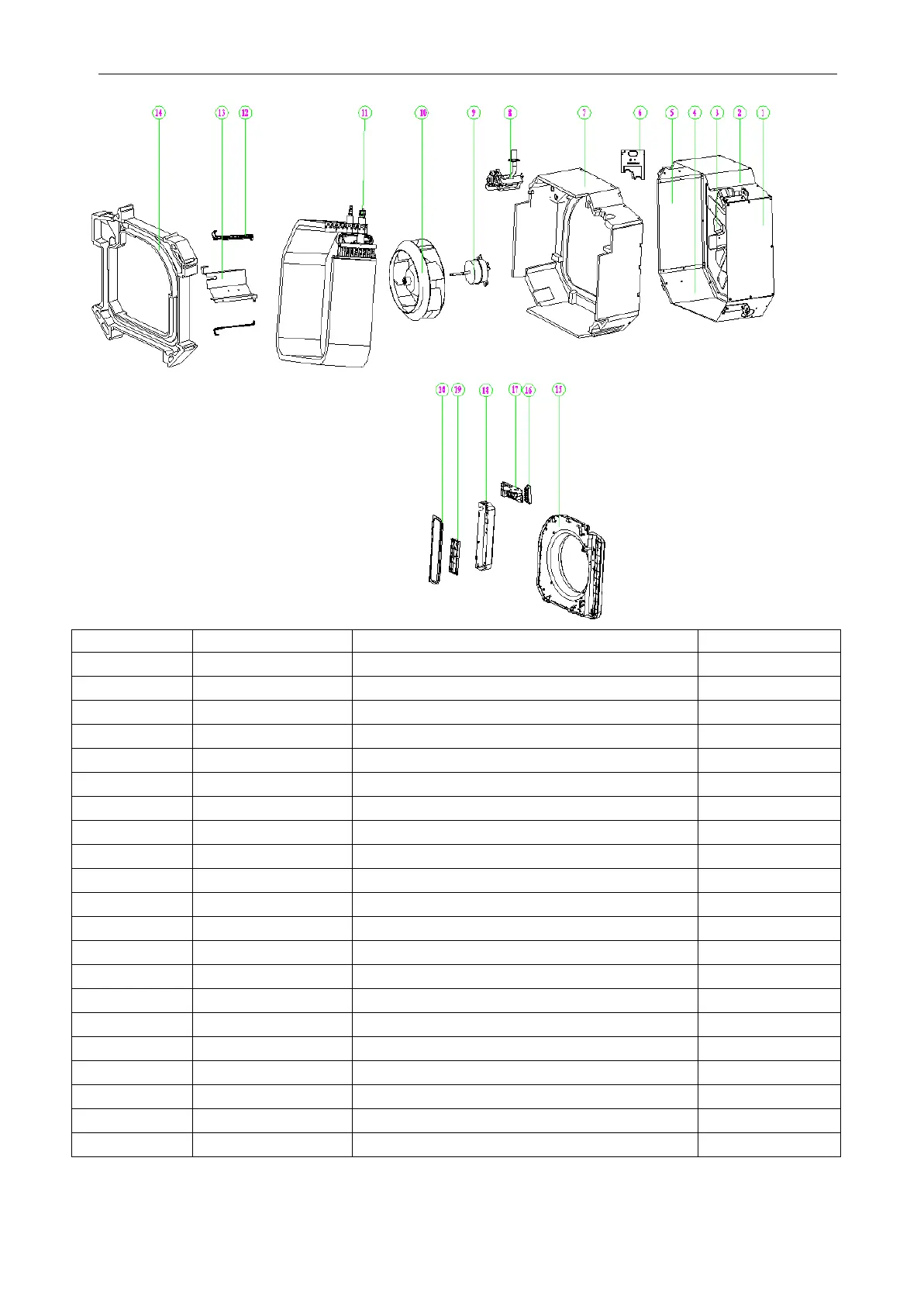

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
Model: TCC-48CHRH/DVI(02)
No
New Code
Part Name
Q'ty
1
45901-000102
Left and right surround plate assembly
1
2
45901-000092
Front coaming assembly
1
3
45004-000537
Base
1
4
45901-000095
Back surround plate assembly
1
5
45901-000102
Left and right surround plate assembly
1
6
45901-000035
Outlet tube sealing plate assembly
1
7
45004-000326
Base foam
1
8
25006-000104
Electromagnetic water valve
1
9
25001-000337
Dc motor
1
10
45009-000053
Centrifugal fan
1
11
95003-004637
Evaporator subassembly
1
12
45014-004720
Evaporator hook
2
13
45010-000247
Evaporator fixing plate assembly
1
14
45011-000120
Water pan assembly
1
15
45008-000369
Lead flow circle
1
16
35005-000114
Terminal
1
16.1
35005-000074
Terminal
1
17
35004-001819
Indoor control panel
1
18
45006-000399
Electrical box
1
19
45901-000098
Control the lid
1
20
35001-000374
Electric control box cover
1
