TCL U-MATCH-R32 Series

124

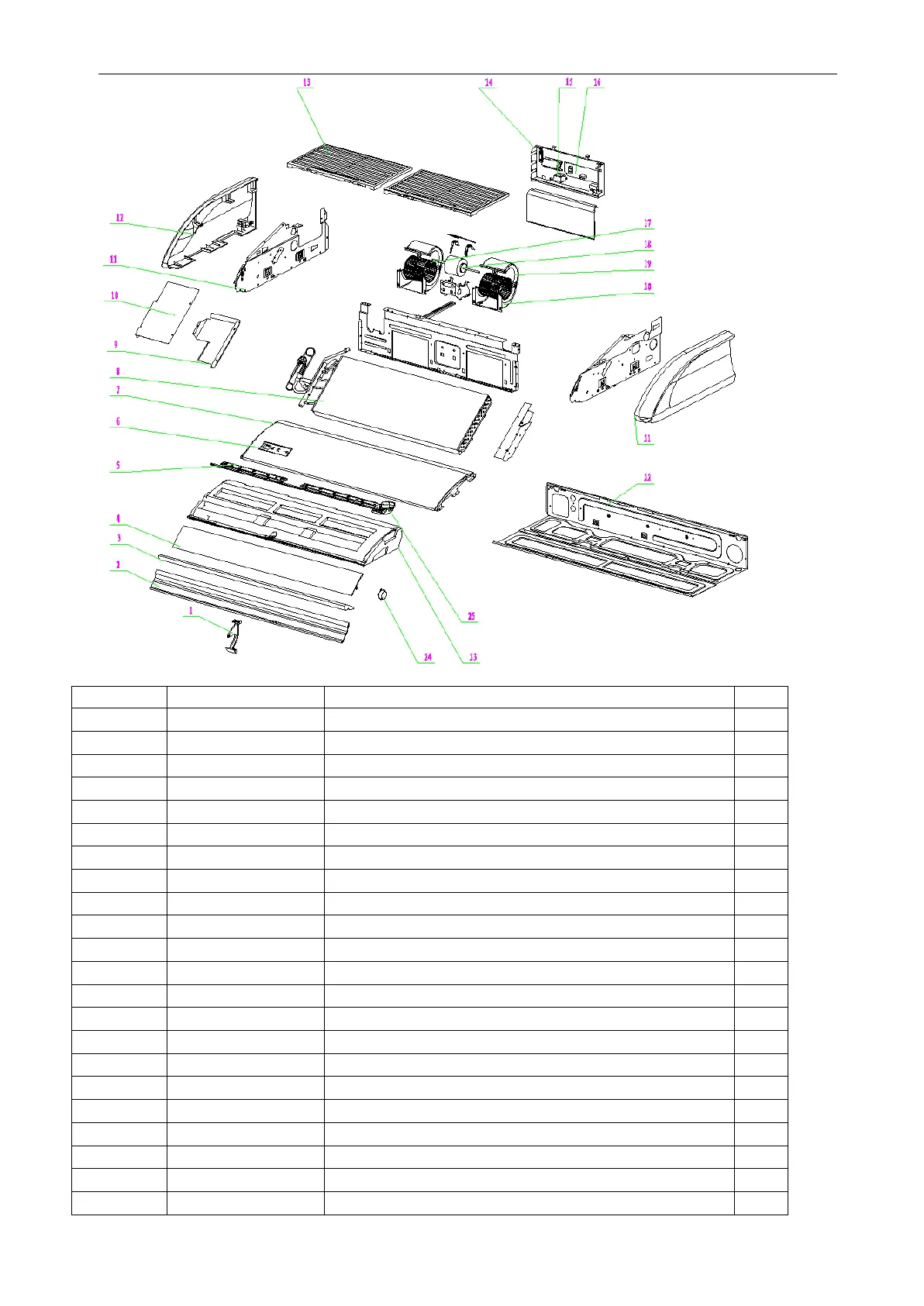

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
No
New Code
Part Name
Q'ty
1
45008-000217
Air duct support
1
2
45008-000178
Air outlet bottom plate
1
3
45008-000282
Tuyere foam
1
4
45008-000234
Air guide plate
1
5
45801-000076
Blade Assembly
1
6
45801-000019
Display light box
1
7
45013-000078
front panel
1
8
95003-004394
Evaporator components
1
9
45801-000039
Lower right sealing component of evaporator
1
10
45801-000105
Upper right sealing component of evaporator
1
11
45003-000202
Right side panel assembly A
1
12
45014-002001
Right block
1
13
45014-002551
Air intake grille assembly
1
14
45006-001403
Electric control box component
1
15
25006-000137
relay
1
16
35004-001826
Indoor control panel
1
17
45009-000015
Centrifugal fan
2
18
25001-000196
Dual axis motor
1
19
45008-000120
Wind turbine upper volute
2
20
45008-000153
Wind turbine lower volute
2
22
45003-000044
Left block
1
23
45004-000021
Chassis components
1
