TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
30

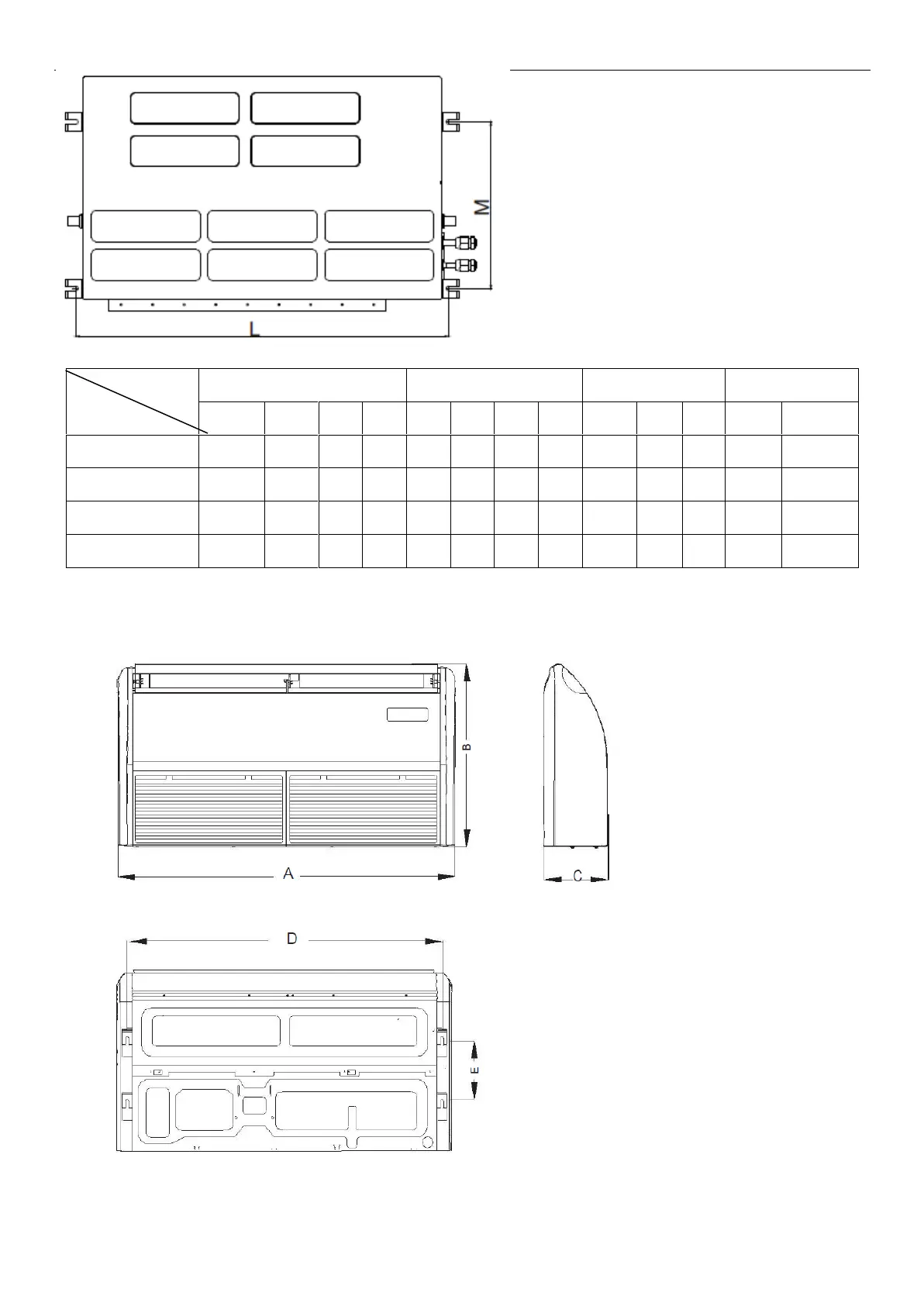

Dimension
Capacity
Outline dimension
Air outlet opening size
Air inlet opening size
Size of mounted lug
A
B
C
D
E
F
G
H
I
J
K
L
M
12/18K
920
2100
635
570
65
713
35
119
815
197
36
958
427
24K
920
2700
635
570
65
713
35
179
815
260
36
958
427
30/36K
1140
270
775
710
65
933
37
175
1034
260
36
1178
541
42K/48K/55K
1400
250
720
700
150
1350
15
170
1300
220
20
1440
650
