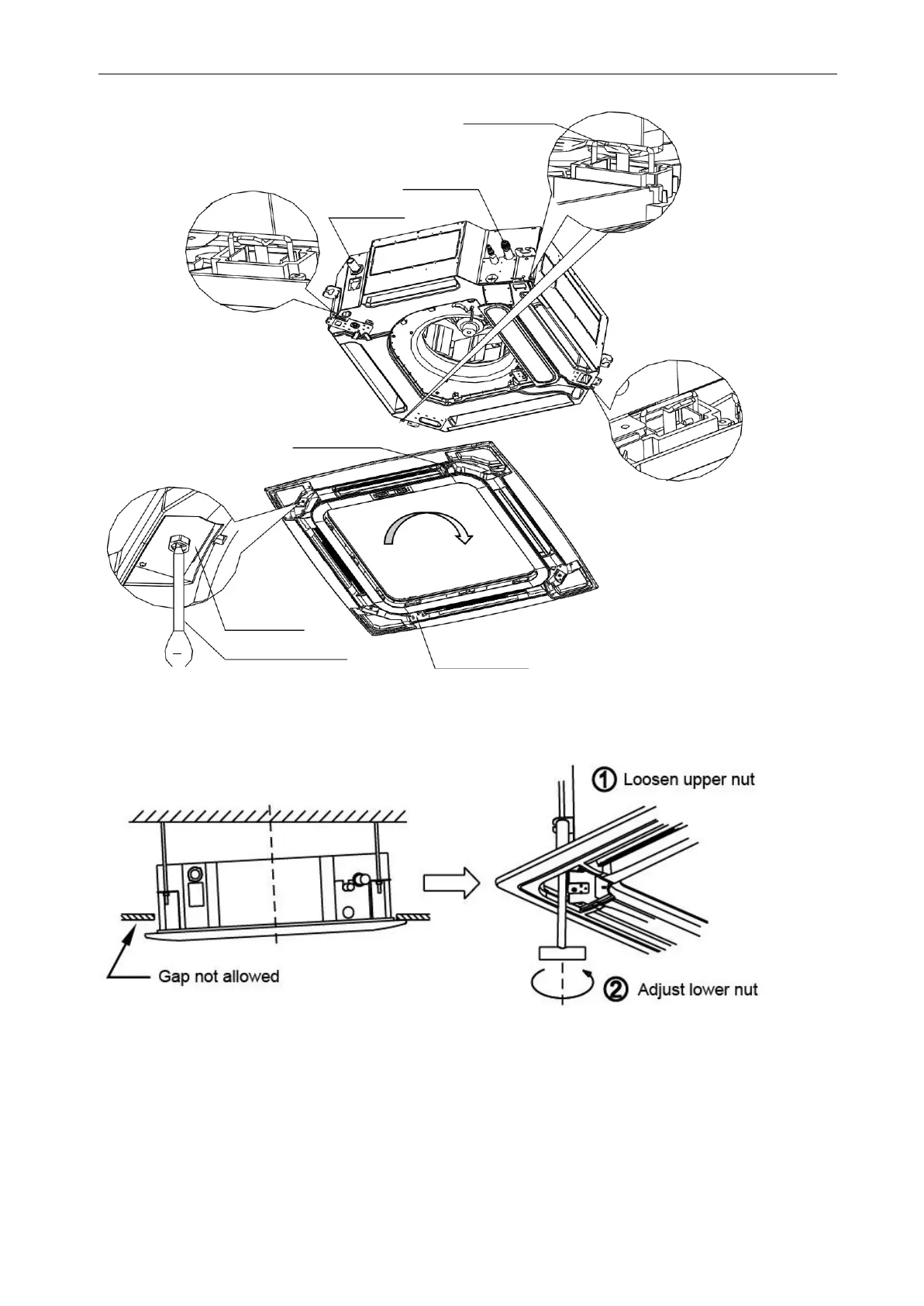

Tighten the screws under the panel hooks till the panel closely stick on the ceiling to avoid
condensate water.
Hook panel
①
②
Tubing joint
Outlet joint
②
Swing Motor
③
④
Hook-book
Cross-screwdriver
Swing Motor
